OPERATOR'S GUIDE
Infusion Workstation
Introduction

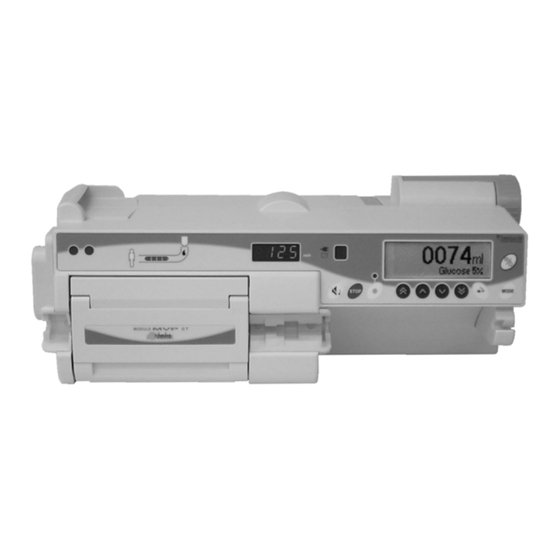

Great care has been taken in the design and manufacture of the Module
®
MVP ST Orchestra
, a volumetric infusion device.
According to the number of intravenous infusions needed, at any
combination, up to 8 Module DPS (or Module MVP) can be fitted onto the
®
Base Intensive Orchestra
or Base A Orchestra
The configuration flexibility of Orchestra
the working conditions of medical teams, thus increasing patient safety.
The use of this material requires great care. The user must be able to
handle the instrument properly and must know how to fully operate.
Please read the operator's guide carefully before putting the device into
use. Please refer to the Base A Orchestra
Guides, prior to any use of Modules with a Base.
Module MVP
®
.
®
provides overall improvement in
®
or Base Intensive Operator's

Table of contents


1.
Operations for use ........................................................................ 2

2.
Advanced functions ...................................................................... 4

3.
Module MVP - Internal safety features ........................................ 7

4.
Module MVP - Performances...................................................... 10

5.
Module MVP - Technical characteristics ................................... 11

6.
Configuration menu .................................................................... 13

7.
Intended Use................................................................................ 15

8.
Precautions to be taken .............................................................. 15

9.
environment ........................................................................................... 16

10.
Maintenance recommendations ................................................ 18

11.
Function with the internal battery ............................................. 19

12.
Accessories ................................................................................. 20

13.
Disposable ................................................................................... 21

14.
Conditions of guarantee ............................................................. 22

15.
Useful addresses ........................................................................ 24
ST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the rchestra Module MVP ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fresenius Kabi rchestra Module MVP ST

  • Page 1: Table Of Contents

    OPERATOR’S GUIDE Infusion Workstation Module MVP Table of contents Introduction   Operations for use ................ 2 Great care has been taken in the design and manufacture of the Module   Advanced functions ..............4 ® MVP ST Orchestra , a volumetric infusion device.  ...
  • Page 2: Operations For Use

    1. Operations for use 1.2.2. Purge of the set used with a bottle 1.1. Installation of the Module MVP Introduce the spike right down into the bottle on the Base (roller clamp open, air inlet closed). Close the roller clamp. Special attention must be paid to the stability of the Base when Hang the bottle upside down then press the drip chamber in order to several Modules MVP are used on a Base.
  • Page 3 1.4. Infusion setting 1.5. Information during infusion Mains power operation / Alarm status (red) Battery power operation 1.4.1. Setting with flow rate only Prealarm status (orange) Module position Flow rate (ml/h) Infusion mode type ml/h Select the flow rate with Drop indicator (speed related to flow rate Open the roller clamp.
  • Page 4: Advanced Functions

    2. Advanced functions When activated in the configuration menu, all advanced functions can be reached by pressing Then, press to reach required item and to enter desired screen. Pressure Loading dose Bolus Bolus Total volume Ramp up / Down Secondary Secondary Bat.autonomy Sequential...
  • Page 5 2.5. Secondary infusion 2.8. Loading dose This programming mode enable the infusion of a secondary line This infusion mode enables the delivery of a volume (e.g. loading dose) placed above, automatically followed by the infusion of a primary automatically followed by the delivery of the primary infusion. bag placed below.
  • Page 6 2.10. Sequential programming 2.11. Micro Infusion Flow Rate From 1 up to 20 infusion sequences can be defined in volume to When the micro infusion flow rate is activated (see Configuration infuse and rate of infusion. Pause periods (Stop) or KVO periods menu), a decimal digit is displayed both for flow rate and for volume.
  • Page 7: Module Mvp - Internal Safety Features

    3. Module MVP - Internal safety features Module MVP as well as Base have a continuous inspection system which functions as soon as the pump is in use. Any internal failure or anomaly detected will be immediately displayed. Nevertheless, the qualified personnel in your establishment or our After-Sales Department should always be notified of any abnormal function where no specific cause can be found.
  • Page 8 Message on LCD display Meaning Causes Actions to do  Upstream occlusion Alarm. Upstream pressure in line is Check container. Occlusion Occlusion Infusion stops. too low. Check roller clamp.  Empty bag. Check container height.  Roller clamp closed. Check air inlet cap (if bottle is used). ...
  • Page 9 3.2. Quick check This test is recommended or mandatory (in case of in-force law). It allows a complete alarm and safety features check of the Module MVP ST (no patient connected). Serial numbers (ID/N): Module MVP ST_______________________________ Base A _______________________________ Base Intensive _______________________________ Date: _____ / _____ / _____ Department...
  • Page 10: Module Mvp - Performances

    4. Module MVP - Performances 4.1. Flow rate available from 4.8. Change set interval keyboard selection Fresenius Intradrop Diabolo sets should not be used more than 60 hours and/or a total volume of 6 liters (check local protocols). From 1 to 1500 ml/h, 1 ml/h increment. 4.9.
  • Page 11: Module Mvp - Technical Characteristics

    5. Module MVP - Technical characteristics 5.1. External power supply via the Symbols Base or Mainy Mod The operator's guide should be completely read prior to use the device 7.2 Volts DC mini - Power  6 Watts (normal Continuous voltage consumption) 10 Watts maximum.
  • Page 12 5.7. Curves Trumpet curves demonstrate the evolution of the minimum and maximum variance of the PUMP / SET combination versus flow rate. The test protocol used to obtain these results is described in the EN 60 601-2-24: 1998. For further information, please refer to this publication.
  • Page 13: Configuration Menu

    6. Configuration menu Fresenius Kabi recommends the presence of its qualified personnel or of a member of the Technical Department of your establishment to help you implement the configuration procedures you wish to choose. Note: press to cancel modification at any time - Press OFF to leave configuration mode at any time.
  • Page 14 6.3. Ward setting Ward setting Enter code with , and confirm by pressing (pre-set code is 200). Ward setting Select required item with ., and enter in required item by pressing Code Ward name Select desired letter with . Shift to next letter with Rea-Cardio ----- Confirm setting by pressing...
  • Page 15: Intended Use

    EN 60 601-1: 1990 A1 A2. device. Fresenius Kabi will not be liable for any damages or claims, medical Do not exceed the permitted voltage on the different external connections. or otherwise, of any nature whatsoever, whether direct or During the change of the infusion parameters, if the user does not confirm consequential, caused by improper use of this device.
  • Page 16: Guidance And Manufacturer's Declaration On Electromagnetic Environment

    9. Guidance and manufacturer's declaration on electromagnetic environment The Module MVP ST has been tested and found to comply with the applicable standards for electromagnetic Compatibility for Medical Devices. These standards are designed to provide adequate immunity to prevent undesirable operation of the Module MVP ST , as well as a limitation of emissions from the device that may cause undesirable interference to other equipment.
  • Page 17 9.3. Guidance and manufacturer’s declaration – Electromagnetic immunity - TABLE 204 The Module MVP ST is intended for use in the electromagnetic environment specified below. The user of Module MVP ST should make sure it is used in such an environment. IEC 60601-1-2 Compliance level Immunity test...
  • Page 18: Maintenance Recommendations

    They lead to tarnishing of and small cracks in the plastic, Fresenius Kabi is not liable for loss or damage to the device during and do not provide the necessary cleaning prior to disinfecting. transport to our After-Sales Department.
  • Page 19: Function With The Internal Battery

    11. Function with the internal battery The Module MVP and the Base contains an internal battery which automatically takes over when the mains supply is disconnected and ensures normal function with no loss of the programmed data. Operation from the battery is visualised by the battery indicator on Module.
  • Page 20: Accessories

    12. Accessories ® Fresenius Kabi recommends the use of Orchestra Infusion Workstation range accessories. Multifix 4 - Cat # 073804 Fresenius Kabi recommends the use of the Multifix 6 - Cat # 073809 RS232 lead ref. 073413 (9m/9f) or 073414 Multifix 8 - Cat # 073805 (9m/25f).
  • Page 21: Disposable

    13. Disposable Fresenius Kabi recommends the use of the following set ranges: Fresenius Intradrop Diabolo, MCM 500, Braun Infusomat Leitung. Fresenius Intradrop Diabolo and MCM 500 set ranges are made of biocompatible plastic materials. Always make sure the set type being used with the pump corresponds to the one selected on the device.
  • Page 22: Conditions Of Guarantee

    14. Conditions of guarantee Fresenius Kabi guarantee that this product is free from defects in material and workmanship during the period defined by the conditions of sale accepted , except for the batteries and accessories. To benefit from the materials and workmanship guarantee from our After-...
  • Page 23 Notes 1310-4_nu_module_mvp_st_eng_140128.doc - 23 -...
  • Page 24: Useful Addresses

    As standards and equipment change from time to time, the features shown and described in this document must be confirmed by our departments. This document may not be reproduced in whole or in part without the written consent of Fresenius Kabi. ®...
