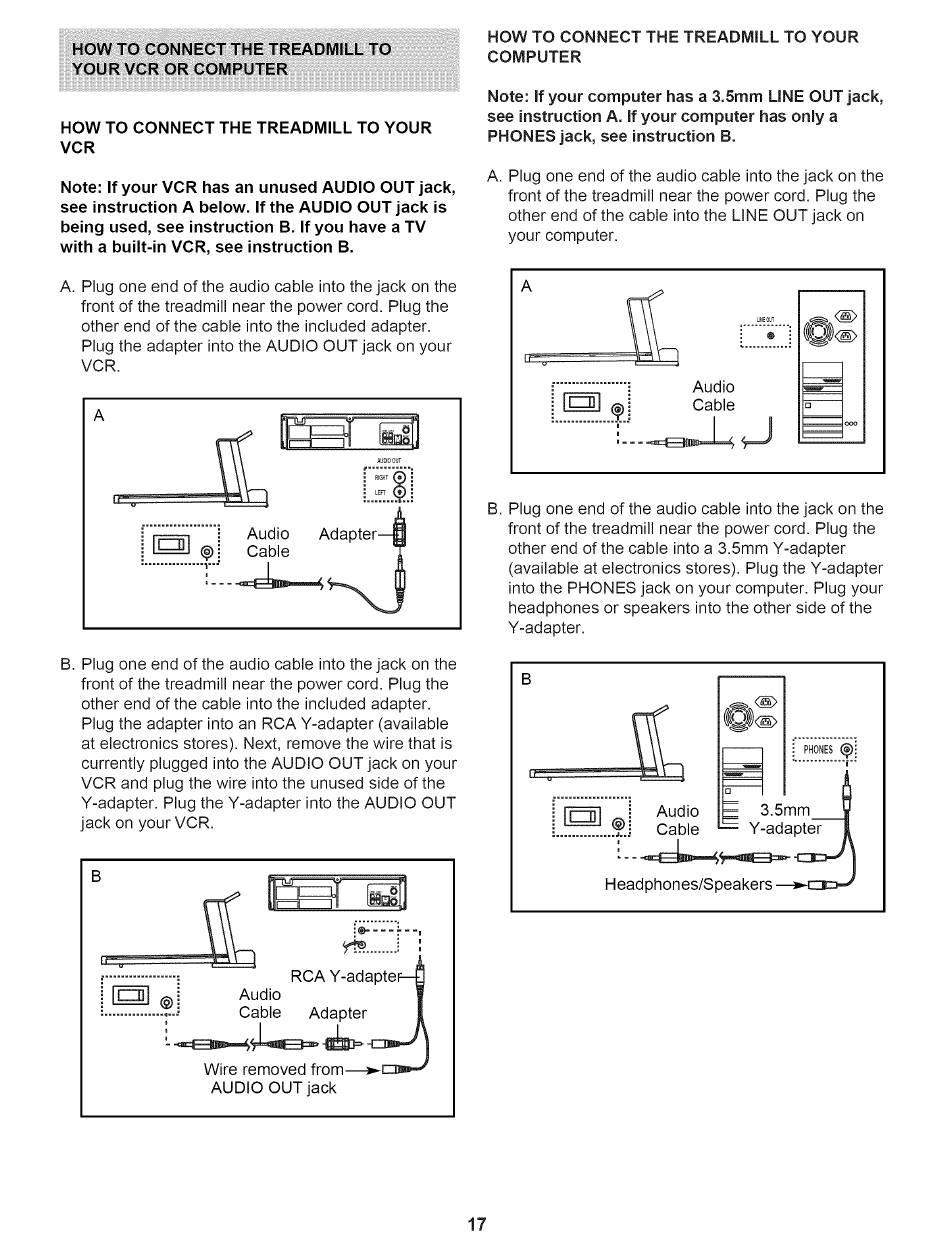

HOW TO CONNECT THE TREADMILL TO YOUR
VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
A
AUDIOOUT
'";;;T .......
LEFT
_"_ .......i Audio Adapter-_
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y=adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y=adapter. Plug the Y=adapter into the AUDIO OUT
jack on your VCR.
B
:.................. ! RCA Y-adapter---_J
i[-_-] _i Audio
.............. . _." Cable Adapter_
Wire removed from-_,_
AUDIO OUT jack
HOW TO CONNECT THE TREADMILL TO YOUR
COMPUTER
Note: If your computer has a 3.Smm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
A
L_E0OT
=ei
..................." Audio
_i Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y=adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
B
=
_@i Audio
.................... Cable
PHONES ( _i
"----------4
=
3.5mm
=
= Y-adapter
Headphones/Speakers
17
