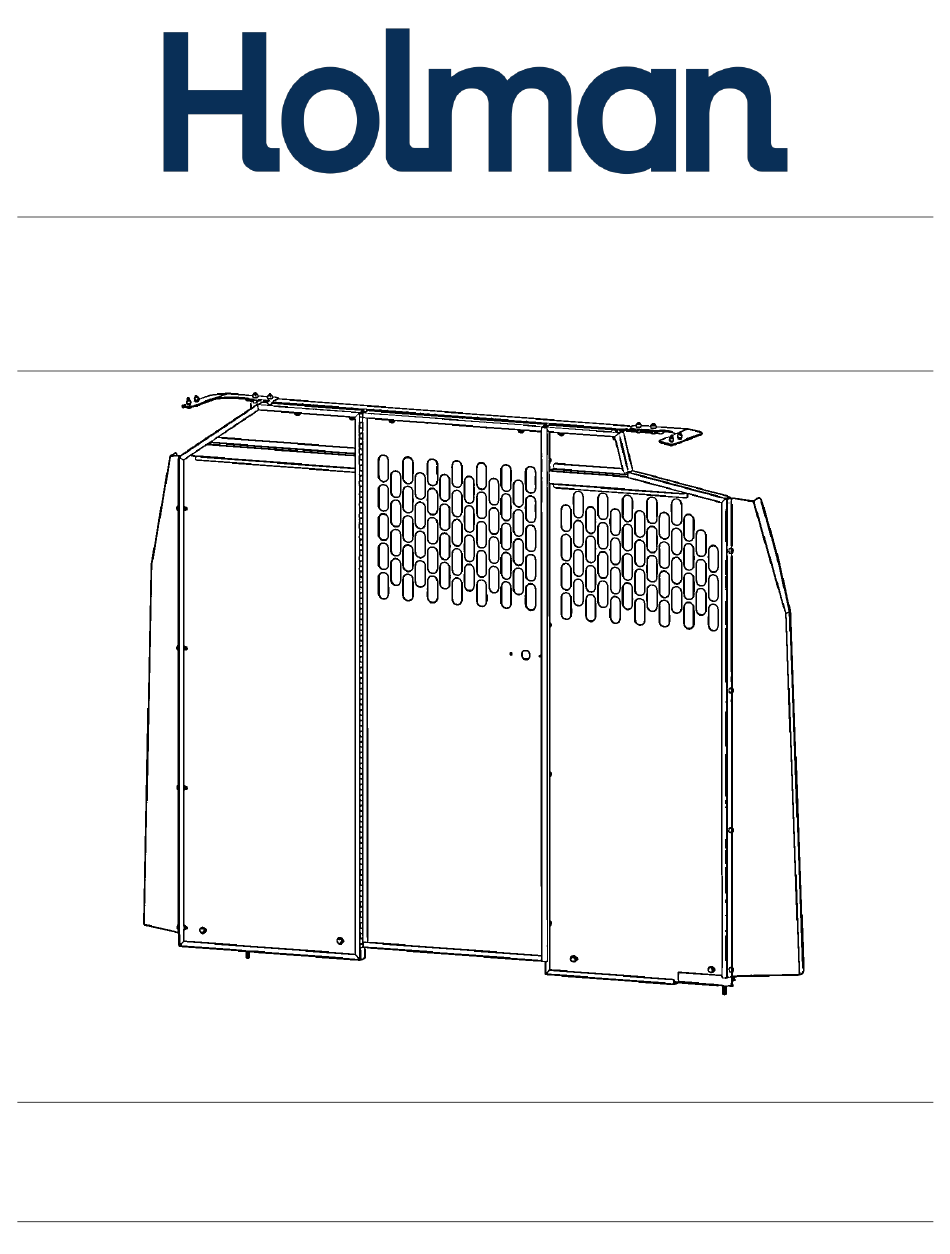

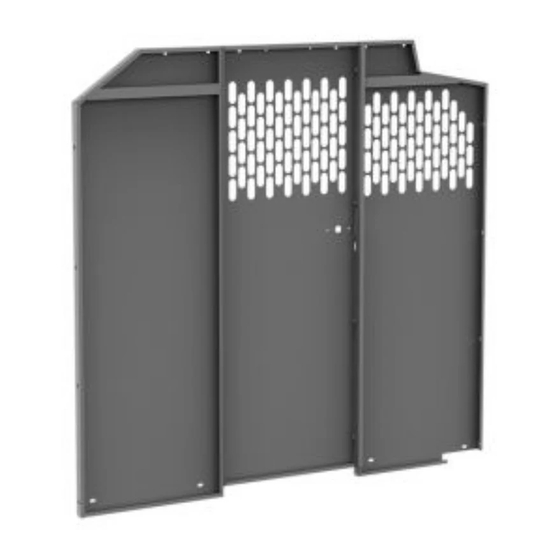

Instruction Guide
406GM
*Partition sold seperately.
Holman
Rancho Cordova, CA 95742
800-343-7486
InstallationSupport@Holman.com
202207011R4
DATE: ________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 406GM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Holman 406GM

Summary of Contents for Holman 406GM

  • Page 1 Instruction Guide 406GM *Partition sold seperately. Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 202207011R4 DATE: ________________...

  • Page 2: Table Of Contents

    Instructions – 406GM PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT. Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products.

  • Page 3: Parts List

    Instructions – 406GM Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2...

  • Page 4: Hardware

    Instructions – 406GM Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3...

  • Page 5: Step 1 - Attach Side Wings

    Instructions – 406GM Step 1 – Attach Side Wings  Bolt both wings to the outer edges of partition in the orientation shown using 1/4" x 5/8” flanged hex head bolts and 1/4” flanged lock nuts. Note: The panel that has no holes, is the driver side of the partition.

  • Page 6: Step 2 - Attach Upper Mount To Partition

    Instructions – 406GM Step 2 – Attach Upper Mount to Partition  Place the upper mount against the partition assembly with the wing panels.  Bolt the upper mount to the partition in the orientation shown using 1/4" x 1/2" carriage bolt and 1/4"...

  • Page 7: Step 3 - Install Upper Corner Mounts

    Instructions – 406GM Step 3 – Install Upper Corner Mounts  Along the roof of the van, locate the mount locations behind both seats. These are above the slider door.  Evaluate the mounting locations and determine if a threaded emboss is present.
  • Page 8 Instructions – 406GM  If there is no threaded emboss on the forward most hole location, install using a M6 x 22mm hex head bolt, two 1/4” flat washers and a 1/4” lock nut in the orientation shown.  If a threaded emboss is present, attach through the front most hole location using a M6 x 22mm hex head bolt, 1/4”...

  • Page 9: Step 4 - Install Floor Mounts

    Instructions – 406GM Step 4 – Install Floor Mounts NOTE: If your vehicle does not have D-rings, skip this step and proceed to Step 5.  Behind both seats, locate the D-Rings in the floor.  Remove both D-Rings.  Align the floor mounts with the previously removed D-Rings.
  • Page 10 Instructions – 406GM  Choose the best two locations on the bottom of each outside partition panel to drill and install plus nuts.  Mark all the slots and holes in the bottom of the partition panels. *Ensure this is the location of...

  • Page 11: Step 5B - Install Partition To Floor

    Instructions – 406GM Step 5B – Install Partition to Floor  Put partition in vehicle and press partition into position.  Using four 1/4” x 1-1/4” hex head bolts, four 1/4” lock washers, four 1/4” flat washers, and if necessary, up to four nylon spacers, fasten partition to plus nuts installed into floor.

  • Page 12: Step 7 - Attach Partition To Floor Mounts

    Instructions – 406GM Step 7 – Attach Partition to Floor Mounts NOTE: If you skipped installing floor mounts in Step 4, skip this step.  Locate the four mounting locations at the bottom of the partition.  Align the four mounting holes with the previously installed floor mounts.

This manual is also suitable for:

4061gm
