EPIC SBC Supports Intel® Celeron® J6412 Processor, HDMI, DP,
iDPM, M.2 A Key, M.2 B Key, USB 3.2, SATA 6Gb/s, COM,
Dual 2.5GbE, iAUDIO, PCIe x4 for Riser Card and RoHS
Quick Installation Guide
Package List
NANO-EHL package includes the following items:

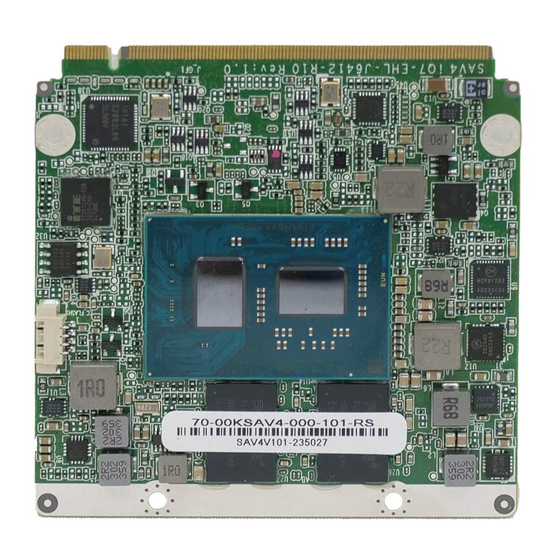

1 x NANO-EHL single board computer with heat spreader
1 x SATA cable
1 x iSATA cable
1 x Power cable
1 x QIG
NANO-EHL
Version 1.0
April 12, 2023
©2023 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Related Manuals for IEI Technology NANO-EHL
Summary of Contents for IEI Technology NANO-EHL
- Page 1 Quick Installation Guide Version 1.0 April 12, 2023 Package List NANO-EHL package includes the following items: 1 x NANO-EHL single board computer with heat spreader 1 x SATA cable 1 x iSATA cable 1 x Power cable ...
-
Page 2: Specifications
Specifications CPU: Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M cache, TDP=10W) Memory: On-board 8GB dual-channel LPDDR4x memory, up to 16GB BIOS: AMI UEFI BIOS Graphics Engine: Intel® UHD Graphics (Gen11) Display Output: Triple independent display 1 x HDMI 1.4a (up to 4096 x 2160 @ 30Hz) 1 x DP 1.4a (up to 4096 x 2160 @ 60Hz) - Page 3 Front Panel: 1 x Front panel (1x6 pin, p=2.0; power LED, HDD LED 1 x Power button connector (1x2 pin, p=2.0) 1 x Reset button (on solder side) Expansions: 1 x M.2 2230 A key (PCIe Gen3 x1 & USB 2.0) 1 x M.2 2280/2242 B key (PCIe Gen3 x2 &...
-
Page 4: Ordering Information
Ordering Information NANO-EHL-J6412C-R10: EPIC SBC supports Intel® quad-core Celeron® J6412 2.0GHz on- board SoC with 8GB LPDDR4x memory on board, HDMI, DP, iDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, iAUDIO, PCIe x2 for riser card and RoHS ... -
Page 5: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_ATX_AT1 AT/ATX power mode setting jumper J_CMOS1 Clear CMOS button (solder side) CHASSIS1 Chassis intrusion jumper J_FLASH1 Flash descriptor security override jumper AUDIO1 Audio connector for IEI AC-KIT-888S kit 12V power input connector BAT2 RTC battery connector Buzzer connector DIO1... - Page 6 External DP connector LAN1, LAN2 External 2.5GbE RJ-45 connectors USB20_CON1 External dual USB 2.0 connector USB30_CON1 External dual USB 3.2 Gen 2 connector J_ATX_AT1: AT/ATX Power Mode Setting PIN NO. DESCRIPTION Short A - B ATX Power Mode (default) Short B - C AT Power Mode J_CMOS1: Clear CMOS Button Status...
- Page 7 AUDIO1: Audio Connector for IEI AC-KIT-888S kit PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDA_SYNC HDA_BIT_CLK HDA_SDOUT HDA_PCBEEP HDA_SDIN HDA_RST# +12V CN1: 12V Power Input Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V BAT2: RTC Battery Connector PIN NO. DESCRIPTION PIN NO.
- Page 8 EC_DEBUG1: EC Debug Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION EDICLK EDICS EDIDI EDIDO F_PANEL1: Front Panel Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWR_LED- HDD_LED+ PWR_LED+ HDD_LED- I2C1: I C Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_CLK_EC SMB_DATA_EC PWR_BTN1: Power Button Connector DESCRIPTION DESCRIPTION...
- Page 9 COM3, COM4, COM5, COM6: RS-232 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION ISATA1: iSATA 6Gb/s Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA RX+ SATA_RX‐ SATA_TX‐ SATA_TX+ SATA2: SATA 6Gb/s Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐ SATA_TX+ SATA RX+ SATA_TX‐...
- Page 10 SMB1: SMBus Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_CLK SMB_DATA JBIOS1: Flash SPI ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CLK SPI_CS# SPI_SI SPI_SO EC_SPI1: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION CS#_EC +3.3V SO_EC HOLD#_EC EC_DET_FLASH...
- Page 11 Module Key Module Key Module Key PCIE_TX_DP PCIE_TX_DN PCIE_RX_DP PCIE_RX_DN PCIE_CLK+ PCIE_CLK- SUSCLK PLT_RST +3.3V +3.3V WLAN_EN_EC WIGIG_PE_WAKE_N +3.3V +3.3V...
- Page 12 M2_B_KEY: M.2 2242/2280 B Key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3 +V3.3 WWAN_FCP_OFF_N USB2_DP WWAN_DISABLE_N USB2_DN Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key PCIE_1_RX_DN PCIE_1_RX_DP PCIE_1_TX_DN PCIE_1_TX_DP SSD_DEVSLP PCIE_0_RX_DN PCIE_0_RX_DP PCIE_0_TX_DN PCIE_0_TX_DP...
- Page 13 +V3.3 +V3.3 +V3.3 DP1: External DP Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LANE0P LANE3N LANE0N CONFIG_A_1 LANE1P CONFIG_A_2 AUXP LANE1N LANE2P AUXN LANE2N LANE3P HDMI1: External HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2P HDMI_CLKN HDMI_DATA2N HDMI_DATA1P HDMI_CLK HDMI_DATA1N HDMI_SDA HDMI_DATA0P...
- Page 14 All the drivers and utility for the https://download.ieiworld.com NANO-EHL are available on IEI Resource Download Center. Type NANO-EHL and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its...
- Page 15 Board Layout: Jumper and Connector Locations (Unit: mm)
