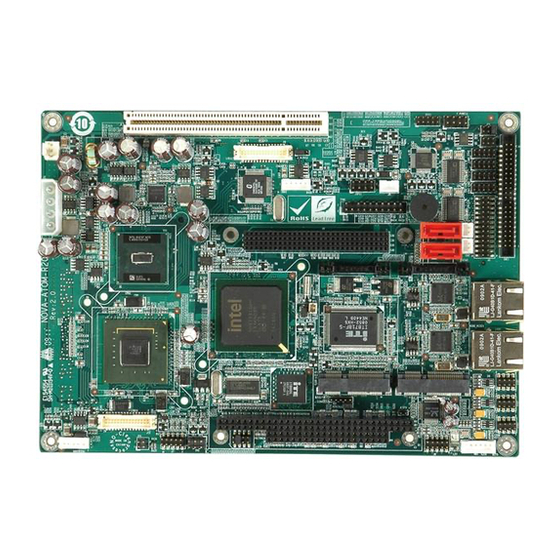

5.25" SBC, Intel® Pentium® M/ Celeron® M CPU with VGA,
LVDSx2, Dual PCIe GbE, USB2.0, SATA and audio
Quick Installation Guide
Package Contents
NOVA-9152/NOVA-9102 package includes the following items:
1 x NOVA-9152/NOVA-9102 Single Board Computer
1 x Mini Jumper Pack
1 x ATA66 Flat Cable
2 x SATA Cable
1 x SATA Power Cable
1 x VGA Cable
1 x KB/MS Y Cable
1 x 4 ports RS-232 Adapter Cable
1 x USB Cable
1 x Audio Cable
1 x Utility CD
1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
All manuals and user guides at all-guides.com
NOVA-9152/9102
Version 1.0
Apr. 22, 2008
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology NOVA-9152
Summary of Contents for IEI Technology NOVA-9152
- Page 1 NOVA-9152/9102 Quick Installation Guide Version 1.0 Apr. 22, 2008 Package Contents NOVA-9152/NOVA-9102 package includes the following items: 1 x NOVA-9152/NOVA-9102 Single Board Computer 1 x Mini Jumper Pack 1 x ATA66 Flat Cable 2 x SATA Cable 1 x SATA Power Cable...
- Page 2 Intel® 910GMLE + ICH-6M BIOS AMI Flash BIOS System Memory Two x 200-pin DDRII SDRAM SO-DIMM 400/533 MHz (NOVA-9152 system max. 2GB) Two x 200-pin DDRII SDRAM SO-DIMM 400 MHz (NOVA-9102 system max. 2GB) Ethernet: Dual Realtek RTL8111CP GbE chipsets I/O Interface...
- Page 3 All manuals and user guides at all-guides.com VGA output Integrated in Intel® 915GME/910GMLE Dual–channel 18/24-bit LVDS by Intel® 9152GME/910GMLE (NOVA-9152/9102 series) Dual-channel 18/24-bit LVDS by Chrontel CH7308 via SDVO bus (NOVA-9152LVDS2 only) Optional External Audio kits 5.1 channel audio kit with Realtek ALC655 AC’97 codec SSD: CF type I/II WTD: Software programmable 1-255 sec.
- Page 4 All manuals and user guides at all-guides.com Jumpers setting and Connectors J_VLVDS1: Set LVDS Voltage J_CMOS1: Clear CMOS Setup J_CMOS1 DESCRIPTION J_VLVDS1 DESCRIPTION Keep CMOS Setup +3.3V LVDS (Default)* (Normal Operation) Short 2-3 Clear CMOS Setup +5V LVDS J_FREQ1:CPU Frequency Selection J_VLVDS2: LVDS Voltage Selection J_FREQ1 DESCRIPTION...
- Page 5 All manuals and user guides at all-guides.com J_COM_V3 and J_COM_V4 1 – 2 2 – 3 +12V J_COM_F5 and J_COM_F6 1 – 2 Pin28 and pin38 of COM as voltage 2 – 3 Pin28 and pin38 of COM as signal “RING” J_COM_V5 and J_COM_V6 1 –...
- Page 6 All manuals and user guides at all-guides.com IR1: IrDA connector CPU_FAN1: CPU Fan Connector DESCRIPTION PIN NO. DESCRIPTION Ground +12V IR-RX CPUFANIN CPUFANOUT IR-TX ATXCTL1: ATX Connector KB_MS1: 6-pin Mini-DIN DESCRIPTION Keyboard/Mouse Connector DESCRIPTION PS_ON# 5VSB Mouse Data Mouse Clock Keyboard Data CN3: Programming LC4064 Keyboard Clock...
- Page 7 All manuals and user guides at all-guides.com COM1/COM2: Serial Port Connector DESCRIPTION PIN DESCRIPTION -NDCD -NDSR# NSIN -NRTS# NSOUT -NCTS# -NDTR# -XRI# C# TXD485+ C# TXD485# C# RXD485+ C# RXD485# CN1: PCI-E Mini Card Connector (DVI Connector) DESCRIPTION DESCRIPTION PCIE_WAKE# VCC3 1.5V CLKREQ#...
- Page 8 All manuals and user guides at all-guides.com PCI104: PCI104 Connector (120-pin PCI bus) PIN Description PIN Description PIN Description PIN Description SERIRQ# PIOVCC C_BE#0 AD11 PIOVCC AD10 AD14 AD13 AD12 VCC3 C_BE#1 AD15 VCC3 SERR# SBO- PERR# VCC3 SDONE STOP# VCC3 PLOCK# VCC3...
- Page 9 All manuals and user guides at all-guides.com DIO1: Digital Input / Output Connector PIN DESCRIPTION PIN DESCRIPTION Ground OUT0 OUT1 OUT2 OUT3 8IN0 8OUT0 8IN1 8OUT1 8IN2 8OUT2 8IN3 8OUT3 8IN4 8OUT4 8IN5 8OUT5 8IN6 8OUT6 8IN7 8OUT7 LPT1: Parallel Port Connector DESCRIPTION DESCRIPTION STROBE#...
- Page 10 All manuals and user guides at all-guides.com COM: COM3~COM6 Internal Serial Port Connector DESCRIPTION DESCRIPTION DATA CARRIER DETECT DATA SET READY (-NDCD3) (-NDSR3) RECEIVE DATA REQUEST TO SEND (NSIN3) (-NRTS3) TRANSMIT DATA CLEAR TO SEND (NSOUT3) (-NCTS3) DATA TERMINAL READY RING INDICATOR (-NDTR3) (-XRI3)
- Page 11 All manuals and user guides at all-guides.com IDE1: IDE Interface Connector DESCRIPTION DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15...
- Page 12 All manuals and user guides at all-guides.com INVERTER1: Panel LVDS1: LVDS Connector DESCRIPTION PIN DESCRIPTION Power Supply DESCRIPTION GND1 GND2 BRIGHTNESS A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# BL_EN A_Y3 A_Y3# GND3 GND4 B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3...
- Page 13 All manuals and user guides at all-guides.com PC104: J1 Connector (64 & 40 pin ISA bus) PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION -IOCHK SA14 -DACK1 SA13 RSTDRV DRQ1 SA12 -REFRESH SA11 IRQ9 BCLK SA10 IRQ7 DRQ2 IRQ6 IRQ5 -NOWS IRQ4 +12V...
- Page 14 All manuals and user guides at all-guides.com CF1: CF Card Interface Slot PIN DESCRIPTION PIN DESCRIPTION CD1# CE2# VS1# IOR# IOW# CSEL# VS2# RESET# WAIT# INPACK# REG# BVD2 BVD1 IOCS16# CD2# GND2...
- Page 15 All manuals and user guides at all-guides.com Board Layout: Jumper and Connector Locations...
- Page 16 All manuals and user guides at all-guides.com...
