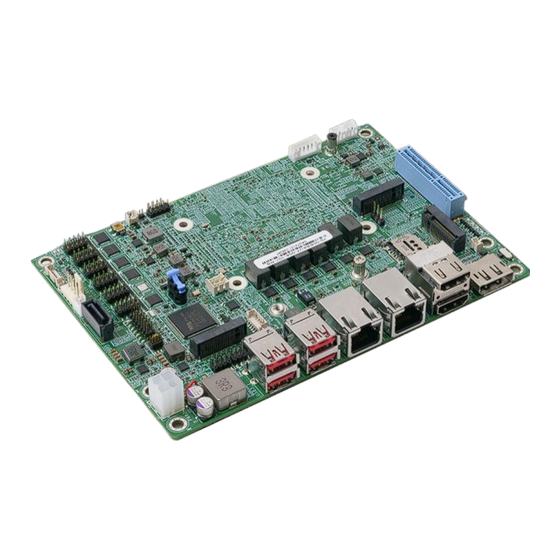

EPIC SBC Supports Intel® Alder Lake-P Processor, Dual HDMI, DP,
iDPM, M.2 A Key, M.2 B Key, USB 3.2, SATA 6Gb/s, COM, iAUDIO,
Quick Installation Guide
Package List
NANO-ADL-P package includes the following items:
1 x NANO-ADL-P single board computer with heat spreader
1 x SATA with power cable
1 x QIG
PCIe x4 for Riser Card and RoHS
NANO-ADL-P
Version 1.0
December 12, 2022
©2022 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Related Manuals for IEI Technology NANO-ADL-P
Summary of Contents for IEI Technology NANO-ADL-P
- Page 1 NANO-ADL-P Quick Installation Guide Version 1.0 December 12, 2022 Package List NANO-ADL-P package includes the following items: 1 x NANO-ADL-P single board computer with heat spreader 1 x SATA with power cable 1 x QIG ©2022 Copyright by IEI Integration Corp.
-
Page 2: Specifications
Specifications CPU: 12th Gen. Intel® mobile Alder Lake-P on board SoC Memory: On-board 8GB 3200 MHz LPDDR4x memory, up to 16GB BIOS: AMI UEFI BIOS Graphics Engine: Intel® Xe Graphics architecture, 4 independent displays, up to 8K resolutions ... - Page 3 1 x M.2 2230 A key for Wi-Fi & BT (PCIe Gen3 x1 & USB 2.0) 1 x M.2 3042/2280 B key with SIM slot (PCIe x2) 1 x PCIe x4 slot (PCIe x4 signal, x4 & x2+x2 & x2+x1+x1) ...
-
Page 4: Ordering Information
Ordering Information NANO-ADL-P-i7C-R10: EPIC SBC supports Intel® Alder Lake-P Core™ i7 processor, dual HDMI, DP, iDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, iAUDIO, PCIe x4 for riser card and RoHS NANO-ADL-P-i5C-R10: EPIC SBC supports Intel® Alder Lake-P Core™ i5 processor, dual HDMI, DP, iDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s,... - Page 5 All the drivers and utility for the https://download.ieiworld.com NANO-ADL-P are available on IEI Resource Download Center. Type NANO-ADL-P and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its...
-
Page 6: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_ATX_AT1 AT/ATX power mode setting J_CMOS1 Clear CMOS jumper ME_FLASH1 Flash descriptor security override jumper IAUDIO1 Audio connector for IEI AC-KIT-888S kit PWR1 12V power input connector BAT1 RTC battery connector Buzzer connector J_DIO1 Digital I/O connector EC_DBG1 EC debug connector... - Page 7 J_ATX_AT1: AT/ATX Power Mode Setting PIN NO. DESCRIPTION Short A - B ATX Power Mode (default) Short B - C AT Power Mode J_CMOS1: Clear CMOS Button Status DESCRIPTION Keep CMOS Setup (Normal Operation) Press Clear CMOS Setup ME_FLASH1: Flash Descriptor Security Override Jumper PIN NO.
- Page 8 BAT1: RTC Battery Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBATT SP1: Buzzer Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PC_BEEP_N J_DIO1 : Digital Input/Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 5 Output 4 Output 3 Output 2 Output 1 Output 0 Input 5...
- Page 9 F_PANEL1: Front Panel Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWR_LED- HDD_LED+ PWR_LED+ HDD_LED- J_I2C1: I C Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_CLK_EC SMB_DATA_EC PWR_BTN1: Power Button Connector DESCRIPTION DESCRIPTION PWRBTN_SW# RST_BTN1: Reset Button Connector DESCRIPTION DESCRIPTION EXTRST- COM1, COM2, COM3, COM4: RS-232 Serial Port Connectors PIN NO.
- Page 10 COM5, COM6: RS-232/422/485 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA1: SATA 6Gb/s Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐ SATA_TX+ SATA RX+ SATA_TX‐ SATA_PWR1:SATA Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC5V J_SMB1: SMBus Connector PIN NO.
- Page 11 EC_SPI1: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION EC_SPI_CS#_R +3.3V EC_SPI_MISO_R EC_DET_FLASH EC_SPI_CLK_R EC_SPI_MOSI_R USB2_1, USB2_2: Internal USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- M2_A1: M.2 2230 A Key Slot PIN NO. DESCRIPTION PIN NO.
- Page 12 PCIE_TX_DP PCIE_TX_DN WLAN_CL_RST_N WLAN_CL_DATA PCIE_RX_DP WLAN_CL_CLK PCIE_RX_DN PCIE_CLK+ PCIE_CLK- PLT_RST BT_ON PCH_WAKE_N WLAN_OFF +3.3V +3.3V M2_B1: M.2 2242/2280 B Key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3 +V3.3 USB2_DP W_DISABLE_N USB2_DN Module Key Module Key Module Key Module Key Module Key Module Key Module Key...
- Page 13 Module Key M.2_B_WAKE PCIE_1_RX_DN SIM_RST PCIE_1_RX_DP SIM_CLK SIM_CIO PCIE_1_TX_DN SIM_VCC PCIE_1_TX_DP M.2_SMCLK PCIE_0_RX_DN M.2_SMDATA PCIE_0_RX_DP PCIE_0_TX_DN PCIE_0_TX_DP PLT_RST_N PCIE_CLK_DN M.2_B_WAKE PCIE_CLK_DP +V3.3 +V3.3 +V3.3...
- Page 14 DP1: External DP Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LANE0P LANE3N LANE0N CONFIG_A_1 LANE1P CONFIG_A_2 AUXP LANE1N LANE2P AUXN LANE2N LANE3P HDMI1: External Dual HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2P HDMI_CLKN HDMI_DATA2N HDMI_DATA1P HDMI_CLK HDMI_DATA1N HDMI_SDA HDMI_DATA0P HDMI_DATA0N HDMI_HPD...
- Page 15 USB3_1, USB3_2: External Dual USB 3.2 Gen 2 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ LAN1, LAN2: 2.5GbE RJ-45 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN1_MD0+ LAN1_MD2+ LAN1_MD0-...
- Page 16 Board Layout: Jumper and Connector Locations (Unit: mm)
