Summary of Contents for WAGO WAGO-I/O-IPC 758-870 Series

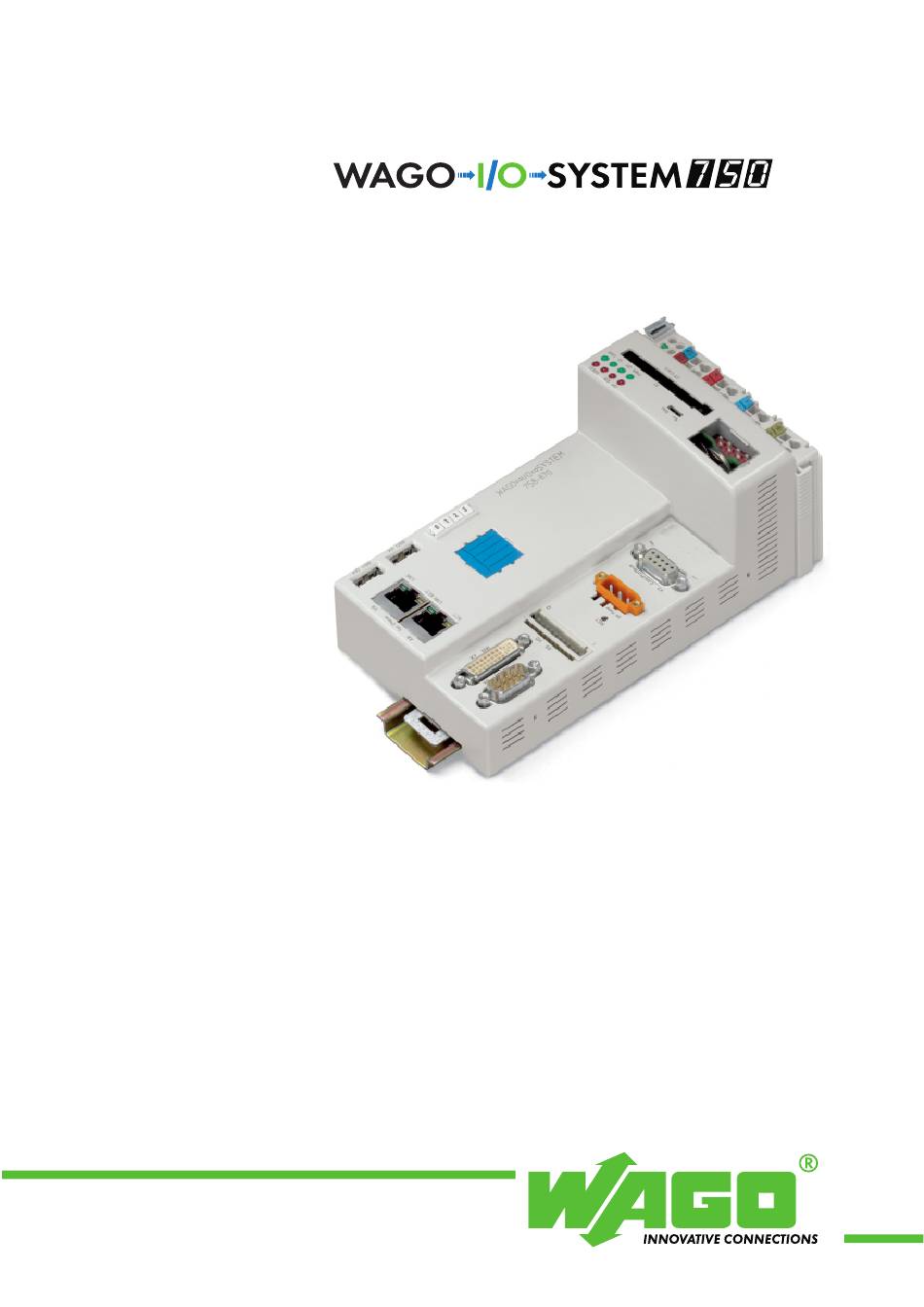

- Page 1 Modular I/O System Quickstart for the Software Update of WAGO-I/O-IPC 758- 870/xxx Version 2.0.1...
- Page 2 2 • General Copyright 2006 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/887 – 0 Fax: +49 (0) 571/887 – 169 E-Mail: info@wago.com Web: http://www.wago.com...
-
Page 3: Table Of Contents
DVI Connection ..................9 Update Tool Under Windows..............9 3 Creation of the Boot Capable CF Card Using "PhysDiskWrite.exe".. 10 4 System Update on the WAGO-I/O-IPC via CF Card......13 Booting up the IPC ................. 13 "Setupmenu.sh" Update Tool ..............14 4.2.1... -
Page 4: Important Notes
All other changes to the hardware and/or software and any use of the components that is not in accordance with the intended use entail the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG. Please direct any requirements pertaining to a modified and/or new hardware or software configuration directly to WAGO Kontakttechnik GmbH &... -
Page 5: Symbols
Routines or advice for efficient use of a device and software optimization. Additional information References to additional literature, manuals, data sheets and INTERNET pages. 1.3 Number Notation Number code Example Note Decimal Normal notation Hexadecimal 0x64 C notation Binary '100' Within ', '0110.0100' Nibble separated with dots WAGO-I/O-IPC... -
Page 6: Safety Information
Do not use contact sprays, which could possibly impair the functioning of the contact area. The WAGO-I/O-SYSTEM 750 and its components are an open system. It must only be assembled in housings, cabinets or in electrical operation rooms. Access must only be given via a key or tool to authorized qualified personnel. -
Page 7: Scope
Each individual components will be presented and briefly described in the relevant sections. Furthermore, the creation of a small operational system and its transfer to the WAGO-I/O-IPC will be shown. Using this system, the target system will then be able to boot on its own. -
Page 8: Required Components And Tools For Update Via Cf Card
2.1 Boot Capable CF Card A CF card is used as storage media for updating the software on the WAGO I/O-IPC. The BIOS of the IPC is preset in such a way that the external flash (CF card) will precede the internal flash during the boot procedure. -
Page 9: Usb Keyboard
2.3 USB Keyboard Operating the update software on the IPC is done via USB keyboard. The internal USB ports of the WAGO-I/O-IPC support USB 1.1. The keyboard is automatically recognized and ready to use when connected to the WAGO-I/O- IPC. Using a lower priced keyboard is adequate for this purpose. -
Page 10: Creation Of The Boot Capable Cf Card Using "Physdiskwrite.exe
(see Fig. 1) from which boot capable media can be created. Fig. 2: Program call without parameters If the progam is called without parameters, the program usage is displayed and all possible options are listed (see Fig.2) WAGO-I/O-IPC... - Page 11 Having only the CF card plugged here, there is only one drive listed in the table. The actual copy process starts after the number is selected (see Fig. 4). Fig. 4: Display of running copy process WAGO-I/O-IPC...
- Page 12 After the copy process is performed to the CF card, the card is ready to be operated as boot capable media and can be directly used in the WAGO-I/O- IPC. The update process on the Wago-I/O-IPC is described in the following section.
-
Page 13: System Update On The Wago-I/O-Ipc Via Cf Card
4 System Update on the WAGO-I/O-IPC via CF Card 4.1 Booting up the IPC Once the CF card is plugged into the WAGO-I/O-IPC, the IPC will be automatically booted up after switching on the operating power. The boot process can be displayed on the monitor. -
Page 14: Setupmenu.sh" Update Tool
14 • System Update on the WAGO-I/O-IPC via CF Card "Setupmenu.sh" Update Tool 4.2 "Setupmenu.sh" Update Tool To start the update tool, enter ./Setupmenu.sh (please pay attention to the two first characters) on the Linux console and then confirm by pressing the <ENTER>... -
Page 15: Partitioning
4.2.2.3 CONFIGURATION This menu item allows you to configure the network parameters of the WAGO-I/O-IPC. It is identical to the CONFIGURATION item from the main menu, which is described in details in the following section 4.2.3. 4.2.2.4 QUIT Select this item to leave the setup program and return to the Linux console. -
Page 16: Configuration" Submenu
16 • System Update on the WAGO-I/O-IPC via CF Card "Setupmenu.sh" Update Tool 4.2.3 “CONFIGURATION” Submenu The network parameters can be set up by selecting => c (CONFIGURATION) from the main menu. The BootP, DHCP and RARP IP configurations can also be selected besides fixed IP addresses for HOST, Server, Gateway, etc. -
Page 17: Update" Submenu
4.2.4 “UPDATE” Submenu By selecting => u (UPDATE) from the main menu, the following submenu will be displayed, which allows you to modifiy individual WAGO I/O-IPC software components. WAGO-I/O-IPC... -
Page 18: Kernel
4.2.4.1 KERNEL This section shows how to update the Linux kernel of the WAGO-I/O-IPC. To do that, type => k) in the command line and press the <ENTER> key. After the current configuration is displayed, the following request Do You want to update current Kernel ? [n]: y is confirmed by pressing =>... -
Page 19: Quit
System Update on the WAGO-I/O-IPC via CF Card • 19 "Setupmenu.sh" Update Tool The request Do You want to update current Kbus Firmware ? [n]: y is confirmed by pressing => y and then the <ENTER> key. The automatic installation of the Kbus firmware is initiated directly after confirmation and requires about 3 minutes. -
Page 20: System Update Of The Wago-I/O-Ipc Via Network
The first step in updating the system via the network is to copy the update files into the file system of the WAGO-I/O-IPC. The simplest way to do this is via an FTP connection from the host computer, e.g. using “Total Commander 6.0”. -
Page 21: Linux Filesystem "Sync
The access authorization for the FTP connection is done via User name: user Password: user00 After logging into the file system of the WAGO-I/O-IPC, you are in the /data folder. The CoDeSys application is automatically stored in this folder to which the user has read and write access. -
Page 22: Automatic Update Of The System
DVI monitor. After the update has successfully completed, the update files are automatically deleted from the file system and the WAGO-I/O-IPC can be rebooted with the updated software. Both network settings and application program remain unchanged so that the application can start running immediately after the last restart. -
Page 23: Examples
WAGO I/O-IPC, as a simple update of the components doesn't work. In case of doubt, this remains the safest way to update the WAGO I/O-IPC as all software components will be updated. To do so, follow the required step by step instructions below. - Page 24 WAGO Kontakttechnik GmbH & Co. KG P.O. Box 2880 D-32385 Minden Hansastraße 27 • D-32423 Minden Phone: 0571/887 – 0 Fax: 0571/887 – 169 E-Mail: info@wago.com Internet: http://www.wago.com...
