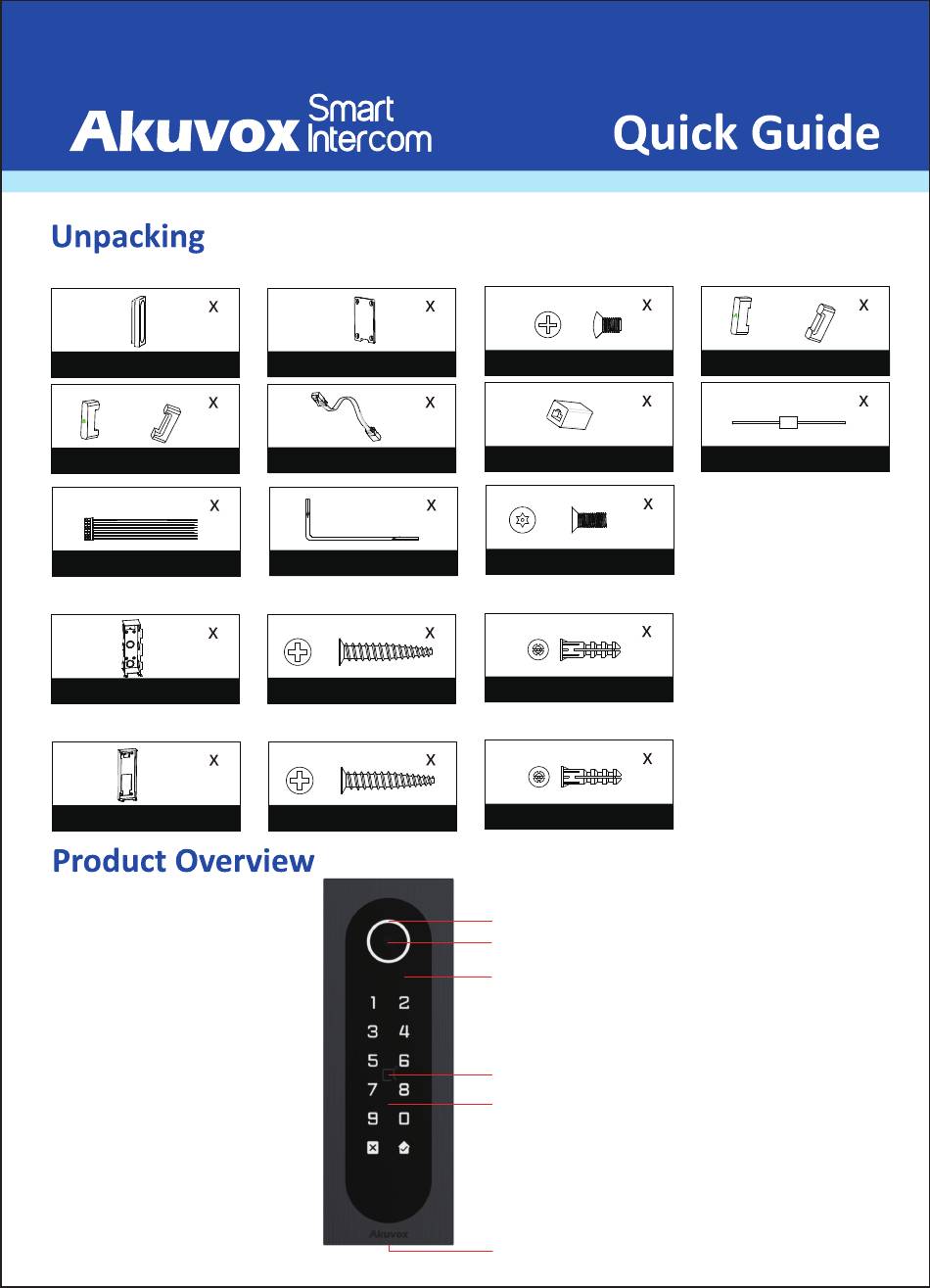

Before using the device, check the device model and ensure that the shipped box includes the following items:
1
A08
2
B Rubber plug (black)
2
8-Pin cable
Flush-mounting Accessories:
1
Flush-mounting box
Wall-mounting Accessories:
1
Wall-mounting box
1
Wiring cover
1
Ethernet cable
1
Torx wrench
4
ST4x20 crosshead screw
4
ST4x20 crosshead screw
4
M2.5 x 5 crosshead screw
1
Ethernet connector
2
M3X6 Torx head screw
4
Plastic wall anchor
4
Plastic wall anchor
Blue and Green Light LED
Camera
TOF Sensor
Card Reader
Touch Screen
Loudspeaker
A08X
2
A Rubber plug (grey)
1
Diode
Advertisement
Table of Contents
Related Manuals for Akuvox A08X
Summary of Contents for Akuvox A08X
- Page 1 A08X Before using the device, check the device model and ensure that the shipped box includes the following items: A Rubber plug (grey) M2.5 x 5 crosshead screw Wiring cover Diode Ethernet connector B Rubber plug (black) Ethernet cable Torx wrench...
-
Page 2: Before You Start
A08X Before You Start Tools needed (not included in shipped box) Cat Ethernet Cable Crosshead Screwdriver Electric Drill Voltage and Current Specifications It is suggested that use PoE or 12VDC 1A power adapter to power on device. AWG Sizes and Properties Table... - Page 3 5.Use wet cloth clean device surface softly, and then wipe the surface with dry cloth for cleaning the device. 6.If there is abnormal situation of the device, including uncommon sound and smell, please power off the device and contact Akuvox Technical Team immediately. Wiring Interface To protect the device from potential damage caused by over-voltage, it is recommended to wire a diode into the circuit.
- Page 4 A08X Inst Step1: Wall-mounting or Flush-mounting Box Installation 1. Wall-mounting Box Installation Cut a square hole on the wall according to the wire position with the dimension 50*29*23mm (height*width*depth). Align the square hole of the wall-mounting box with the square hole on the wall, ensuring the box is closely against the wall.
- Page 5 A08X Insert four plastic wall anchors into the screw holes. Tighten the four ST4x20 crosshead screws to the plastic wall anchors to fasten the wall-mounting box to the wall. Wall-mounting installation is completed. Note: Ensure the drilled holes are aligned with the box’ s holes and wall-mounting box is parallel to the ground.
- Page 6 A08X Put the flush-mounting box into the hole, ensuring the flaps of box’ s side are attached to the wall, and leave a gap at the bottom for drainage. Mark the box’ s four holes on the wall, ensuring the mark is at the center of each hole.
- Page 7 A08X The installation is completed after checking the flaps of the box are attached to the wall and higher than the wall. And ensure there is a gap at the bottom for drainage. Step2: Main Unit Installation Take out A08, wiring cover, A and B rubber plugs, and four M2.5x5 crosshead screws.
- Page 8 A08X Fasten the wiring cover with four M2.5x5 crosshead screws. Step3: Device Mounting Put all wires and Ethernet connector into the drilled square hole in the wall. Hang the slot of the main unit into the corresponding hooks of the box, and then gently lower the main unit into the box.
- Page 9 A08X The installation is completed after checking gap around the device is even, the connection is secure, and the device can be powered on. Application Network Topology (third party)
-
Page 10: Device Test
1. Akuvox warranty does not cover intentional mechanical damage or destruction caused by improper installation. 2. Do not attempt to modify, alternate, maintain, or repair device by yourself. Akuvox warranty does not apply to damages caused by anyone who is not representative of Akuvox or an Akuvox authorized service provider. Please contact Akuvox Technical Team if the device need to be repaired.
