Unpacking
Before you begin using the device, please check the version you got and ensure
that the following items are included in the shipped box:

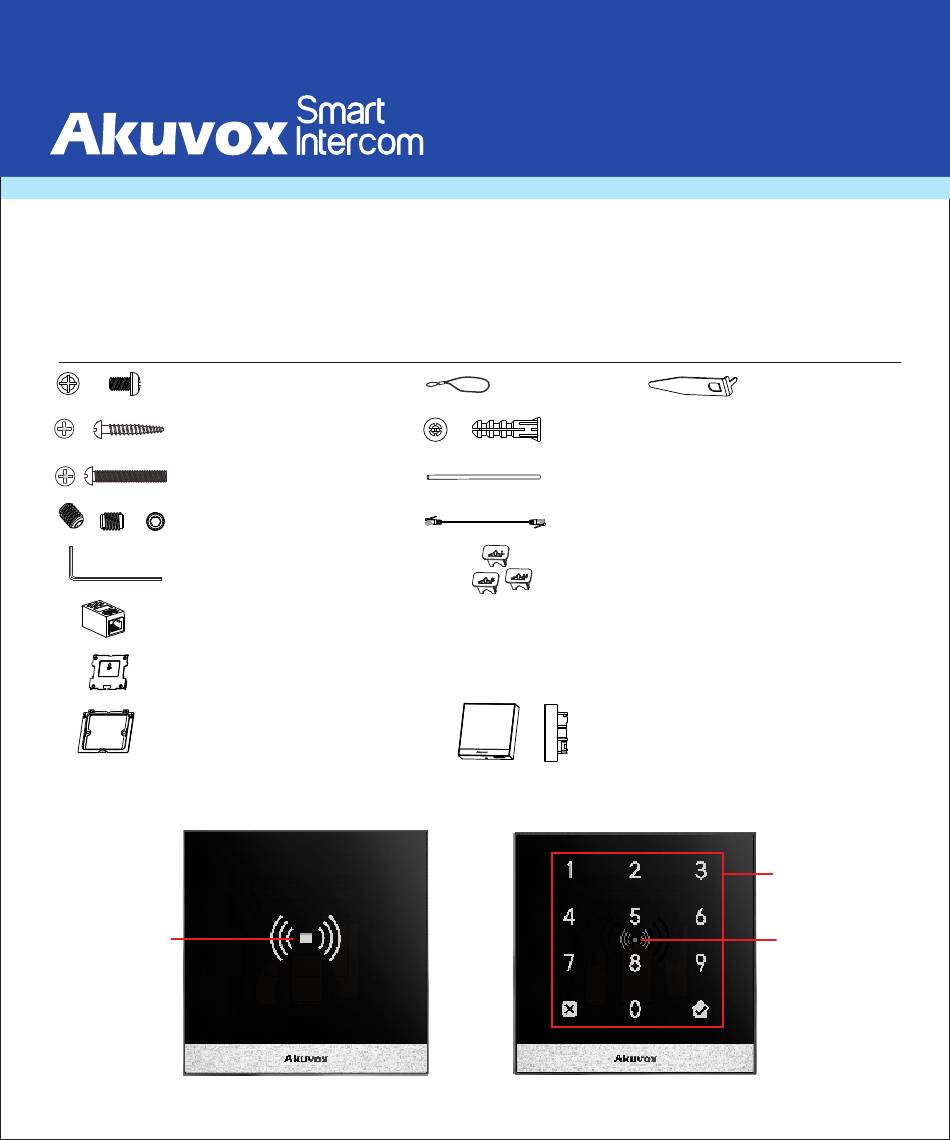

Universal Accessories:
M2.5X4 Screw x 4
ST4X20 screw x 4
M4X30 screw x 2
M3X4 Set screw x 1
Allen wrench x 1
RJ45 Coupler Ethernet Extension Connector x 1
Embedded Junction Box Mounting Bracket x 1
Cable Locking Plate x 1

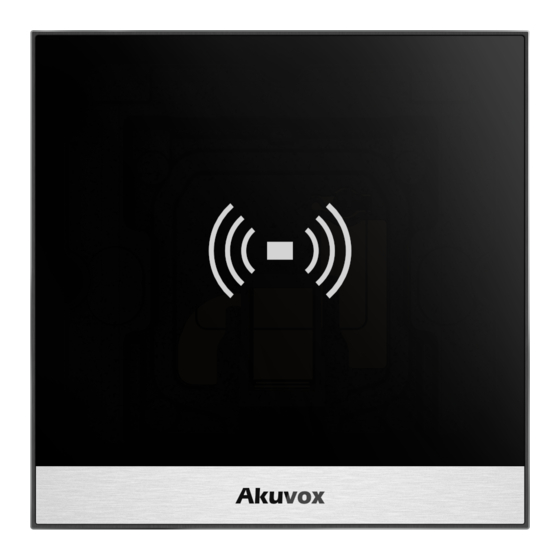

Product Overview
Card Reader
A01
A01X/A02X
Quick Guide
Rope x 1
Plastic wall anchor x 4
Silicone Foam Seal Strip x 1
RJ45 Ethernet Patch Cable x 1
Rubber Plug(S,M,L) x 3
A01/A02 x 1
A02
Pry tool x 1
Keypad
Card Reader
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akuvox A01X
Summary of Contents for Akuvox A01X
- Page 1 A01X/A02X Quick Guide Unpacking Before you begin using the device, please check the version you got and ensure that the following items are included in the shipped box: Universal Accessories: Rope x 1 M2.5X4 Screw x 4 Pry tool x 1...
- Page 2 A01X/A02X Quick Guide Installa on Warning The 86 junction box is a standard purchased item for the installation and is not included in the packing list, please prepare it before the installation. Installa on Step1: Bracket Installa on Wall-moun ng Installa on...
- Page 3 A01X/A02X Quick Guide Flush Moun ng Installa on 86mm GROUND Fill in the gap between the square hole Cut out a square hole with the dimension (height*width*depth = 86*86*50mm). and the junction box with cement or other non-corrosive construction adhesive.
- Page 4 A01X/A02X Quick Guide Step2:Back Cover Installa on For the convenience of the installation, it is advised Hang the rope onto the that you lead the rope we hook hanger on the provided through the rope junction box. hole at the back of the device, then fill in the grove using the...
- Page 5 1. Obtain IP address: While A01/A02 starts up normally, click Search key in the IP Scanner tool to Search the IP address.(Please consult Akuvox Technical Team for IP Scanner tool). 2. Access the Web UI: Enter the device IP address and press Enter, then enter the username and login password.
- Page 6 Ethernet Relay_IN2 Doorbell 2 Exit Input Voltage Transformer Left Relay_IN1 Doorbell 1 Exit +12V Input Power Input Relay Right Door Lock Output AKUVOX (XIAMEN) NETWORKS CO., LTD. ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA www.akuvox.com YS01000015...
