Summary of Contents for Mount-It! MI-14009

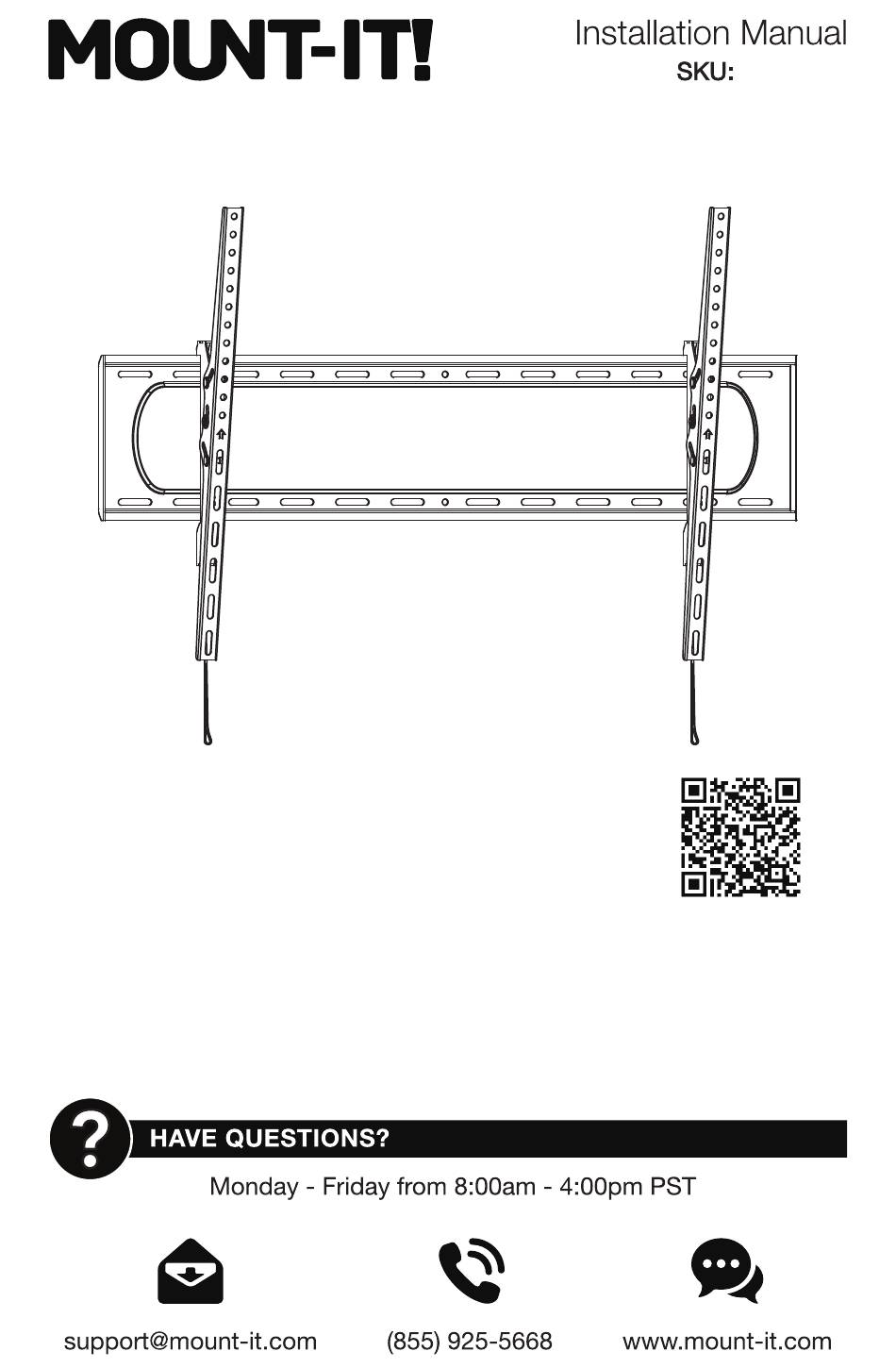

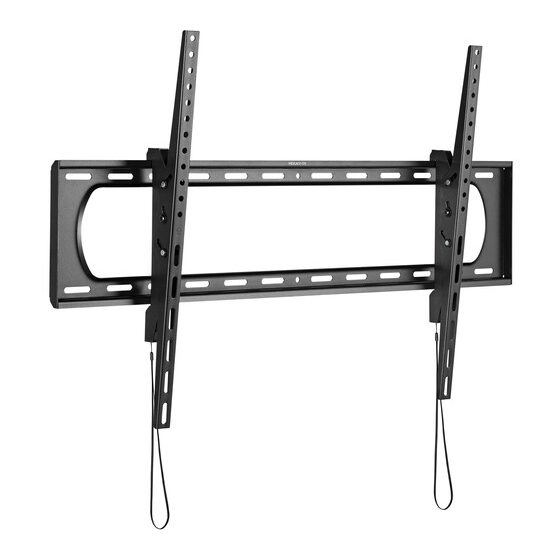

- Page 1 MI-14009 Scan this QR code for product information, videos, and assembly assistance. HEAVY-DUTY TILT TV WALL MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! VESA Brackets Mount-It! Wall Mount Bubble Level Template Hex Wrench Mounting Hardware Wall Mounting Hardware Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1a Step 1b Wood Stud Installation Option Concrete/Brick Installation Option • Use a stud finder to locate the center of the studs and hold Template (#E) to the wall in the desired • Hold the Template (#E) to the wall in the desired mounting location. mounting location.
- Page 4 Step 2 Step 3 Attach the VESA Brackets to the TV Hang the TV on the Wall Mount • Select the appropriate size mounting bolt (Select one size #M-A, M-B, M-C or M-D) and washer (#M-E) • It is recommended that you use the assistance of a second person for this step. Hang the TV on the for your display’s mounting holes and verify the length of the VESA bolt is not too long.
