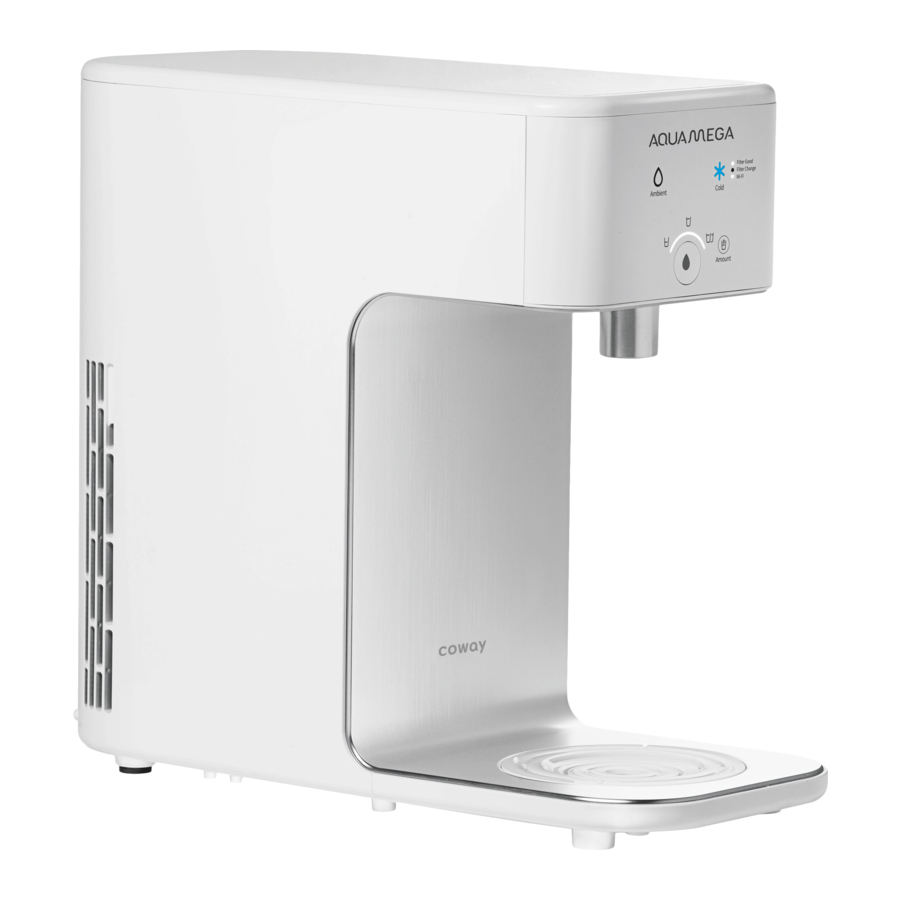

Coway Aguamega 200C - Water Purifier Manual

Feature Highlights

The following features are available for our Aquamega Water Purifier

Powerful Filtration

• Sediment + Carbon-block filter.
• Reduction of chlorine, taste & odor, chloramine, lead, mercury, cyst, VOCs, turbidity, Bisphenol A, Estrone, Ibuprofen, Naproxen, and Nonylphenol. See performance data sheet for individual contaminants and reduction performance.


Smart Water Purifier
Wi-Fi connectivity and Coway IoCare® Mobile App for smarter use of water purifier.

Electronic cooling system
Our cooling system does not use coolant, so it is an environmentally friendly water purifier system. In addition, noise due to the existing cooling function is reduced by use of an electrical energy based cooling function.

Easy filter replacement
Unlike the existing difficult water purifier filter replacement method that takes a long time, you can now easily replace the filter.

Ultra slim design
The sophisticated slim design makes it easy to use even in small spaces.

LED indicator
The controller/indicator's LED can show you the operational status of the product including filter replacement information.

Parts Name

Check the parts of the product (exterior in the front and top view and control panel) and how they function.

Water Filtration Process

The heart of a water filtration device is its filters. their life expectancy, their performance may decrease. If filters are not authorized or if authorized filters are used past

2-step Water Filtration System

1st filter: Sediment Filter (B-N)
1st step: This Sediment filter has the functions to remove infusible particles from feed water and to protect the carbon block filter.

2nd filter: Carbon block Filter (B-I)
2nd step: This Carbon block filter has the functions to improve the water quality and taste by removing pollutants, such as odor-causing substances, soluble contaminant, chlorine and volatile organic compounds (VOC's).

* Fine bubbles (air bubbles) generated from the water dispensing from the direct type product is a temporary effect due to the water pressure. Fine bubbles (air bubbles) naturally disappear and cause no problem in water quality.
* If you boil purified water it can generate white precipitants. It is the effect of minerals in the water, not foreign substances.

HOW TO USE

Please Check Before Use

This product is for 120 V~, 60 Hz.
Please connect the power plug to grounded 120 V~, 60 Hz outlet. The water filtration device requires a power supply to operate.

Open the tap water valve.
Tap water must be supplied for operation.

When the indicator turned off on display unit.
Please check for power failure or power stoppage for other various reasons when indicators of the display unit are turned off.

When using after an extended period of time.
Completely drain the stored water as well as newly filtered water one more time prior to use when using the product after an extended period of time.

After installing product.
After installing the product, dispense the ambient water for 3 minutes before using the cold water.
Make sure that you run the ambient water to flush the filters properly before using the cold water.

Regular filter replacement.
Regular filter replacement is crucial for drinking clean water. Using expired filter decreases water filtration device performance so please replace the filter on time.

Cold water dispensing instructions.
Using the water drain cap at the rear of the product, you can completely drain the water from the inside of the cold water tank.

NOTE
Lock the tap water valve and disconnect power when not using the product for an extended period of time.

Buttons And Indicators

(Aquamega200C)

Indication Part

1.
   Ambient water indicator
   It is lit when ambient water is selected.

2.
   Cold water indicator/Cold water temperature indicator
   It is lit when cold water is selected.
   * Cold water temperature displays
   • Blue: Very Cold
   • White: Cold
3.
   Dispensing amount indicator
   It will lit and indicate the selected amount of dispensing water.
4.
   Filter status indicator
   It is lit differently depending on the remaining level of the filter.
5.
   Wi-Fi status indicator
   It is lit differently depending on the Wi-Fi connection.

Reference

Control Part

1.
   Ambient water button
   Use when you wish to dispense filtered water (short tap).
2.
   Cold water button
   Use when you want to use/cancel the cold water function. (ON/OFF 5 sec). Use when you wish to dispense cold water (short tap).
3.
   Amount button
   Use when you wish to select the desired dispensing amount.(4 oz → 8 oz → 16 oz).
4.
   Dispensing button
   Press to dispense water.
   * If you hold the button for 3 seconds, it will dispense water for 3 minutes continuously.

Product Setting

Cooler On / Off
If you press the cold water button for more than 5 sec, the cooler will be turned on/off. Touch it and see if the cold water temperature display lamp is lit.

* You can drink cold water after about two hours after turning on the cold water function.

Sound On / Off
If you press the ambient water button for more than 5 sec, it will be turned on/off.

* Even if in Sound off mode, error sounds can be heard.

LED On / Off
If you press the ambient water button and the amount button together for more than 2 sec, LED will be turned on/off.

* Even if in LED off mode, if you operate the product or dispense water, LED will turn on and then turn off automatically after 30 sec.

Wi-Fi On / Off
If you press the ambient water selection button and the extraction amount button together for more than 2 sec, Wi-Fi function will be turned on/off.

* If you want to make Wi-Fi pairing, please refer to the "Wi-Fi pairing" section following.

LED Indication

Cold water temperature

• Blue: Very Cold
  When the temperature of the water in the cold tank is (lower than 50~55 ℉)
• White: Cold or The cooler is in operation for cooling.
  When the temperature of the water in the cold tank is (higher than 50~55 ℉)

Filter status

• Filter Good: The remaining filter capacity is 100% ~ 1%
• Filter Change: The remaining filter capacity is 0%

* To see the detailed filter remaining information, download and install the Coway IoCare® mobile application.

Wi-Fi status

Depending on the Wi-Fi status, the LED will be on, off, or blinking.
* Follow the instructions below to set up Wi-Fi.

Wi-Fi pairing

Press and hold the Ambient and Cold water buttons together to activate the Wi-Fi pairing mode and follow the instruction.

Set Wi-Fi for the Coway IoCare® application

Go to www.cowaymega.com/instructions for Wi-Fi pairing instruction and other video instructions.

How To Get The Desired Water

How to Get Cold Water

Press the cold water button to select cold water. Press the amount button to select the desired amount of water. Press the dispensing button to dispense cold water. If you press the dispensing button again during dispensing, it will stop.

* You can select it in the order of 4 oz → 8 oz → 16 oz → 4 oz.
* When you want to use continuous dispensing, press and hold the dispensing button for 2 seconds then you can get the water for 3 minutes continuously.

NOTE

• If cold water is not being dispensed, please check if the cooler is turned on. (Refer to Cooler on/off)
• Vibration and chattering of a valve may occur during the initial use of the water purifier and it will disappear naturally.

How to Get Ambient Water

Press the ambient water button to select ambient water. Press the amount button to select the desired amount of water. Press the dispensing button to dispense cold water. If you press the dispensing button again during dispensing, it will stop.

* You can select it in the order of 4 oz → 8 oz → 16 oz → 4 oz.
* W hen you want to use continuous dispensing, press and hold the dispensing button for 2 seconds then you can get the water for 3 minutes continuously.

NOTE

• Vibration and chattering of a valve may occur during the initial use of the water purifier and it will disappear naturally.

To use continuous dispensing mode (cold/ambient water)

Select the desired water temperature first (Cold/Ambient) Press and hold the dispensing button for 2continuously. seconds then you can get the water for 3 minutes

* if you press the dispensing button again during dispensing, it will stop.

To use automatic dispensing mode

After selecting the desired water temperature (Cold/Ambient), set the desired amount of dispensing water. You can select the amount in the order of 4 oz → 8 oz → 16 oz.

* How to change the default value of amount
The default value of amount from the factory is 4 oz. You can change the default value by following the direction below.

1. Press the amount button for 2 seconds then the amount indicator will blink.
2. Press the amount button again until to select the desired amount.
3. Press the amount button for 2 seconds to save the setting.

NOTE
When dispensing cold/ambient water, the dispensing display lamp will be lit in sequential order.

MAINTENANCE

How To Install

Installation Guide

1. Close the shut-off valve connected to the cold water supply in the kitchen.

2. After separating the shut-off valve from the cold water hose, assemble the T valve supplied.


• The T-valve must be connected to the cold water
• Do not over tighten, it may cause a break or leak.supply only.

3. After inserting the tube supplied, and connect the other side of tube to the product.


Depending on the installation environment, use L-fittings and the T-fitting supplied to arrange the tubes.

When inserting the tubing, insert up to the black line.

4. Open the shut-off valve and the T-valve and check for leakages.

5. After connecting the tube, plug the power cord and, dispense the ambient water for 3 minutes before using the cold water.


• For continuous dispensing, use a drain hose.
• Make sure that you run the ambient water to flush the filters before using the cold water.

6. After flush the filters with Ambient water, fill the cold water tank to start cooling. Select Cold water and press the dispensing button for 2 seconds for continuous dispensing. It will take about one minute to fill up the cold water tank.

7. Assemble the mesh filter and the stopper.


NOTE
You can drink cold water after about two hours from the installing the product.

Be Careful!

Where to install the water filtration unit I
Install the product in a cool part of the room, on an even surface, out of direct sunlight and away from humidity, dust, and dripping water.

Water filtration installation location IIK
Keep the condenser part at the rear of the product at least 4 inches away from the wall and make sure that the installation floor is firm.

Movement and installation
Connect power 30 minutes after installation if the device has been moved. Cold water pipe The tubing and the product must be connected to the cold water pipe.
(If connected to the hot water pipe, it can damage the water filter.)

After installing the water filtration device
After installing the product, dispense the ambient water for 3 minutes before using the cold water.

Make sure that you run the ambient water to flush the filters before using the cold water.

NOTE

• Some of the water used for the inspection process during production may remain inside the filter. This product is not a secondhand product, so do not worry.
• Do not reuse previously used connection valves or tubes when installing the product.

How To Clean

How to Clean the Internal Water Tank

1. Close the T-valve and press the cold water button at the front of the product for about 5 sec to turn off the cold water function.

2. Remove the cold water drain cap at the rear of the product to completely drain the water from the cold water tank.

   * If you remove the cold water drain cap, then cold water is drained immediately. So prepare a container for the cold water.
   NOTE
   In order to keep the tank clean, drain the cold water from the tank every time you change the water filters or every 3 months.

3. Open the T-valve and press the cold water button for 5 seconds to turn on the cooler.


How to Clean the Tray

1. Disassemble the tray
   Remove the cover before you lift up the tray.

2. Assembly the tray
   After reinserting the cleaned tray back to the product, place cover on top of the tray.


How to clean the main body

(once every 2~4 weeks)

Use a dry and soft cloth to wipe it off.

* If the level of grime is severe, then use a slightly wet cloth to wipe it off (Do not use an abrasive).

NOTE

• Do not directly spray water to clean the product.
• Do not use thinner, benzene or agent containing abrasives or rough cloths to clean it.

How to Clean the Faucet

1. Turn the faucet Counter clockwise to separate it.

2. Use flowing water to wash the separated faucet.

3. Use a soft and dry cloth to wipe away water from the faucet.

4. After cleaning, turn the faucet clockwise to assemble it again.


NOTE
Do not ever use a cotton ball to clean the faucet cap. There can be foreign substances left on the cap.

How to Clean the mesh filter

1. Detach the mesh filter with your hands and Clean the filter with water and dry.

2. Assemble the mesh filter with hands and make sure that the four hooks are in the right position.

   * Check if the mesh filter is not upside down before assembly.

NOTE
Clean the filter every 3 months or when you see dust piled up.

Filter Replacement

Filter

Filters can determine the performance of the water purifier and should be regularly maintained and replaced. We only recommend using Coway authorized filters and using third party or depleted filters may decrease the overall performance of the water purifier. More details can be found on official Coway website (www.cowaymega.com)

Expected Replacement Cycle

If you do not regularly replace filters, the quality of water from the product will decrease. Predicted filter replacement cycles may vary depending on source water quality and amount of water used.

Aquamega200C

Filter Name	Expected replacement period
Sediment Filter	3 months
Carbon block Filter	3 months

* Replace at the rated capacity or if a noticeable reduction in flow rate occurs.
* Filter replacement cycle based on the average daily use 1.5gal (5.7L/day).

About the filter replacement period

Each filter's recommended replacement cycle varies depending on water supply quality. For reference, the effective water capacity means the minimum treatment capacity for which contaminants can be effectively removed without cleaning, recycling, or replacing the inner filters, and recommended replacement cycles for individual filters may differ.

How To Replace The Filter

1. Close the T-valve.

2. Dispense ambient water once to release the remaining pressure.

3. After removing the top cover, press the filter case button to remove the filter case.

4. After removing the two fittings with your hands, turn it by 90 deg. Then remove the filter.

5. After removing the used filter by turning it Counter clockwise, insert the new filter in the order of filter assembly by turning it clockwise.


B-N: Sediment filter, B-I: Carbon block filter

6. Insert the new filters into the product and connect the two fittings again. Insert the filter case to the product and press firmly until you hear a clicking sound.

7. Press the filter reset button for 2 seconds until you hear the chime before closing the cover to reset the filter indicator.


8. After closing the top cover, open the T-valve.

9. Dispense the ambient water for 3 minutes before using the cold water to flush the filters.

10. Dispense the cold water for 3 minutes to flush cold water tank.


NOTE

• New filters must be flushed out first before use.
• Dispense the ambient water for 3 minutes before using the cold water.

Make sure that you run the ambient water to flush the filters properly before using the cold water.

After replacing the filter, drain the remaining cold water to clean the cold water tank. (See "How to Clean the Internal Water Tank")

Daily Inspection

The condition of the water filtration device should be checked often for optimized use. Check periodically to maintain the water filtration device at the optimal level.

Power

• Is the indicator turning 'on' and 'off' as you move the power cord when power is connected?
• Is a part of the power cord hotter than usual?
• Is a part of the power cord disfigured, discolored, or damaged?

Immediately stop using and contact the service center. (1-800-285-0982)

Display Unit

• Is the indicator on the front side of the product blinking abnormally?

Please contact the service center immediately if indicators are blinking abnormally. (1-800-285-0982)

Troubleshooting

The water filtration device may malfunction due to a lack of or minor causes rather than product failure. Check for the following in such circumstances to resolve the issue in a simple manner without assistance from the service center. Please contact the service center if you cannot resolve the issue after checking for the following.

Symptom	Check	Measures to take
Taste of water is strange.	I haven't used the water filtration device for a very long time.	Drain the water contained in the cold/hot water tank.
	Isn't it time for filter replacement?	Please request for filter replacement.
Water is not being dispensed.	Is the device disconnected from the water supply or is the raw water valve locked?	Please open the feed water valve.
	Did you miss the filter replacement period?	Please purchase the Aquamega200 filter set and replace.
The filtration amount has suddenly decreased.	Isn't it time for filter replacement?	Please purchase the Aquamega200 filter set and replace.
	Is the power connected?	Please check that the power cord is connected to outlet.
	Is the feed water valve locked?	Please open the feed water valve.
	Is the temperature of feed water declining rapidly?	Filtration amount decreases as water temperature decreases.
Cold water is not being dispensed.	Is the cold water indicator on?	Press the cold water button for 5 sec to turn on the cold water function.
	The cooling unit does not seem to work.	Please request for repair service.
	Is the power connected?	Please check that the power cord is connected to outlet.
	Is the feed water valve locked?	Please open the feed water valve.
	Is the water filtration device too close to the wall?	Please maintain distance of at least 4 inches from the wall.
Water does not come out or the dispensed quantity is different than before.	Isn't it time for filter replacement?	Please purchase the Aquamega200 filter set and replace.
	Is the device disconnected from the water supply or is the raw water valve locked?	Please open the raw water valve.
	Is the tubing bent or cut?	Unfold the tubing correctly.
Water leaks.	Is there no water from the inside of the product?	After closing the T-valve, ask for maintenance service.
The device stopped suddenly during operation.	Is the water supply intact?	Please check the feed water valve.
	Is the power connected?	Please check that the power cord is connected to outlet.
	Is there leak or flooding of filtered water?	Please request for repair service.

• Filter Replacement / Call center: 1-800-285-0982

Product Specifications

Product Name		Coway Water Filtration Device
Mode		Aquamega200C
Filtration Method		Mechanical filtration & Adsorption
Standard Power Voltage		120 V~ 60 Hz
Power Consumption		Electronic cooling: 0.9 A
Water tank Capacity	Cold water	0.35 Gal / 1.35 L
	Ambient water	Direct flow (Continuous)
Filter Material	B-N (Sediment)	Polypropylene
	B-I (Carbon Block)	Activated carbon
Size (W × D × H)		(1817.1 inch x 16.5 inch x 14.7 inch mm × 420 mm × 375 mm)
Water Temperature		41°F - 95°F
Working Temperature		41°F - 95°F
Effective water filtration quantity		150 gal
Working Pressure		138 kPa – 827 kPa (20 psi ~ 120 psi), minimum feed water capacity 0.73 Gal/min (3.0 L/min)

• Water tank capacity reflects the size of the water tank and may be different from what is dispensed from the filtration unit.
• The product's design and spec can be changed without prior notices to improve the product quality and to facilitate the application.

Water Flow Diagram

Aquamega200C

Water Filtration System Performance Data Sheet

Model: AQUAMEGA 200C

This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 401 for the reduction of the substances listed below and NSF/ANSI 372 for lead free compliance. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, and 401.

Substance	Influent challenge concentration (mg/L unless specified)	Maximum Allowable Product Water Concentration (mg/L unless specified)	Percent reduction (%)
Lead	0.15 ± 10%	0.01	99.9
Mercury	0.006 ± 10%	0.002	85.4
VOC*	0.300 ± 10%	≥95% Reduction	99.9
Cyst	Minimum 50 000 /L	≥99.95% Reduction	99.9
Particulate Class I Particles 0.5 to < 1 μm	At least 10,000 particles per mL	≥85% Reduction	99.9
Turbidity	11 ± 1 NTU	0.5 NTU	99.3
Aesthetic Chlorine	2.0 ± 10%	≥50% Reduction	99.9
Chloramine1	3.0 mg/L ± 10%	0.5 mg/L	96.2
Ibuprofen**	0.0004 ± 40%	0.00006	95
Naproxen**	0.00014 ± 20%	0.00002	97
Estrone**	0.00014 ± 20%	0.00002	97
Bisphenol A**	0.002 ± 20%	0.0003	96
Nonyl phenol**	0.0014 ± 20%	0.0002	94

¹ As monochloramine (measured as Cl2/L)

**Reduction of substance certified according to NSF/ANSI 401.

While testing was performed under standard laboratory conditions, actual performance may vary.

General Operating Information

Rated Capacity	150 gallon
Min-Max operating pressure:	138 KPa ~ 827 KPa
Min-Max feed water temperature:	5 ºC ~ 35 ºC
Rated Service Flow	0.4 gpm
Electrical Requirement	Refer to rating plate

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality.
• The filtration device installation shall comply with applicable state and local regulations.
• System certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

• The influent water to the system shall include the following characteristics:
  • No organic solvents
  • Chlorine: < 2 ppm
  • pH: 7 - 8
  • Temperature: 41 º F ~ 95 º F(5 º C ~ 35 º C)
  • Iron: < 2 mg/L o Turbidity: < 1 NTU
  • Hardness: < 1 000 mg/L
• The compounds certified under NSF/ANSI 401 have been deemed as "incidental contaminants/emerging compounds". Incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.
• Refer to the owner's manual for specific installation instructions, manufacturer's limited warranty, user responsibility, and parts and service availability.
• For parts and service availability, please contact your local dealer or Coway.

Model of filter	Type	Usable period (Months)
B-N	SEDIMENT FILTER	3
B-I	POST CARBON FILTER	3

* VOC Surrogate Claims

¹ These harmonized values were agreed upon by representatives of USEPA and Health Canada for the purpose of evaluating products to the requirements of this Standard.

² Influent challenge levels are average influent concentrations determined in surrogate qualification testing.

³ Maximum product water level was not observed but was set at the detection limit of the analysis.

⁴ maximum product water level is set at a value determined in surrogate qualification testing.

⁵ Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough point as determined in surrogate qualification testing.

⁶ The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upper occurrence concentration which would produce a maximum product water level at the MCL.

WARRANTY

TO OBTAIN SERVICE:
Please contact Coway at 1-800-285-0982
between 8:00am and 5:00pm PT, Monday through Friday, to speak with an authorized representative of Coway.
For additional product information, please visit Coway's website at
http://www.cowaymega.com

For further assistance, please write: Woongjin Coway USA, Inc.
4221 Wilshire Blvd., STE 210 Los Angeles, CA 90010

Safety Instructions

Symbols Used in This Manual

The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that should be observed for safety.

indicates a potentially hazardous situation that may result in death or severe injury to the user or others.

indicates a potentially hazardous situation that may result in injury to the user or others, or the loss of property.

NOTE
Note indicates useful tips or additional information for procedures and product use.

Read and follow all the safety tips and warnings before using the product.

• Do not use damaged power plugs or loose fitting outlets.
• Do not pull on the power cord.
• Do not pull on the power cord to move the product.
• Do not touch the power plug with wet hands.
• Do not bend the power cord excessively or put it under heavy objects.
• Don't repeatedly plug and unplug the power cord.
• When the power supply comes into contact with water, unplug the power plug and completely dry it prior to use.
• Make sure to unplug the power cord when repairing, inspecting the product or changing parts.
• Completely wipe off dust and water at the contact of the power plug's pins.
• Do not connect multiple products to one power outlet. Always use a separate socket for the product.
• Lock the raw water valve and disconnect power when not using the product for an extended period of time.
• Do not modify the power cord arbitrarily.
• Do not arbitrarily replace damaged power cords and contact the service center to replace the power cord.
• Do not install near sources of heat.
• Connect the feed water to the cold water pipe.
• Please lock water supply valve and disconnect the power plug and contact the service center if there is water leakage from inside the product or if water is puddling around the product.
• Immediately disconnect the power plug and contact the service center if there is any burning smell or smoke or strange noises from the product.
• Do not place candles or cigarettes on the top of the product.
• Do not place bowls filled with water, chemicals, food, small metals, or flammable substances on the top of the product.
• Disconnect the power plug prior to cleaning.
• Do not arbitrarily open, repair, or remodel the product.

• Don't apply excessive force or impacts to the product.
• Don't install on slopes. Do not apply excessive force or shock to the product.
• Do not install in a location with too much humidity or dust or in a location exposed to water or rain.
• Completely drain the stored water as well as newly filtered water one more time prior to use when using the product after an extended period of time.
• Do not directly spray water on the product for cleaning or use benzene or thinner to wipe the product.
• Please replace the filter according to the filter replacement cycle to drink clean water.
• Do not use the filtered water for replacing water in fish tanks and aquariums.
• Use tap water as feed water.
  1. The water used should meet the drinkable criteria of tap water.
  2. Do not use in places of high temperatures such as a bathroom.
  3. Do not use in places of high humidity or temperature.
• The end user has to be informed to keep at least 20 cm separation with the antenna while this end product is installed and operated.
• Operation is subject to the following two conditions:
  1. this device may not cause harmful interference and
  2. this device must accept any interference received, including interference that may cause undesired operation.

READ AND SAVE THESE INSTRUCTIONS

www.cowaymega.com

Documents / Resources

References

• Installation & Maintenance Instructions for Bidets & Water Purifies – Cowaymega
• Cowaymega - Air Purifiers, Water Filters & Bidet Toilet Seats

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Coway Aguamega 200C - Water Purifier Manual
