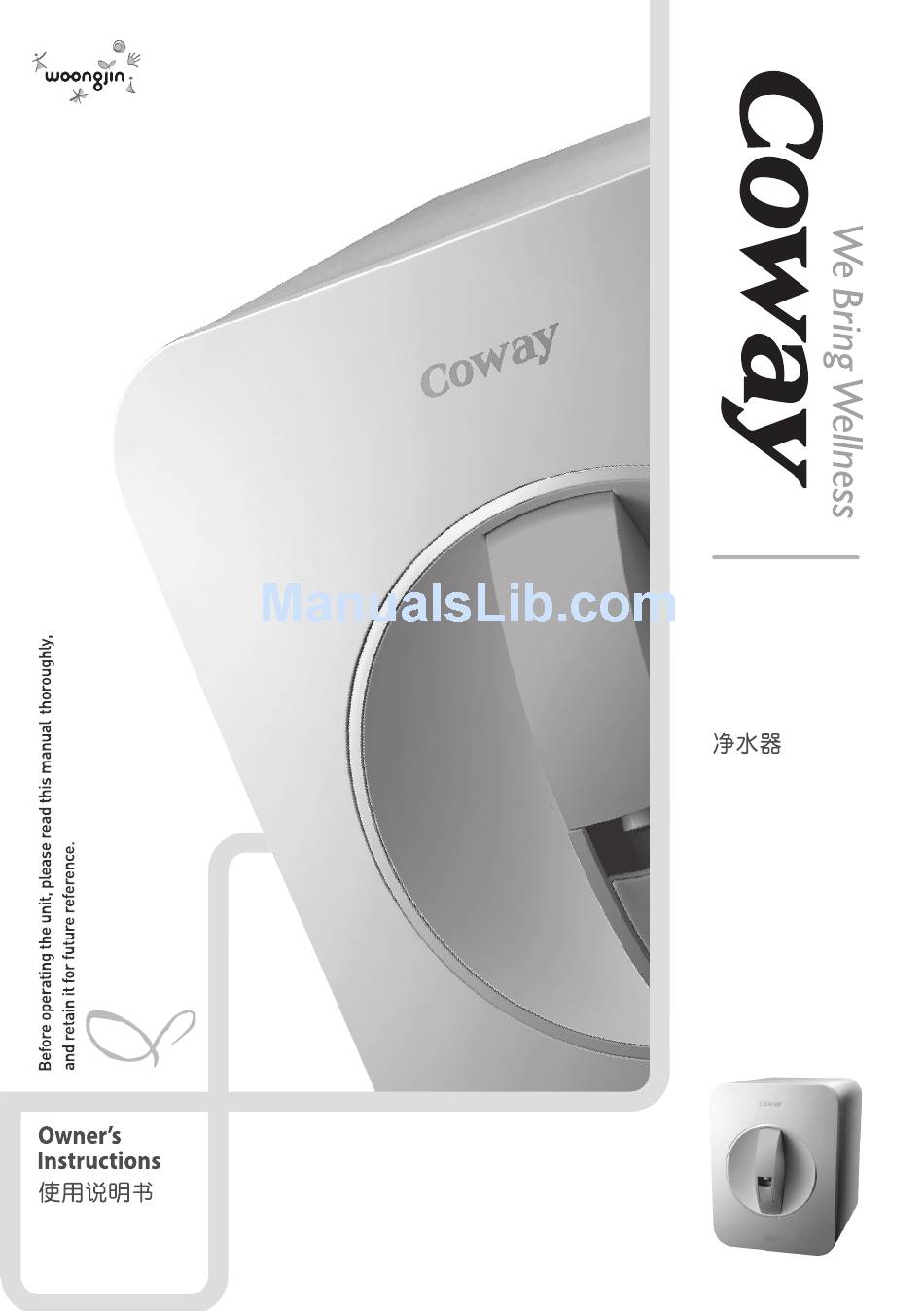

- Page 1 P-07QR/L/U WATER FILTRATION DEVICE...
-
Page 2: Table Of Contents
PARTS NAME ………………………… 04 SPECIFICATION ……………………… 09 - Front / Rear …………………………… 04 WATER FILTRATION PROCESS …… 04 - P-07QR/L …………………………… 04 - P-07QU ……………………………… 05 INSTALLATION ……………………… 05 HOW TO USE ………………………… 06 - To Drink Room Water ……………… 06... -
Page 3: Safety Information
(P-07QR only) Otherwise, fire may occur as a result. When you don’t use for a long time, close the main water supply valve and unplug. (P-07QR only) Otherwise, electric shock or fire may occur as a result. Do not attempt to repair the power cord. - Page 4 SAFETY INFORMATION Do not open, repair, or modify the unit. (P-07QR only) Otherwise, electric shock or product damage may occur as a result. Warning: If not observed, serious physical injury or property damage may occur as a result. Do not install the product on a sloped floor.
-
Page 5: Parts Name
PARTS NAME Front / Rear Sliding lever Power cord (P-07QR) Extraction faucet Top cover Cup-touch lever Main water Inlet hose Front cover (Orange) Daily life water outlet hose (Blue)(P-07QR, P-07QL) WATER FILTRATION PROCESS P-07QR/L Step 1, 2 : Neo-sense filter This Neo-Sense filter has the functions to remove particulates, dissolved organic and inorganic impurities. -
Page 6: P-07Qu
WATER FILTRATION PROCESS P-07QU Step 1, 2 : Neo-sense filter This Neo-Sense filter has the functions to remove particulates, dissolved organic and inorganic impurities. It also has the function to remove chlorine, volatile organic compounds(VOC’s). Step 3 : Post-carbon block filter This post-carbon block filter has the functions to remove smell induction material and fine particles or dust and to improve taste of water. -
Page 7: How To Use
3. Connect the faucet with the adaptor. Shall install the adaptor with connector on the cold water pipe. 4. Connect 1/4 inch orange tubing with the connector on the adaptor. Flush water through each filter at least 5 minutes before Connection. -
Page 8: Filter Replacement
12 months Ceramic filter 12 months Filter Replacement Method 1. After pulling the power cord necessarily (P-07QR only), close the main water supply valve and drain the water inside of the water ▶ purifier completely. 2. Please separate the top cover and the front cover. - Page 9 3. Separate the fitting connected to the filter to replace and then replace the filter. (Separate the fitting using an appropriate tool.) ▶ - By changing the filter and connecting the fitting and the hose precisely, check that there is no leakage and drain the first purified water necessarily. Tips 4.
-
Page 10: Specification
SPECIFICATION Product Name Water Filtration Device Model P-07QR P-07QL P-07QU Purified Method Reverse Osmosis USA : 120 V~ 60 Hz CHINA THAILAND MALAYSIA : Rated Voltage ` 220 V - 240 V~ 50 Hz/60 Hz Power Consumption 16 W Tank Capacity 7.1 L... - Page 19 USA : 120 V~ 60 Hz CHINA THAILAND MALAYSIA : 220 V - 240 V~ 50 Hz/60 Hz 7.1 L...
- Page 26 USA : 120 V~ 60 Hz CHINA THAILAND MALAYSIA : 220 V - 240 V~ 50 Hz/60 Hz 7.1 L...
- Page 27 MEMO...
- Page 28 MEMO...
- Page 29 MEMO...
- Page 31 Call Center : (213) 386-9900 / (213) 480-1600 FAX : (213) 386-3990 Call Center : 001-66-2-661-8620 MALAYSIA 中国 Add : Woongjin Coway (M) SDN, BHD 32-1, 地址 : 辽宁省沈阳高新区浑南产业区72-2 号 Wisma UOA No.19 Jalan Pinang, 50450. 全国客户电话 : 400-818-8100 Kuala Lumpur 客户咨询中心电话...
- Page 32 1208814 Made in Korea www.coway.com...
