  • Page 1 CHP-18AR Water Filtration Device • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
  • Page 2 FEATURES Hot water temperature control function You can control the water temperature using the Hot-Warm Water Temperature Control Dial. Mood lamp function If you activate the mood lamp function, the mood lamp is lit when the light sensor senses insufficient light. Power saving function using the ECO mode If you activate the power saving function, the number of comp and heater operations is automatically control and the power consumption is reduced.

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway water filtration device. Thank you for using Please read this User Manual to learn about proper usage and maintenance of the product. When a problem occurs while using the product, it can be solved by referring to the instructions in this manual.

  • Page 4: Safety Information

    SAFETY INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. for 220 V - 240 V , 50 Hz use only Danger : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 5 • Do not place dishes or containers of water, drugs, food, or small metal objects on top of the product. • Immediately unplug and call the customer service center if the unit makes a strange noise or odd smell. • Do not put a candle, cigarette or any other flammable object on •...
  • Page 6 SAFETY INFORMATION Caution : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or damage to the product or other properties. • Use or place the unit on a level area and do not apply force to the unit.

  • Page 7: Parts Name

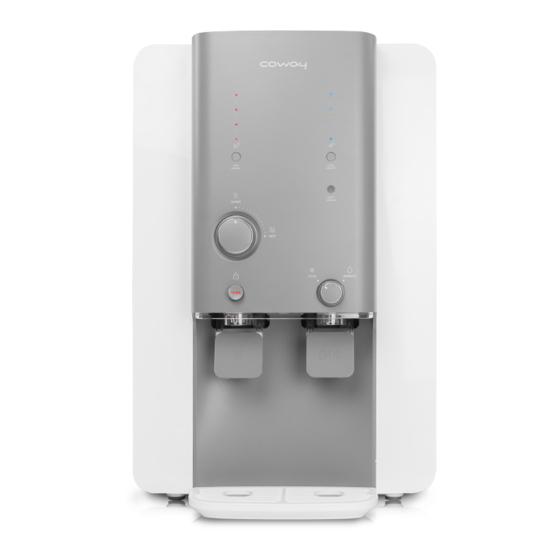

    PARTS NAME Front Front Cover Indication Part Light Sensor Hot/Warm Water Temperature Control Dial Cold/Ambient Water Changeover Dial Hot Water Safety Button Cup-Touch Lever Deco Faucet Back Condenser Rear Cover Power Cord Outlet(Blue) Inlet(Orange)
  • Page 8 PARTS NAME Side ECO(Power Saving) Mode Selection Button Mood Light Selection Button Low Water Level Indicator...

  • Page 9: Water Filtration Process

    WATER FILTRATION PROCESS CHP-18AR 1, 2 Step : Neo-sense Filter This neo-sense filter has the functions to remove particulates, dissolved organic and inorganic impurities. It also has the function to remove chlorine, volatile organic compounds(VOC’s). Step 3 : Membrane Filter (RO) RO membrane filter has the function to remove water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc.
  • Page 10 BUTTONS AND INDICATORS Indication part Hot water Cold water temperature indicator temperature indicator Hot water Cold water mode lamp mode lamp Warm water temperatute indicator Hot water indicator Hot water temperature Hot water mode lamp indicator When selecting hot water mode, the indicator lights up.
  • Page 11 Indication part Light sensor Ambient water indicator Cold water indicator Low water level Indicator Lock indicator Lock indicator Light sensor The indicator is on when the lock This sensor detects the surrounding feature is selected. illumination of the product. Ambient water indicator Cold water indicator Ambient water can be extracted when Cold water can be extracted when...
  • Page 12 BUTTONS AND INDICATORS Control part Cold water mode selection button Cold/Ambient water changeover dial Hot water mode selection button ECO(Power saving) mode selection button Hot/Warm water Mood light temperature selection button control dial Hot water safety button Hot water mode selection button Cold water mode selection button Press this button to select/deselect hot Press this button to select/deselect cold...
  • Page 13 INSTALLATION 1. Close main water supply valve to separate the faucet. 2. Wind the teflon tape on the adaptor and fit it to the pipe. Do not turn the water pipe. 3. Connect the faucet with the adaptor. Please install the adaptor with connector on the cold water pipe.
  • Page 14 HOW TO GET THE DESIRED WATER How to Get Cold Water Turn the Cold/Ambient water changeover dial counter clockwise and push the cup-touch lever. Press the cold water mode selection button and check if the cold water mode indicator is turned on. ▶...
  • Page 15 How to Get Hot Water Turn the Hot/Warm water temperature control dial to the hot water position, press the safety button and then push the cup-touch lever. Press the hot water mode selection button and check if the hot water mode indicator is turned on. Pressing the safety button just once is enough.

  • Page 16: How To Install

    HOW TO INSTALL Installation Guide Tap water valve For own dedicated 220 V - 240 V~, 50 Hz AC only electric outlet Connect the orange tap water input hose to 1 the water pipe. Connect the 2 residential water output hose. Tap water input hose (Orange) connection Residential water output hose(Blue) connection...

  • Page 17: How To Clean

    HOW TO CLEAN How to Clean Inside Water Tank 1. Press and hold down each of the Cold and Hot water buttons 2~3 Seconds on the front panel of the product for 2~3 seconds. 2. Please drain and store the water inside the water filtration device completely using the draining hose and the cold/ambient water extraction faucet.
  • Page 18 HOW TO CLEAN 5. Separate the Antibacterial filter from the inner water tank cover and clean the Antibacterial filter by washing it in the drained water. ▶ 6. Wipe the inside of storage tank with a soft cloth. 7. Wash the storage tank with the drained water. * Turn the Cold/Ambient dial to the cold water direction and lift the faucet lever upwards completely to extract the entire cold water.
  • Page 19 8. Install the Antibacterial filter into the inner water tank cover by turning the filter, closing the inner water tank cover and closing the fixing clips (6 points) of the inner water tank. ▶ 9. Plug the power plug. Open the main water supply valve. 10.

  • Page 20: How To Clean The Tray

    HOW TO CLEAN How to Clean the Tray 1. The tray separation method You can easily separate the tray by pulling the front part of the the tray forward. 2. The tray assembling method Simply push the tray hook slightly after sticking it onto the product. How to Clean Faucet Deco 1.

  • Page 21: Filter Replacement

    The filter change cycle may vary within the range of expected replacement cycle depending on the feed water quality. The period for filter change is calculated based on 10 L water usage per day for a household of 4 members. Tips CHP-18AR Expected Replacement Cycle Filter name Reverse osmosis...

  • Page 22: How To Replace The Filter

    HOW TO REPLACE THE FILTER 1. Close the main water supply valve after unplugging the power cord, and drain the water inside of the water filtration device. ▶ 2. Separate the top cover. 3. Remove the 2 fixing screws with a screwdriver. Remove one cap-faucet from the top right side of the product and insert it into the cold/ambient water faucet on the right side of the product.
  • Page 23 4. Raise the lever for the hot water faucet on the left side of the product. In the case of the cold/ambient water faucet, lift the lever on the right side of the product. (Since you need to lift the lever when replacing the front cover, water may leak for a certain duration if there is water in the tank.) Hold the top of the front cover, pull it forward to separate it, and then disconnect all the connected cables to separate it completely.
  • Page 24 HOW TO REPLACE THE FILTER 6. Connect all the separated cables, align the 3 holes of the front cover and the 3 buttons, and close the cover by pushing it towards the product. After closing the front cover, re-place one cap-faucet on the top of the product. ▶...
  • Page 25 TROUBLESHOOTING The water filtration device may operate abnormally because the user is unfamiliar with the product or due to some other reasons and not because of a product malfunction. In such a case, problems can be easily solved without help from the service center by checking the following. If the problem is not solved after checking the following, please call the service center.
  • Page 26 TROUBLESHOOTING Symptom Check Measures to take • Is the mood lamp function lamp turned on? Press the mood lamp function button to turn it on. The mood lamp is not turned off. The mood lamp is turned on when the room illumina- •...
  • Page 27 ▶ Without any prior notice, all or parts of the product are subject to change for the purpose of improving the performance of the product. MALAYSIA Add: COWAY (M) SDN. BHD Level 20, Ilham Tower, No. 8, Jalan Binjai, 50450 Kuala Lumpur.
  • Page 28 WATER FLOW DIAGRAM CHP-18AR Storage DFLC tank Cooling Check Heating tank Fitting tank Hot Water Drain Feed Water Hot/Warm Cool/Room Disposed Water Water Water Valve Disposed Water Booster Pump...
  • Page 29 MEMO...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 MADE IN KOREA 9232461 www.coway.com...
