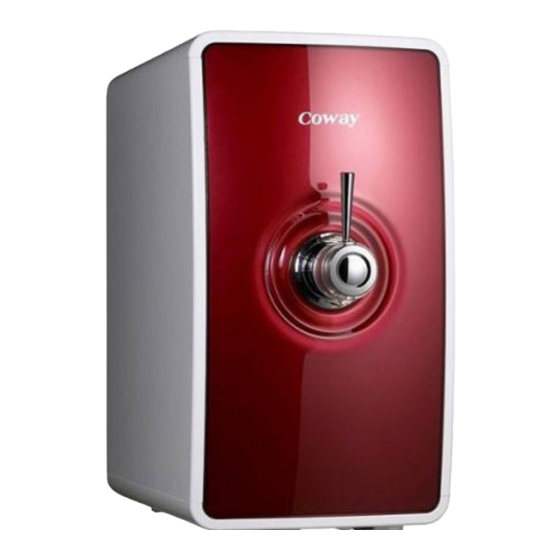

- Page 1 Water Filtration Device P-07CL • For your safety and proper use of the product, please read this User’s Manual before use. • Warranty card is included in this User’s Manual.
- Page 2 FEATURES 1. Continuous extraction function If you let the coke lever down, as you can extract the water continuously in a state of stopped lever, it is convenient. Continuous Continuous extraction extraction 2. Uniform water pressure keeping function In the area with the high water pressure, it protects the inside of the product from the high water pressure by providing a main water with an uniformed water pressure. Uninformed water Uninformed water pressure keeping pressure keeping 3. Closed tank for preventing the secondary pollution It is the hygienic by applying the extra closed structure Secondary Secondary to the inner tank to preventing the secondary pollution due to pollution pollution the intrusion of a dust, worm, and other foreign body.
-
Page 3: Table Of Contents
DEAR CUSTOMERS Coway Water Filtration Device Thank you for using Please read this Users’ Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the User’s Manual. As this manual contains the product warranty card, please keep it in a safe place. This system conforms to NSF/ANSI 42 for aesthetic chlorine reduction and NSF/ANSI 53 for VOC reduction as verified and substantiated by test data. This system conforms to NSF/ANSI 58 for the reduction of pentavalent arsenic, barium, cadmium, selenium, radium 226/228, trivalent chromium, hexavalent chromium, lead, nitrate/nitrite as verified and substantiated by test data. See performance data sheet for individual contaminants and reduction performance. This system is acceptable for treatment for influent concentrations of no more than 27 mg/ L nitrate and 3 mg/L nitrite in combination measured as N and is certified for nitrate/nitrite reduction only for water supplies with a pressure of 280 kPa(40 psi) or greater. CONTENTS FOR INFORMATION HOW TO USE SAFETy iNFORMATiON . . . . . . . . . . . . . . . . . . . 3 iNSTAllATiON PRECAUTiONS . -
Page 4: Safety Information
SAFETy INFORMATION Be careful to keep this safety information. Please read this safety information carefully to ensure your safety and to prevent possible property damage or loss. If not observed, If not observed, If not observed, slight serious injury or serious injury or injury or property even death could property damage damage could occur. Danger Warning Caution occur. could occur. Installation safety Do not install near a Do not install the heating device . product on a sloped floor . -
Page 5: Others
Do not put the candle, a Do not place any light for cigarette on the containers with water, products . medicine, food, small metallic objects, or any Otherwise, fire may occur as flammable material on a result. the top of the product . In the case foreign material gets inside the product, electric shock, fire, product damage may occur as a result. -
Page 6: Parts Name
PARTS NAME Front Extraction Lever Room water Extraction Faucet Front Cover Rear Top Cover Inlet(Orange) Outlet(Blue) -
Page 7: Water Filtration Process
WATER FILTRATION PROCESS The filter is the core technology of the filtration system. If you don’t use qualifying filter or if you use an old filter that has expired, the system performance may degrade. The 5-step Water Filtering System Step 1, 2 : NEO-SENSE FilTER This neo-sense filter has the function to reduce aesthetic chlorine, odor, volatile organic compounds(VOC’s). Step 3 : RO MEMbRANE FilTER RO membrane filter has the function to reduce water contaminants such as pentavalent arsenic, barium, cadmium, selenium, radium 226/228, trivalent chromium, hexavalent chromium, lead, nitrate/nitrite. Step 4 : iNNO-SENSE FilTER This inno-sense filter has the functions to reduce smell induction material and to improve taste of water. It also has the function to reduce aesthetic chlorine, volatile organic compounds(VOC’s). Step 5 : CERAMiC FilTER Reject Water CERAMIC... -
Page 8: Installation Precautions
INSTALLATION PRECAUTIONS The summary for the proper installation of the water filtration device 1 . Close main water supply valve to separate the faucet . 2 . Apply the teflon tape on the adaptor and fit it to the pipe . Do not tum the water pipe . - Page 9 Please check before use! • Open the main water supply valve. The main water must be supplied to operate the water filtration device normally. • After installing the product Get rid of the saved water above the full water in the inner water tank 2 times or more to use. • When you didn’t use for a long time If you saved the water for a long time or you didn’t use, drain the water inside of the water filtration device completely and remove the newly filtered water one time to use. • Regular filter replacement It is important to replace the filter regularly to maintain water quality as it is designed. If the filter is overused beyond its service life, the performance of the water filtration device deteriorate. Do not miss the filter replacement cycle. When you don’t use for a long time, close the main water supply valve. Tips...
-
Page 10: How To Use
HOW TO USE To drink the room water If you pull the extraction lever downward, you can drink the filtered water. To extract continuously Please fix the lever by letting extraction lever down about 90˚. -
Page 11: Installation
INSTALLATION Follow the instruction for installation Main water supply valve Connect the orange color inlet tubing to the tap water supplying pipe. Connect the outlet tubing Outlet tubing (Blue) Inlet tubing (Orange) - Page 12 Water filtration device installation place 2 Please install at the place where it is 10 cm or more off from the wall and the bottom is flat and firm. 1O Cm After installing the water filtration system Please empty the water tank filled with filtered water two times after the product installation. Cold water plumbing Hot water Pipe Please connect the source water. Make sure that the source water is not from hot water line. If you use hot water as source water, then it will cause permanent damages to RO membrane and severely degrade the product performance. To maintain optimal product performance, consult a Coway engineer for the detailed installation methods. Tips There may be some water remaining inside of the filter which was used to test the product during inspection process at the factory. Please feel at easy and use as it isn’t the used product. Don’t reuse the main water supply valve and hose that was previously used when you re-install the product.
-
Page 13: Cleaning Method
CLEANING METHOD Storage tank 1 . Close the main water supply valve . 2 . Please empty the water tank completely using the continuous extraction method (See P .9) . 3 . Please remove the top cover, and then un-hook the fixed clip holding the top cover of the water tank . - Page 14 CLEANING METHOD 4 . Please install again after separating the ceramic filter from the water tank cover and shaking and cleansing in the drained water . 5 . Please wipe the surface of the storage tank with soft clothes . 6 .
- Page 15 8 . Close the upper cover, and open the main water supply valve . Close the storage tank cover completely. Insects or other foreign particles can be entered. Tips When you clean the storage tank, don’t use any chemicals or detergent. If you don’t clean chemicals or detergent cleanly, it can be harmful to the body. - Keep the surroundings clean and clean the storage tank once per two months.
-
Page 16: Filter Replacement
FILTER REPLACEMENT Filter Filter is a critical component for a water filtration system. Replacing authorized filters at a specified replacement cycle is important to maintain the water quality, and a proper system operation. Please replace filters at a specified replacement cycle. For replacement filters, please contact Coway authorized dealers and distributors. Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product. The source water quality can shorten the filter replacement period. The period for the filter exchange is made based on 10 L use in a day for house use(4 people based) use for business. P-07Cl Part No. Names of Filter Replacement Cycle WJNF8-S Neo-sense filter 6 months WJMF8-20-S Ro membrane filter 20 months WJIF8-S Inno-sense filter 18 months WJCC-02 Ceramic filter 12 months About filter replacement cycle... -
Page 17: Filter Replacement Method
FILTER REPLACEMENT METHOD 1 . Close the main water supply valve and drain the water inside of the water filtration device (See P .12) . 2 . Separate the top cover and the front cover . (Remove the 2 fixing screws at the top of the product and then separate the front cover .) Don’t pull the Cup-touch Lever with the excess power. - Page 18 FILTER REPLACEMENT METHOD 3 . After separating the fitting connected to the filter trying to replace, please replace the filter . (Separate the fitting using the proper tool .) When you are replacing filters, please make sure that a corresponding filter and a hose are firmly connected and that there is no leakage. It is recommended to empty Tips the water tank filled with the filtered water at least one time right after the filter replacement. 4 . Close the front cover aligning the grooves and then fasten the 2 screws fixing the front cover .
-
Page 19: Troubleshooting
TROUBLESHOOTING The water Filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items. If you can’t solve the problem after checking the following items, please call the Service Center. Symptom Check Measures to take • Did you clean the storage tank? Clean the storage tank. The water tastes • You didn’t use the water filtration device Get rid of the saved water and clean the weird. for a long time. storage tank. • Isn’t it about time to change the filter? Request the filter replacement. • Is the water supply cut or isn’t the water Open the main water supply valve. supply valve closed? The water doesn’t • The water extraction faucet is out of come. In this case, please contact a service center. order. • Did you miss the filter replacement times? Request the filter replacement. • Isn’t it about time to change the filter? Request the filter replacement. • Didn’t you close the main water supply The water is Open the main water supply valve. -
Page 20: Specifications
SPECIFICATION Product Water Filtration Device Model P-07CL Filtration Method RO(Reverse Osmosis) Tank Capacity 3.9 L Dimension 200 mm(W) × 390 mm(D) × 370 mm(H) Working Temperature 5 °C - 35 °C Production Rate 76.8 L/d(25 °C, 138 kPa) Working Pressure 138 kPa – 827 kPa Net Weight 4.5 kg • The water amount can be differentiated according to the water pressure and the water temperature. • The water tank capacity is the amount by the size and can be different from the extraction capacity. • Without any prior notice, all or parts of the product are subject to change for the purpose of improving the performance of the product. • Refer to Performance data sheet for individual contaminants, reduction performance and general operating information. -
Page 21: Water Flow Diagram
WATER FLOW DIAGRAM P-07Cl... -
Page 22: Performance Data Sheet
Water Filtration System Performance Data Sheet brand: Neos Model: P-07Cl This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 58 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, and 58. Max. Allowable Average Average Minimum Average Substance Concentration Influent Effluent Percent Percent (mg/L) (mg/L) (mg/L) Reduction (%) Reduction (%) Arsenic (Pentavalant) 0.010 0.05 0.006 79.1 87.7 Barium 83.5 86.6 Radium 226/228... - Page 23 • For parts and service availability, please contact your local dealer or Coway. • This system is acceptable for treatment of influent concentrations of no more than 27 mg/L nitrate and 3 mg/L nitrite in combination measured as N and is certified for nitrate/nitrite reduction only for water supplies with a pressure of 2.8 kgf/cm (40 psi) or greater. • A nitrate/nitrite sampling kit should be used to monitor the nitrate/nitrite levels in your product drinking water at least every six months. Kits maybe purchased from your local dealer or Coway. • This system has been tested for the treatment of water containing pentavalent arsenic (also know as As(V), As(+5), or arsenate) at concentrations of 0.050 mg/L or less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic. This system is to be used on water supplies containing a detectable free chlorine residual at the system inlet or on water supplies that have been demonstrated to contain only pentavalent arsenic. Treatment with chloramines (combined chlorine) is not sufficient to ensure complete conversion of trivalent arsenic to pentavalent arsenic. Please see the Arsenic Facts section of this Performance Data Sheet for further information. • Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. • The product water should be tested every 6 months to ensure that the contaminants are being reduced effectively. Please contact your local dealer or Coway to initiate this service. • This reverse osmosis system contains a replaceable treatment components, critical for the effective reduction of total dissolved solids and that product water shall be tested periodically to verify that the system is performing properly. Replacement of reverse osmosis component should be with one of identical specifications, as defined by the manufacturer, to assure the same efficiency and contaminant reduction performance. • The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality. Model of Filter Type Usable period (months) COST US $ WNF8-S NEO-SENSE FILTER 46.00...
- Page 24 1,1,2-trichloroethane 0.005 0.150 > 99 0.0005 trichloroethylene 0.005 0.180 > 99 0.0010 trihalomethanes (includes): chloroform (surrogate chemical) bromoform bromodichloromethane 0.080 0.300 0.015 chlorodibromomethane xylenes (total) 0.070 > 99 0.001 1. These harmonized values were agreed upon by representatives of USEPA and Health Canada for the purpose of evaluating products to the requirements of this Standard. 2. Influent challenge levels are average influent concentrations determined in surrogate qualification testing. 3. Maximum product water level was not observed but was set at the detection limit of the analysis. 4. Maximum product water level is set at a value determined in surrogate qualification testing. 5. Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough point as determined in surrogate qualification testing. 6. The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upperoccurrence concentration which would produce a maximum product water level at the MCL. Woongjin Coway.,Ltd. 658, Yugu-Ri, Yugu Eub, Gongju-Si, Choongchungnam-Do, Korea Tel.: 82-41-850-7879 Fax.: 82-41-841-7816...
- Page 25 MEMO...
-
Page 26: Warranty Card
WARRANTy CARD OR WARRANTy lETTER ONE yEAR liMiTED WARRANTy WATER FiRTRATiON DEViCE P-07Cl(“PRODUCT”) Model: Serial Number: Customer Name: (“OWNER”) Date of Purchase: What This Warranty Covers: Limitations and Exclusions: Commencing with the date of purchase of the TO THE EXTENT PERMITTED BY APPLICABLE LAW, Product and continuing for a period of one year, COWAY DISCLAIMS ANY OTHER WARRANTY if manufacturing defects in the Product cause the EXPRESS OR IMPLIED, THAN THAT GUARANTEES Product to not operate properly for its intended FOR HEREIN. THIS WARRANTY IS IN LIEU OF AND use, then subject to the exclusions, conditions, and EXCLUDES ALL OTHER WARRANTIES, PROVIDES, limitations contained herein, COWAY at its sole CONDITIONS AND REPRESENTATIONS, EXPRESS option will repair or replace the Product. - Page 27 Warranty is conditioned upon the following : If the Product fails to operate for its intended purpose, then notify Coway or its a) The defect or damage is not caused Representative Agency within 48 hours or by or is the result of : abnormal use or within the next business day after discovery conditions; improper storage, unauthorized of any defect in the Product. The OWNER must modifications or repair; misuse, neglect, give written notice to COWAY no later than accident, alteration, improper installation or thirty (30) days after a defect is discovered or other acts that are not the fault of Coway or should by reasonable diligence have been the manufacturer of the product or that are discovered. Claims under this Warranty will not covered by the manufacturer’s warranty; require proof of purchase by the OWNER. b) The Product has not been altered, modified or repaired without prior written approval of COWAY; c) The OWNER has notified COWAY in writing of any failure of the Product covered by this Warranty within thirty (30) days following such failure; d) There has been no misuse, abuse or negligence with respect to the Product on the part of the OWNER. Add : WOONGJIN COWAY USA, INC. 695 SOUTH VERMONT, STE. 110(SOUTH TOWER) LOS ANGELES, CA 90005, USA Call center. : (213) 386-9900 / (213) 480-1600 Fax. : (213) 386-3990...
- Page 28 MADE IN KOREA 1210229...
