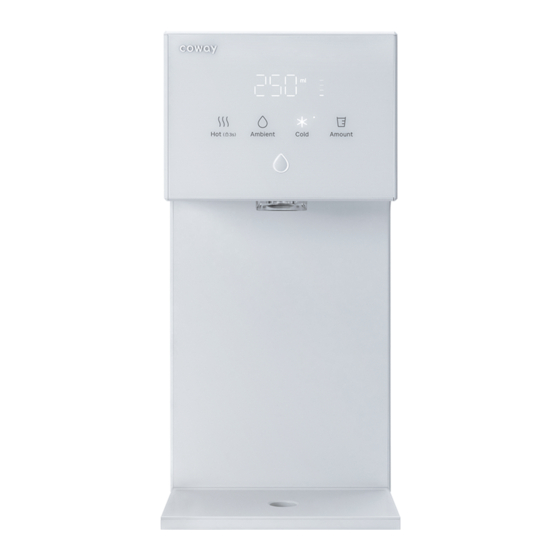

- Page 1 Coway Water Purifier User Manual CHP-1201N For your safety and proper use of the product, please read this user manual before use. Please take cautions for proper storage of this product.
- Page 2 FEATURES Direct water purification system Nanotrap™ filter removes microorganisms, bacteria and virus. Plus Inno-Sense filter (D) removes odor-causing substances (D) to improve water taste. Minimalist design The slim design makes it easy to use even in small spaces. Electronic cooling system Our cooling system does not use coolant, so it is an environment friendly water purifier system.
-
Page 3: Table Of Contents
DEAR CUSTOMERS COWAY Coway Water Purifier. Thank you for using Please ensure that you thoroughly review this User Manual to ensure the proper usage and maintenance of the product. You can consult the User Manual for guidance on resolving product-related issues while using it. -
Page 4: Safety Information
SAFETY INFORMATION Please follow all the instructions for your safety! These instructions are to keep you safe and to prevent property damage. Please use the product correctly after carefully reading the precautions. Death or serious injury may Severe injury or property Minor injury or property occur if the instruction is not damage may occur if the... -
Page 5: Installation
Do not arbitrarily connect or modify the power plug. There is a risk of electric shock or fire. If the power plug is damaged, do not attempt to replace the adapter. Instead, contact Coway Careline for further assistance. There is a risk of electric shock or fire. Installation Do not install near sources of heat. -
Page 6: During Use
During Use Please lock the tap water valve and disconnect the power plug and contact Coway Careline if there is water leakage inside the product or if water is puddling around the product. There is a risk of electric shock. -
Page 7: Others
Product Information Others Disconnect the power plug prior to cleaning. There is a risk of electric shock or fire. Do not arbitrarily open, repair, or remodel the product. There is a risk of electric shock or fire. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction in the use of the appliance by a person responsible for their safety. -
Page 8: Parts Name
PARTS NAME Front/Back Control panel/indicators Faucet Water tray cover Water tray Top cover Radiator grille Power cord Tap water inlet Reject water outlet Drain faucet (cold water) Accessories Installation materials Cooling Fitting Hand valve Fitting User manual Extended Tie cable Tie cable Drain hose keeper... -
Page 9: Water Purification Process
WATER PURIFICATION PROCESS Product Information The filter is the most important part of a water purifier. If you don't use a genuine filter or use a filter for a very long time, even if it is a genuine filter, filter performance will deteriorate. The following is a filter function indication under the Drinking Water Management Act. -
Page 10: Check Before Use
CHECK BEFORE USE Please check before use! This product is for 220 V - 240 V ~ 50 Hz. Make sure to connect the power plug to a grounded 220 V - 240V ~ 50 Hz outlet. It requires a power supply to operate. Open the tap water supply valve. -
Page 11: How To Use
BUTTON AND INDICATORS How to use Indicators UV Care indicator Filter replacement Faucet replacement indicator indicator Amount and Hot water level temperature indicator indicator Water extraction amount indicator Filter replacement indicator Hot water level indicator The indicator turns on or blinks when It displays the selected temperature level of hot water. - Page 12 BUTTON AND INDICATORS Indicators Ambient water indicator Cold water Hot water indicator indicator Cold water Hot water lock temperature indicator indicator Amount Extraction indicator indicator Hot water indicator Hot water lock indicator The indicator turns on when The indicator turns on when hot water is selected.
- Page 13 How to use Buttons Hot water Cold water button button Ambient water Amount button button Extraction button Hot water button Ambient water button Touch it when you want to extract Touch it when you want to extract hot water. ambient water. Each time the hot water button is pressed, the water temperature changes.
- Page 14 BUTTON AND INDICATORS To turn cooling on/off Touch the cold water button for 3 seconds or longer and check to see if the cold water temperature indicator on the display is turned on. When it is turned on, it is in the ON status. * You can drink cold water about 30 minutes after turning on the cooling function.
- Page 15 How to use To use the all-lock function Press and hold the hot water and the ambient water buttons 3 sec. 3 sec. simultaneously for 3 seconds or longer to activate and deactivate all-lock function. * When the all-lock function is set, the hot water lock indicator turns on and all buttons are disabled.
- Page 16 25 °C, with a standby (warm-up) time of 5~6 seconds) - When hot water is extracted, white debris (lime) may occur depending on the conditions of use. If you find a white foreign substance, please contact our Cody or Coway Careline (1-800-888-111) * White foreign substance is lime, which is produced by heating of the minerals in water.
- Page 17 How to use To get ambient water Touch the ambient water button to select the ambient water. Touch the extraction amount button to select the desired amount of extraction, then press the extraction button to extract ambient water. During extraction, if you press the extraction button again, then extraction is stopped. * You can choose from 250 ml →...
- Page 18 TO GET THE DESIRED WATER To change the maintenance mode (visit maintenance/self-maintenance) To change the maintenance mode, press the hot water button and the amount button simultaneously for 3 seconds or longer to change the mode. The display will show 'CO' for visit maintenance mode and 'SE' for self-maintenance mode, each for 6 seconds.
- Page 19 UV STERILISATION How to use UV sterilisation actions After 6 hours of inactivity, the UV sterilisation function will run automatically. The operation takes a total of 25 minutes to complete, with 0 ~ 100% displayed on the screen. Pressing any button during the sterilisation will stop the operation and the product will be ready for use.
-
Page 20: How To Install
HOW TO INSTALL Installation Guide Tap water supply valve Radiator grille Only for 220 V - 240 V~ 50 Hz Tap water inlet Drain faucet (cold water) Reject water outlet ▶ Feed water supply condition : 20 psi, 3 LPM or higher... -
Page 21: Maintenance
(It is not a product malfunction.) - Please consult our technician for more details on installation to guarantee the optimal performance of the product. - Coway Careline (1-800-888-111) Some residual water used during post-manufacturing inspection may be Tips present in the filter. Do not be alarmed as it is not a used product. -
Page 22: How To Clean
HOW TO CLEAN Internal drain method 1. After removing the cap from cold water drain outlet on the back of the product, press the hot water and cold water buttons on the control panel at the same time for 3 seconds or longer to enter the mode. -
Page 23: How To Clean The Dust Filter
Maintenance How to clean the dust filter 1. How to remove the dust filter Open the filter cover, and pull out the dust filter at the back of the filter to remove it. 2. How to clean the dust filter Wash with a soft brush or cloth under running water. -
Page 24: How To Clean The Water Tray
HOW TO CLEAN How to clean the tray 1. How to remove the tray cover Lift up the tray cover, and pull the tray out from the water purifier. Wash the tray with a soft brush or cloth under running water. 2. - Page 25 Maintenance How to clean the faucet 1. Turn the faucet clockwise to remove it. 2. Wash the removed faucet under running water. 3. Wipe the faucet with a soft, dry cloth to remove water. 4. After cleaning, reassemble the faucet by turning it counterclockwise.
-
Page 26: Filter Replacement Cycle
Replace it with an genuine filter according to its replacement period. Cody will visit your home to replace the filters. * Please call Coway Careline (1-800-888-111) for filter replacement. Filter Replacement Cycle To maintain a consistent level of purified water quality, it is essential to regularly replace the filters. -
Page 27: How To Replace
HOW TO REPLACE Maintenance How to replace the filter 1. Place an empty cup under the water dispenser extraction hole without turning off the power. Slide the top cover back to open it. 2. Press the Push button on the light blue filter cover to open the filter cover. - Page 28 HOW TO REPLACE How to replace the flow path faucet 1. Pull the flow path faucet upwards firmly to remove it. Attach the new flow path faucet by pressing it down until you hear a 'click' sound. 2. Slide the top cover forward to close it, and press the extraction button to start flushing. * If you have not replaced the filter and the flow path faucet, press the cold water button to cancel.
-
Page 29: Troubleshooting
In such a case, problems can be easily solved without the help of Coway Careline by checking the following. Please contact Coway Careline (1-800-888-111) if you cannot resolve the issues after checking the followings:... - Page 30 TROUBLESHOOTING Symptom Check Countermeasure • Is the hot water lock indicator Unlock the hot water lock. turned on? This is an automatic shut-off • Do you hear a warning sound function that prevents the product's Hot water when you select hot water and do internal heater from overheating.
-
Page 31: Specification
SPECIFICATION Other Product Name Dazzie CHP-1201N_White, CHP-1201N_Gray Model Name Electrostatic adsorption method Water Purification Type 220 V - 240 V~, 50 Hz Rated Voltage Cool: 0.5 A, Heat: 2230 W - 2720 W, Total: 2240 W - 2730 W Power Consumption... - Page 32 Water Filtration System Performance Data Sheet Model : CHP-1201N This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 401 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, and 401.
- Page 33 • Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. • Refer to the owner’s manual for specific installation instructions, manufacturer’s limited warranty, user responsibility, and parts and service availability. • For parts and service availability, please contact your local dealer or Coway. Model of Filter Type...
- Page 34 The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upper occurrence concentration which would produce a maximum product water level at the MCL. Coway Co., Ltd. 136-23, yugumagoksa-ro, Yugu-eup, Gongju-si, Chungcheongnam-do, Korea...
- Page 35 MEMO Others...
- Page 36 9243885 www.coway.com.my...
