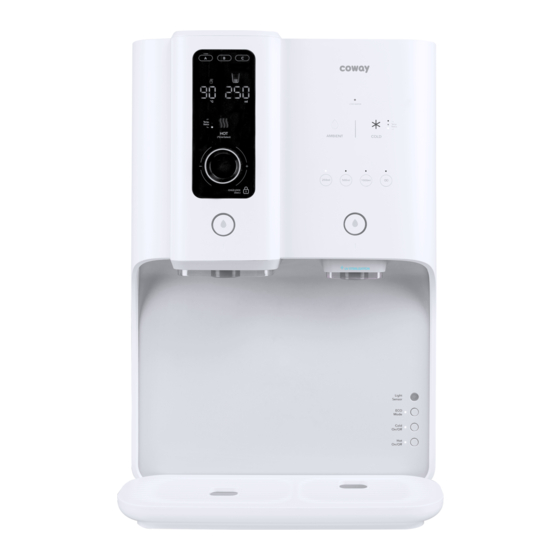

- Page 1 CHP-7310R Water Filtration Device • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
- Page 2 FEATURES Hot water temperature control capability You can select the temperature for hot water through the multi-level hot water temperature dial according to purpose of use. Precise extraction capability You can extract the precise amount of water according to purpose of use through the cold/hot/ambient water precision extraction function.
-
Page 3: Table Of Contents
DEAR CUSTOMERS Coway water filtration device. Thank you for using Please read this User Manual to learn about proper usage and maintenance of the product. When a problem occurs while using the product, it can be solved by referring to the instructions in this manual. -
Page 4: Safety Information
SAFETY INFORMATION Please follow all instructions for your safety! These instructions are for keeping you safe and to prevent property damage. Please use the product correctly after reading the precaution. When mortality or fatal injury When severe bodily harm or When minor bodily harm or is predicted for not following property damage is predicted... - Page 5 Please disconnect power, wipe clean, and dry prior to use when there is dust, water, etc. present on the pin and connector of the power plug. There is risk of electrocution and fire. Do not connect multiple products to one power outlet. Always use a separate socket for the product.
- Page 6 SAFETY INFORMATION When mortality or fatal injury When severe bodily harm or When minor bodily harm or is predicted for not following property damage is predicted property damage is predicted instruction for not following instruction for not following instruction Danger Warning Caution During Use...
- Page 7 Others Disconnect the power plug prior to cleaning. There is risk of electrocution and fire. Do not directly spray water on product for cleaning or use benzene or thinner to wipe the product. There is risk of electrocution and fire. Do not arbitrarily open, repair, or remodel the product.
-
Page 8: Parts Name
PARTS NAME Front Display unit Faucet Tray Back Back cover Condenser Power cord Residential water output hose (Blue) Tap water input hose (Orange) Connector for cooking water Accessory User Manual Drain hose Antibacterial filter... -
Page 9: Water Filtration Process
The essence of the water filtration system lies in the filters. Using a filter that is not certified or even using a certified filter for too long may reduce the filter performance. 5-step Water Filtration System (CHP-7310R) Step 1, 2 : Neo-Sense filter This neo-sense filter has the function of removing particulates, dissolved organic and inorganic impurities. - Page 10 PLEASE CHECK BEFORE USE Please Check Before Use! This product is for 220V - 240 V~, 50 Hz . Please connect the power plug to grounded 220 V - 240 V~, 50 Hz outlet. The water filtration device requires power supply to operate. ■...
- Page 11 BUTTONS AND INDICATORS Hot Water Indication Part User mode indicator Hot water purpose indicator Extraction amount by temperature indicator Hot water temperature Extraction amount indicator indicator Temperature indicator User mode indicator Hot water purpose indicator by temperature It activates the selected user indicator during user mode.
- Page 12 BUTTONS AND INDICATORS Hot Water Indication Part Low hot water indicator Hot water status indicator Hot water indicator Child lock indicator Hot water extraction indicator Hot water status indicator Hot water indicator Indicator turns on according to Indicator turns on once hot water is temperature of hot water.
- Page 13 Indication Part Low water level indicator Water filtration Light detection function indicator sensor Cold water function indicator Cold water status indicator Extraction amount Function ON/ indicator OFF indicator Extraction indicator Water filtration function Low water level indicator indicator Indicator is turned on when the water level of the internal tank is below low Indicator is turned on once water filtration water level.
- Page 14 BUTTONS AND INDICATORS Hot Water Control Part User button Hot water button Hot water temperature /Extraction control dial Child lock button Hot water extraction button User button Hot water button User’ s water consumption pattern is Use when you wish to extract hot water. remembered.
- Page 15 Control Part Water filtration button Cold water button Function ON/ OFF button Extraction amount button Extraction button Cold water button Water filtration button Use when you wish to extract cold water. Use when yoau wish to extract filtered water. Extraction amount button Extraction button Use when you wish to select desired Use when you wish to extract filtered...
- Page 16 BUTTONS AND INDICATORS ■ Using hot water function Press hot water button and check that the hot water function indicators are turned on the display unit. ∗ You can drink hot water about 30 minutes after turning on hot water function. - Configuring temperature for hot water Press hot water button and turn the dial once the temperature selection indicator blinks on the display unit to select temperature.
- Page 17 ■ Hot water memory function This function allows you to set frequently used hot water temperature and amount using the memory function for up to 3 memories. After that, you only need to press a button to extract the hot water. - Configuring temperature for hot water 1.
- Page 18 BUTTONS AND INDICATORS ■ Using cold water function Press cold water button and check that the cold water function indicators are turned on the display unit. Press COLD ON/OFF button of the product for a few seconds to turn off cold water function. ■...
- Page 19 HOW TO GET THE DESIRED WATER How to Get Cold Water Press cold water button, then press the extraction button. ▶ ▶ - If cold water is not being dispensed, please check that cold water indicator is turned on the display unit (Refer to P.13) Tips How to Get Ambient Water...
- Page 20 HOW TO GET THE DESIRED WATER How to Get Hot Water Press hot water button and then press extraction button once temperature selection indicator on the display unit blinks. ▶ ▶ - If hot water is not being dispensed, please press HOT ON/OFF button at the bottom of the product to check that the indicator is on.
-
Page 21: How To Install
HOW TO INSTALL Installation Guide Tap water valve For own dedicated 220 V - 240 V~, 50 Hz AC only electric outlet Cooking water connection Connect the orange tap water input hose to 1 the water pipe. Connect 2 the wasted water output hose. Tap water input hose (Orange) connection Residential water output hose(Blue) connection Cooking water connection... - Page 22 HOW TO INSTALL Be Careful! ■ ■ Where to install the water Water filtration installation filtration unit I location II Install the product in a cool part of the Allow a clearance of 10 cm or more behind the room, on an even surface, out of direct product, and level the water filtration unit.
-
Page 23: How To Clean
HOW TO CLEAN How to Clean the Internal Water Tank 1. Press COLD ON/OFF and HOT ON/OFF buttons at the bottom of the product to turn off the LED. Please lock the tap water valve. ▶ ▶ 2. Press cold water button (1), continuous extraction amount button (2), and extraction button(3) to completely discharge the water inside the water filtration device through the draining hose. - Page 24 HOW TO CLEAN 4. Use a screw driver (+) to loosen the two screws on the door side cover and discharge through the hot water discharge pipe (RED). ▶ ▶ 5. Push upper cover of the product to open, open the fixture clips(6) on the internal water tank, and lift up the internal water tank cover to open.
- Page 25 8. Use prepared water to wash out the internal water tank and connect the power plug. Use the discharge hose to completely discharge all water as well as initially filtered water before use. ▶ ▶ 9. Rotate antibacterial filter into the internal water tank cover, close the internal water tank cover, and close fixture clips(6) of the internal water tank.
-
Page 26: How To Clean The Tray
HOW TO CLEAN How to Clean the Tray 1. Instructions for the tray Disassembly Pull on the front of the tray for easy disassembly. 2. Instructions for the tray assembly Attach the tray hook to product and push gently. Please shut the internal water tank cover completely. Bugs and debris may enter the product. -
Page 27: Filter Replacement
The filter change cycle may vary within the range of expected replacement cycle depending on the feed water quality. The period for filter change is calculated based on 10 L water usage per day for a household of 4 members. Tips CHP-7310R Expected Replacement Cycle Filter Name Reverse Osmosis... -
Page 28: How To Replace The Filter
HOW TO REPLACE THE FILTER Replace the Filter! 1. Disconnect the power plug, lock the tap water valve, and discharge all water inside the water filtration device. (Refer to P.21) ▶ ▶ 2. Use a screw driver (+) to loosen the two screws on the door side cover. ▶... - Page 29 4. Please tighten the two separated door side screws and close. Connect the power plug. ▶ ▶ Please be sure to use the new filter after cleansing. - Neo-sense filter : Please assemble after cleansing with Neo-sense filter for about 1 minute. - Membrane filter (RO) : After cleansing with the main water passed Tips Neo- sense filter for about 5 minutes, please assemble it.
- Page 30 TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following tems.
- Page 31 Symptom Check Measures to take Please press the hot/cold water button to turn on hot/cold water function. Temperature of warm • Is the hot water or cold water indicator turned on? water may vary depending on temperature of hot/cold water. The water may be hotter or colder than usual •...
- Page 32 ▶ Water tank capacity reflects the size of the water tank, and may be different from what is dispensed from the filtration unit. ▶ For product improvement purposes, product specifications are subject to slight changes without prior notice. MALAYSIA Add: COWAY (M) SDN. BHD Level 20, Ilham Tower, No. 8, Jalan Binjai, 50450 Kuala Lumpur. Careline : 1800-888-111...
- Page 33 WATER FLOW DIAGRAM CHP-7310R Water Level Sensor (Flood/High/Medium/Low) Booster Pump Ambient Water Extraction Valve Ambient Water 7.8 L Water Source Input Ambient Water/ Cold Water Cold Water Extraction Extraction Valve Flow Sensor Cold Water 2.3 L Hot Water Disk Valve 3.4 L...
- Page 34 Water Filtration System Performance Data Sheet Model: CHP-7310R This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, 58, and 401 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, 58, and 401.
- Page 35 USEPA standard for drinking water) or less. The performance of the system may be different at your installation. Have the treated water tested for arsenic to check if the system is working properly. The RO component of the CHP-7310R system must be replaced every 20 months to ensure the system will continue to remove pentavalent arsenic.
- Page 36 6 The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upper occurrence concentration which would produce a maximum product water level at the MCL. Coway Co.,Ltd. 136-23, Yugumagoksa-Ro, Yugu Eub, Gongju-Si, Choongchungnam-Do, Korea...
- Page 37 MEMO...
- Page 38 MEMO...
- Page 39 MEMO...
- Page 40 9232463 www.coway.com...
