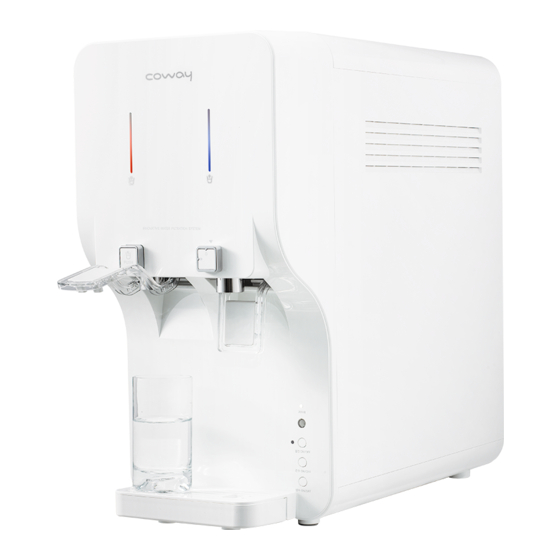

CHP-260L/N
Water Filtration Device
• This product can not be used if the voltage is different from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User's Manual before use.
• Warranty card is included in this User's Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHP-260L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coway CHP-260L

Summary of Contents for Coway CHP-260L

  • Page 1 CHP-260L/N Water Filtration Device • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
  • Page 2 FEATURES Optimal size and elegant design This slim, elegant design fits into even narrow kitchen spaces, making it convenient to use. Energy-saving function using the light sensor When Power Saving mode is set, the motor and heater automatically run less often, reducing the amount of power consumed.

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway Water Filtration Device Thank you for using Please read this Users’ Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the User’s Manual. As this manual contains the product warranty card, please keep it in a safe place.

  • Page 4: Safety Information

    • In the case the power cord is damaged, do not replace the cord yourself. Call Coway Service Center to have it replaced. • Do not install near a heating device. • When the water is coming inside of the product or there is a puddle on the product, call Service Center after closing the supplying valve and unplugging.
  • Page 5 • If our product produces a strange noise or odd smell, immediately unplug from the electrical outlet and call our Service Center. • Do not put the candle, a light for cigarette on the products. • Do not place any containers with water, medicine, food, small metallic objects, or any flammable material on the top of the product.

  • Page 6: Warning

    SAFETY INFORMATION Warning : If not observed, serious injury or property damage could occur. • If the electric outlet is wet, carefully unplug the unit and let the electric outlet completely dry before subsequent use. • Unplug the product before repair, inspection, or parts replacement.
  • Page 7 Caution : If not observed, minor physical injury or property damage may occur as a result . • The filtration device installation shall comply with applicable state and local regulations. • Use after closing the water tank cover completely inside of the product.

  • Page 8: Parts Name

    PARTS NAME Front Cold water and hot water temperature display Cold / Room water Changeover dial Hot Water Safety button Cold / Room water faucet Hot water faucet Hot water lever Cold / Room water lever Water level indicator Light sensor Function selection button and display Rear...

  • Page 9: Water Filtration Process

    If you don’t use qualifying filter or if you use an old filter that has expired, the system performance may degrade. The 5-step water filtering system (CHP-260L) STEP 1, 2 : NEO-SENSE FILTER This neo-sense filter has the functions to remove particulates, dissolved organic and inorganic impurities.
  • Page 10 WATER FILTRATION PROCESS The filter is the core technology of the filtration system. If you don’t use qualifying filter or if you use an old filter that has expired, the system performance may degrade. The 5-step water filtering system (CHP-260N) STEP 1, 2 : NEO-SENSE FILTER This neo-sense filter has the functions to remove particulates, dissolved organic and inorganic impurities.
  • Page 11 INSTALLATION PRECAUTIONS The summary for the proper installation of the water filtration device 1. Close main water supply valve to separate the faucet. 2. Apply the teflon tape on the adaptor and fit it to the pipe. Do not turn the water pipe. 3.
  • Page 12 INSTALLATION PRECAUTIONS Please check before use! Only connect the power cord to the voltage rating that matches it on the rating plate. • After installing the product Get rid of the saved water above the full water in the inner water tank 2 times or more to use. •...
  • Page 13 INDICATION / OPERATION PART Indication part 1 Hot Water function 2 Cold Water function on and Hot Water on and Cold Water 3 Water level indicator Temperature Indicator Temperature Indicator 4 Light sensor 5 Power Saving Mode Indicator Hot Water function on and Cold Water function on and hot water temperature cold water temperature...
  • Page 14 INDICATION / OPERATION PART Operation part Hot Water Cold - Room Water Safety button Selection dial Power Saving function selection button Hot Water Mode selection button Cold Water Mode selection button Power Saving function Hot Water function selection button selection button Use this to select/cancel selection of Use this to select/cancel selection of Power Saving Mode.
  • Page 15 ■ To use the Hot Water function Press the Hot Water button for 2 or more seconds and check that the Hot Water function is illuminated on the display and the Hot Water Temperature Indicator is illuminated. 2 seconds 2 seconds 2 seconds To turn off the Hot Water function, press the Hot Water function button for 2 or more seconds again.
  • Page 16 HOW TO USE To drink the cold water Press the Cold Water button and check that the Cold Water indicator is lit on the display. Turn the Cold Water - Room Water Selection dial to the right and push the touch lever. ▶...
  • Page 17 To drink the room water Turn the Cold Water - Room Water Selection dial to the left and push the Cup-Touch Lever. ▶ ▶ - If cold water is not dispensed from the water purifier, check that the Cold Water indicator is lit up on the display (see p. 11). Tips To dispense continuous room water Turn the Cold Water - Room Water Selection dial to the...
  • Page 18 HOW TO USE To drink the hot water Press the Hot Water Safety button and push the Cup- Touch Lever. Press the Hot Water function selection button and check that the Hot Water indicator is lit. Push the Hot Water Safety button once more. ▶...

  • Page 19: Installation

    INSTALLATION Follow the instruction for installation (CHP-260L) Main water supply valve voltage rating that matches it on the rating plate. Inlet tubing (Orange) Outlet tubing(Blue) Connect the orange color inlet tubing to the tap water supplying pipe. Connect the outlet tubing...
  • Page 20 INSTALLATION Follow the instruction for installation (CHP-260N) Main water supply valve voltage rating that matches it on the rating plate. Inlet tubing (Orange) Connect the orange color inlet tubing to the tap water supplying pipe. Inlet tubing (Orange)
  • Page 21 When the position is moved, connect the power cord when 30 minutes passes after installing. Cold water pipes To maintain optimal product performance, consult a Coway engineer for the water X detailed installation methods. There may be some water remaining inside of the filter which was used to test the product during inspection process at the factory.

  • Page 22: Cleaning Method

    CLEANING METHOD Storage tank 1. Hold the cold water/hot water function buttons at the front of the machine for 2-3 seconds each to turn it off and unplug the power cord. Lock the water supply valve. 2. Use the outlet tubing and cold/room water taps to completely drain all water from inside the purifier.
  • Page 23 5. Wipe the interior water tank surfaces with a soft cloth. 6. Rinse the interior water storage tank clean with water taken in advance from the machine, and then use the outlet tubing to completely drain. Run purified water through the product once and empty, and then use. 7.

  • Page 24: Gutter

    CLEANING METHOD Gutter 1. Detaching the gutter Pull the front of the gutter to detach it easily. 2. Reattaching the gutter Attach the gutter ring (hook) to the machine and then gently push. Completely close the interior water storage tank cover. Otherwise, insects or dirt may enter.

  • Page 25: Faucets

    Faucets 1. Turn the taps in a clockwise direction to detach. 2. Wash the detached taps in running water. 3. Remove moisture from the taps with a soft, dry cloth. 4. After cleaning is finished, turn the taps in a counterclockwise direction to reattach.
  • Page 26 Please replace filters at a specified replacement cycle. For replacement filters, please contact Coway authorized dealers and distributors.  Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product.

  • Page 27: Filter Replacement Method

    FILTER REPLACEMENT METHOD Exchange the filter 1. Close the water supply valve and completely drain all water from inside the product, and then pull out the power plug. ▶ 2. Remove fittings connecting the filter you wish to exchange, and then exchange the filter (use the correct tool to remove the fittings).
  • Page 28 TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items.
  • Page 29 SPECIFICATION Product Water Filtration Device Model CHP-260L CHP-260N Power Supply Refer to the rating plate. Room water 2.5 L Water Cold water 2.3 L tank Hot water 1.0 L capacity Total 5.8 L Dimension 260 mm (W) x 483 mm (D) x 500 mm (H) 5 º...
  • Page 30 WATER FLOW DIAGRAM CHP-260L CHP-260L Disposed Water Valve (General) Storage tank Over FEED-NOS Heating VALVE Cooling Heating tank tank Hot Water Drain Cool/Room Water Water Feed Water Disposed Water CHP-260N CHP-260N Constant Flow Fitting Storage tank Over FEED-NOS Heating VALVE...
  • Page 31 MEMO...
  • Page 32 MEMO...
  • Page 33 MEMO...
  • Page 34 INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application specified REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published specifications PRODUCT OTHER THAN THIS WARRANTY.
  • Page 35 If the Product fails to operate for its accident, alteration, improper installation or intended purpose, then notify Coway or its other acts that are not the fault of Coway or Representative Agency within 48 hours or the manufacturer of the product or that are within the next business day after discovery not covered by the manufacturer’s warranty;...
  • Page 36 9224938 www.coway.com...
