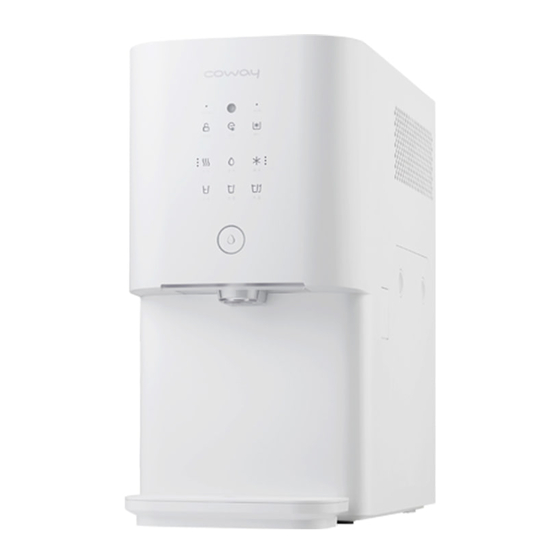

Water Purifier CHP/CP-6310L
• This product cannot be used if the voltage is different from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User's Manual before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHP/CP-6310L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coway CHP/CP-6310L

Summary of Contents for Coway CHP/CP-6310L

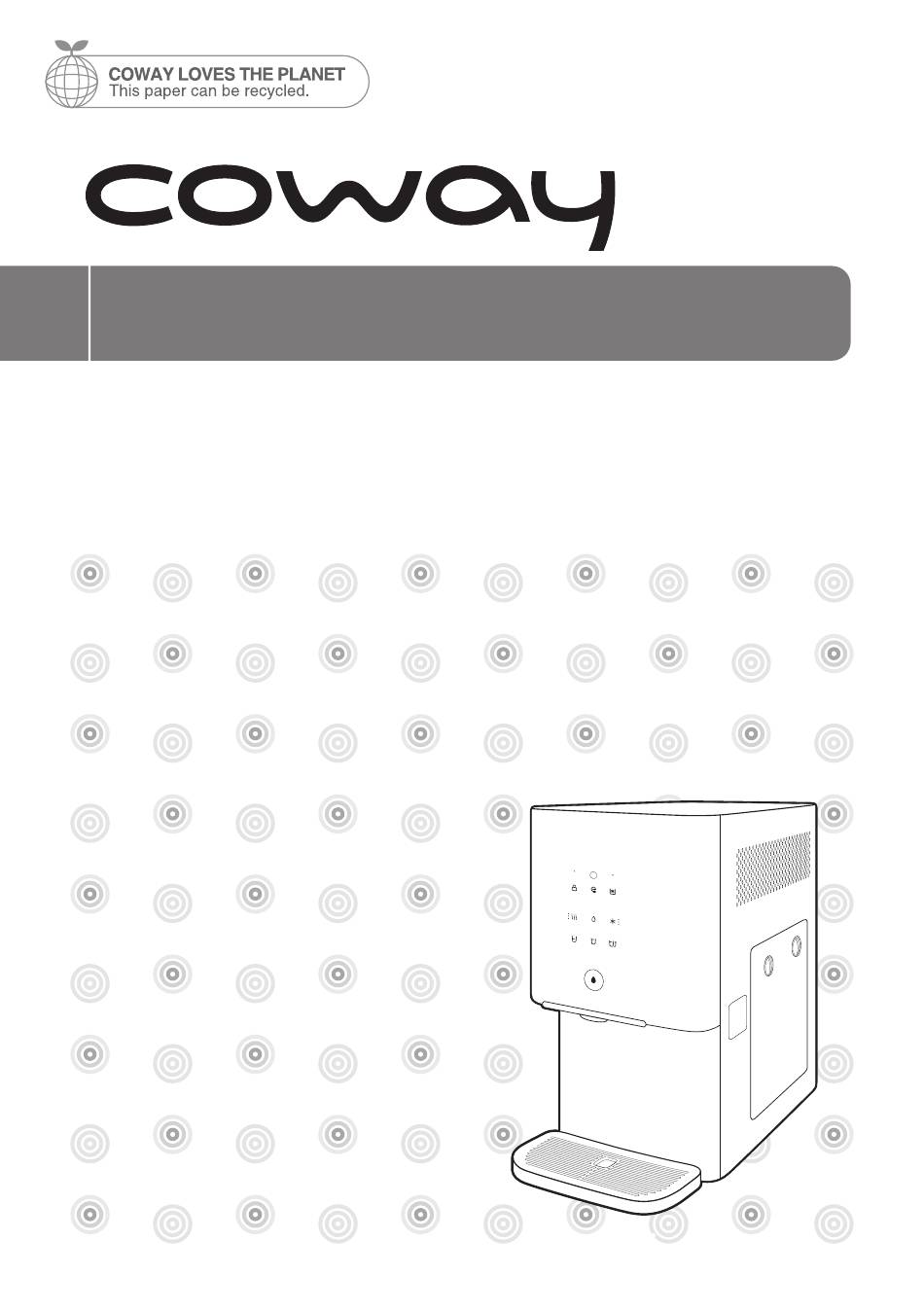

  • Page 1 Water Purifier CHP/CP-6310L • This product cannot be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
  • Page 2 FEATURES Convenient quantitative dispensing for hot(CHP-6310L), cold and ambient water. This convenient feature automatically extracts the exact amount of water (ambient, cold or hot(CHP-6310L)) you wish through a single faucet. Cold Water Plus feature With this feature, a more abundant supply of cold water can be provided as this model uses separate cold and ambient water tanks.

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway Water Purifier Thank you for using Please read this User Manual to learn about proper usage and maintenance of the product. When a problem occurs while using the product, it can be solved by referring to the instructions in this manual.

  • Page 4: Safety Information

    SAFETY INFORMATION DANGER : Indicates an imminently hazardous situation which if not avoided, will result in death or serious injury. • Do not use damaged power plugs or loose sockets. • Do not pull on the power cord. • Do not pull on the power cord to move the product. •...
  • Page 5 • Please lock the tap water valve and disconnect the power plug and contact the service center if there is water leakage from inside the product or if water is puddling around the product. • Immediately disconnect the power plug and contact the service center if there is any burning smell or smoke or strange noises from the product.
  • Page 6 SAFETY INFORMATION WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. • Do not apply excessive force or impact to the product. • Do not install the product on a tilted surface. Do not apply excessive force or impact to the product.
  • Page 7 CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or damage to the product or other properties. • Use tap water as source water. ① Use tap water that is suitable for drinking as source water. ②...

  • Page 8: Parts Name

    PARTS NAME Front [CHP-6310L] [CP-6310L] Controls/Display Dispenser buttons Faucet Tray Top cover Power cord Radiator Accessories User's Drain hose Fitting clip manual...

  • Page 9: Water Purification Process

    The essence of the water purification system lies in the filters. Using an uncertified filter; or even using a certified yet expired filter may reduce filter performance. 4-Step Water Purification System (CHP/CP-6310L) Step 1, 2 : Neo-Sense filter This Neo-Sense filter has the function of removing particulates, dissolved organic and inorganic impurities.
  • Page 10 PLEASE CHECK BEFORE USE Please check before use This product is for 220 V - 240 V~, 50 Hz. Make sure to connect the power plug to a grounded 220 V - 240 V~, 50 Hz outlet. It requires a power supply to operate. ■...

  • Page 11: Maintenance

    Maintenance • If part replacement or interior cleaning are done by someone without personnel expertise, there is a risk of leakage, etc. Request a Coway Cody or Coway Technician. Maintenance card • If checkup/cleaning/part replacement was done during servicing, record check that this information has been recorded on the maintenance card.
  • Page 12 BUTTONS AND INDICATORS (CHP-6310L) Indicators Hot water lock indicator Hot water indicator Cold water indicator Hot water temperature Cold water indicator temperature indicator Ambient water indicator Quantity indicator Dispensing indicator Hot water indicator Hot water temperature indicator The indicator lights up when hot water The indicator lights up according to the is selected.
  • Page 13 Indicators Low water Maintenance level indicator indicator ECO mode indicator Light sensor Cold water plus indicator Maintenance indicator Light sensor This indicator lights up when This sensor detects light around maintenance service is required. the device to discern whether it is day or night.
  • Page 14 BUTTONS AND INDICATORS (CHP-6310L) Buttons ECO mode button Hot water lock Cold water plus button button Hot water Cold water button button Ambient water button Quantity button Dispense button Hot water button Ambient water button Use when you wish to extract hot water. Use when you wish to extract ambient water.
  • Page 15 BUTTONS AND INDICATORS (CP-6310L) Indicators Lock all indicator Cold water plus indicator Cold water indicator Ambient water Cold water temperature indicator indicator Quantity indicator Dispensing indicator Ambient water indicator Cold water indicator The indicator lights up when ambient The indicator lights up when cold water water is selected.
  • Page 16 BUTTONS AND INDICATORS (CP-6310L) Indicators Low water Maintenance level indicator indicator ECO mode indicator Light sensor Maintenance indicator Light sensor This indicator lights up when This sensor detects light around maintenance service is required. the device to discern whether it is day or night.
  • Page 17 Buttons ECO mode button Lock all button Cold water plus button Ambient water Cold water button button Quantity button Dispense button Ambient water button Cold water button Use when you wish to extract ambient Use when you wish to extract cold water. water.
  • Page 18 BUTTONS AND INDICATORS ■ To use the hot water feature(CHP-6310L) Press the hot water button for at least 2 seconds and check to see whether the display shows the hot water feature on and whether the hot water temperature indicator is lit. To turn off hot water, press and hold the hot water button again for at least 5 seconds.
  • Page 19 ■ To use the ECO mode feature Press and hold the ECO mode button for at least 2 seconds to turn ECO mode on. The ECO mode indicator blinks when the product recognizes night. ∗ If the ECO mode indicator is on, the cold water temperature is kept relatively high when the area around is dark.
  • Page 20 HOW TO GET THE DESIRED WATER How to Get Cold Water Check the cold water temperature indicator and touch the cold water button, and then touch the quantity button to set the amount of water you want. Press the dispense button to get your selected amount of cold water.
  • Page 21 How to Get Ambient Water Touch the ambient water button, and then touch the quantity button to set the amount of water you want. Press the dispense button to get your selected amount of ambient water. Press the dispense button again while dispensing to stop the water.

  • Page 22: How To Install

    HOW TO INSTALL Installation Guide Tap water supply valve 220 V 240 V~ 50 Hz only Inlet hose (orange) Outlet hose (blue) Connect the orange inlet hose 1 to the water pipe. Connect the leftover water outlet hose 2. Inlet hose (orange) connection Outlet hose (blue) connection...
  • Page 23 After installation, filter and drain water for at least 130 minutes (Use after draining purified water at least twice). - Please consult a Coway installation technician for detailed instructions on installation for optimal product performance. - Service inquiry : 1800-888-111...

  • Page 24: How To Clean

    HOW TO CLEAN How to Clean Internal Water Tank 1. Close the tap water supply valve, then use the drain hose to completely drain all water from inside the water purifier. When drainage is complete, unplug the power. ∗ Use the drain hose and cold/room-temperature water dispensing faucet to completely drain all water from inside the water purifier. ∗...
  • Page 25 4. Wipe the water tank surfaces with a soft cloth. 5. Rinse the internal water tank clean with water from the water purifier, then plug in the power again and completely drain it using the continuous dispensing button. Empty newly purified water once more before use. ▶...

  • Page 26: How To Clean The Tray

    HOW TO CLEAN How to Clean the Tray 1. How to remove the tray The front of the tray can be easily separated by pulling the front of it. Separate the tray and wipe the inside and outside with a cloth. 2.

  • Page 27: How To Clean Transparent Faucet Cover

    How to Clean the Transparent Faucet Cover 1. Detach the transparent faucet cover by pulling it outward. 2. Rinse the transparent faucet cover with water. 3. After rinsing, wipe the transparent faucet cover with a soft, dry cloth. 4. After cleaning, attach the transparent faucet cover back by pushing it inwards.

  • Page 28: Filter Replacement

    Replace with authorized filters according to the replacement cycle. A Coway Cody will visit to replace the filters. * Call 1800-888-111 for filter replacement. ■ Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product.

  • Page 29: How To Replace The Filter

    HOW TO REPLACE THE FILTER Replace the Filter! 1. Lock the water supply valve and completely drain all water from inside the filtration device. ▶ 2. Turn the door handle of the right top cover to remove the side cover. ▶...
  • Page 30 HOW TO REPLACE THE FILTER 3. Hold the bottom of the filter you want to replace with one hand and raise the lock lever upward to replace the filter. ▶ Check that the filter is securely installed and that the lever is supporting it well, then turn on the source water to check that there are no leaks.

  • Page 31: Regular Maintenance

    REGULAR MAINTENANCE Regular Maintenance To use your device safely, it's best to perform occasional maintenance. Check the following occasionally so your device is always working to its full potential. ■ Power - Does the display go from on to off if you move the power cord while it is connected? - Is part of the power cord warmer than usual? - Is part of the power cord warped, discolored, or damaged? If these problems occur, immediately stop using the device and contact a service center.
  • Page 32 TROUBLESHOOTING The water purifier may operate abnormally because the user is unfamiliar with the product or due to some other reasons and not because of a product malfunction. In such a case, problems can be easily solved without help from the service center by checking the following. If the problem is not solved after checking the following, please call the service center.
  • Page 33 SPECIFICATIONS Coway Water Purifier/ Coway Water Purifier/ Product name electric water cooler electric water cooler(and hot water heater) CHP-6310L CP-6310L Model name Filtration method Reverse osmosis 50 % (343 kPa, 25 °C, NaCI 200 ppm) Collection rate Rated voltage 220 V -240 V~ 50 Hz Cold water : 0.5 A, Hot water : 250 W - 300 W...
  • Page 34 WATER FLOW DIAGRAM CHP-6310L Filtered water drain Room-temperature FEED water tank (2.5 L) VALVE VALVE Connect Cold water source water tank (2.5 L) Hot water tank Injection connector flow channel 3-way valve insertion Hot water drain CP-6310L Filtered water drain Room-temperature FEED water tank (2.5 L)
  • Page 35 Water Filtration System Performance Data Sheet Model: CHP-6310L(MY) This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, 58. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, 58.
  • Page 36 • Refer to the owner’s manual for specific installation instructions, manufacturer’s limited warranty, user responsibility, and parts and service availability. • For parts and service availability, please contact your local dealer or Coway. Model of Filter Type...
  • Page 37 The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upperoccurrence concentration which would produce a maximum product water level at the MCL. COWAY Co., Ltd. 136-23, Yugumagoksa-ro, Yugu-eup, Gongju-si, Chungcheongnam-do, 32508 Korea...
