Summary of Contents for Coway CHP-08AR
-
Page 2: Table Of Contents
- Indication / Operation Part ……… 04 - Inside Water Tank ………………… 08 WATER FILTRATION PROCESS … 05 - Gutter ……………………………… 10 - CHP-08AR ………………………… 05 FILTER REPLACEMENT ………… 10 INSTALLATION ……………………… 06 - Filter Replacement Cycle ………… 10 - Filter Replacement Method ……… 11 TROUBLESHOOTING ……………... -
Page 3: Safety Information
SAFETY INFORMATION Danger : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. • Do not use a damaged power cord or plug, and loose outlet. • Do not unplug by pulling the cord or handle the plug with wet hands. •... -
Page 4: Parts Name

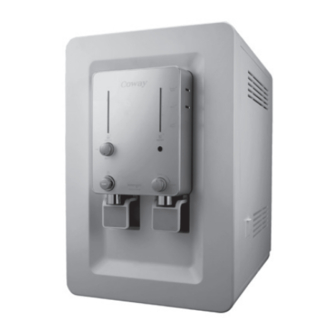

PARTS NAME Front 1 Front Cover 2 Indication Part 3 Light Sensor 4 Hot/Warm Water Temperature Control Dial 5 Cold/Room Water Changeover Dial 6 Hot Water Safety Button 7 Cup-Touch Lever 8 Water Faucet Rear 1 Radiator 2 Rear Cover 3 Power Cord 4 Outlet(Blue) 5 Inlet(Orange) -
Page 5: Indication / Operation Part
Indication Part 1 Hot water Temperature 2 Hot water mode lamp Indicator When selecting hot According to the water water mode, the temperature of hot water, indicator lamps on. the indicator is turned on. The more lamp on the indicators, the more hot water. -
Page 6: Water Filtration Process
WATER FILTRATION PROCESS CHP-08AR 1, 2 Step : Neo-sense Filter This neo-sense filter has the functions to remove particulates, dissolved organic and inorganic impurities. It also has the function to remove chlorine, volatile organic compounds(VOC’s). Step 3 : Membrane Filter (RO) RO membrane filter has the function to remove water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. -
Page 7: Installation
INSTALLATION 1 Close main water supply valve to separate the faucet. 2 Wind the teflon tape on the adaptor and fit it to the pipe. Do not turn the water pipe. 3 Connect the faucet with the adaptor. Shall install the adaptor with connector on the cold water pipe. -
Page 8: How To Use
HOW TO USE To Drink Cold Water Turn the Cold/Room water changeover dial counter clockwise and push the cup-touch lever. Press the cold water mode selection button and check if the cold water mode indicator is turned on. - When the cold water does not extract from the filtration system, please check if the cold water mode indicator is on. -
Page 9: Cleaning Method
CLEANING METHOD Inside Water Tank 1 Press and hold down each of the Cold and Hot water buttons on the front panel of the product for 2~3 seconds and unplug the power plug. Close the main water supply valve. 2 Please drain and store the water inside the water filtration device completely using the draining hose and the cold/room water extraction faucet. - Page 10 CLEANING METHOD 5 Wipe the inside of storage tank with a soft cloth. 6 Wash out the storage tank with the drained water and drain it through the drain hose. 7 Install the ceramic filter into the inner water tank cover by turning the filter, closing the inner water tank cover and closing the fixing clips (6 points) of the inner water tank.
-
Page 11: Gutter
The filter change cycle may vary within the range of expected replacement cycle depending on the feed water quality. The period for the filter exchange is made based on 10 L use in a day for house use (4 people based). Tips CHP-08AR Expected Replacement Cycle Filter name Reverse osmosis Neo sense filter... -
Page 12: Filter Replacement Method
FILTER REPLACEMENT Filter Replacement Method 1 Close the main water supply valve after unplugging the power cord, and drain the water inside of the water filtration device. 2 Separate the top cover. 3 Remove the 2 fixing screws with a star screwdriver. Hold the top of the front cover, pull it forwards to separate it, and then disconnect all the connected cables to separate it completely. - Page 13 5 Connect all the separated cables, align the 3 holes of the front cover and the 3 buttons, and close the cover pushing it towards the product. Please be sure to use the new filter after cleansing. - Neo-sense filter : Please assemble after cleansing with neo-sense filter for about 30 seconds.
-
Page 14: Troubleshooting
TROUBLESHOOTING The water filtration device may operate abnormally because the user is unfamiliar with the product or due to some other reason and not because of a product malfunction. In such a case, problems can be easily solved without help from the service center by checking the following. -
Page 15: Specification
In this case, please contact the service • Is water overflowing or leaking? center. SPECIFICATION Water Filtration Device Product Name Model CHP-08AR Purified Method Reverse Osmosis Rated Voltage 220 V – 240 V~, 50 Hz / 60 Hz Power Consumption Cool: 0.7 A, Heater: 325 W Room water 6.4 L... - Page 16 MEMO...
- Page 17 MEMO...
- Page 18 LONG AN IMPLIED WARRANTY LASTS, SO period. This limited warranty applies only to Product THE ABOVE LIMITATION MAY NOT APPLY TO used for an application specified by COWAY for YOU. COWAY DOES NOT AUTHORIZE ANY the Product and applied in strict accordance with...
- Page 19 Limitations on Implied Warranties: Waiver: Any implied warranty of merchantability or fitness for COWAY’s failure at any time to enforce or rely upon a particular purpose or use, shall be limited to the any of the terms or conditions stated herein shall not be construed to be a waiver of its rights hereunder.
- Page 20 1210676 Made in Korea www.coway.com...
