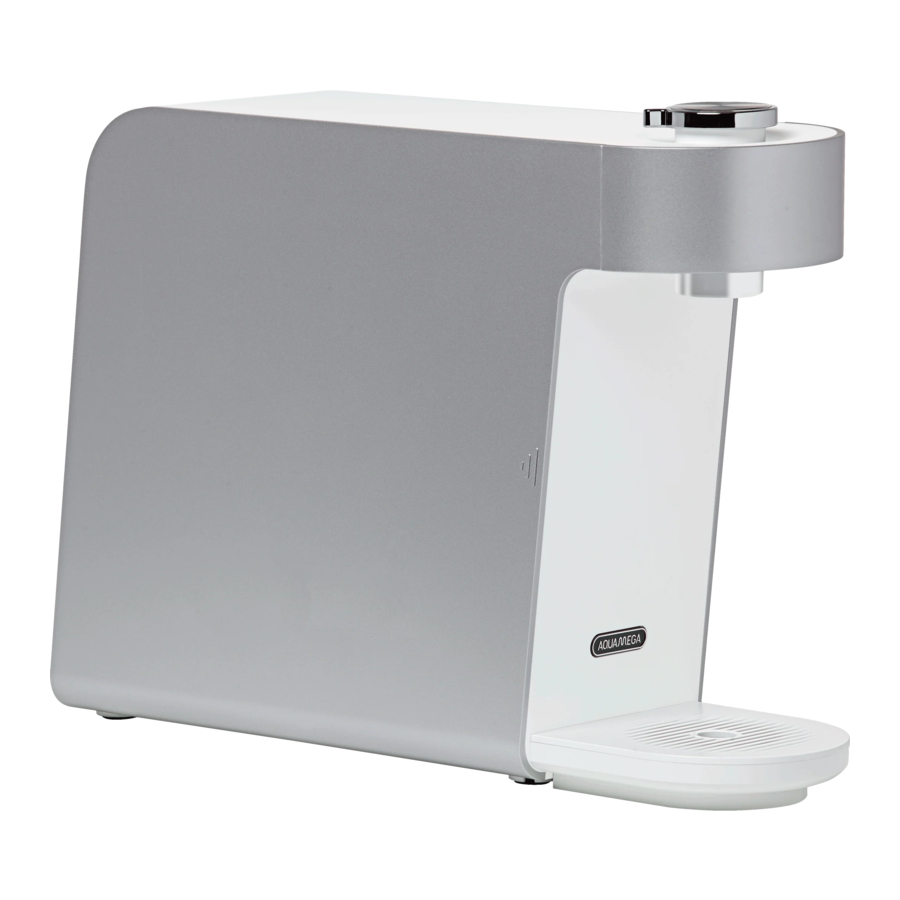

Coway Aguamega 100 - Water Filtration System Manual

FEATURES

1. Tankless direct water filtration system
   This is a direct water filtration system in which water passes through filters immediately before consumption.

2. Power-free environmentally-friendly system
   You can use this environmentally-friendly product that doesn't require electrical power without worrying about electricity costs.

3. Convenient continuous dispensing
   Just turn the knob 90 degrees clockwise to continuously dispense room-temperature water.

4. A small water purifier with an attractive and luxurious design
   This product can be conveniently installed and be used in any kitchen, no matter how small, with its slim and elegant design.


PARTS NAME

Front

WATER FILTRATION PROCESS

The heart of a water filtration device is its filters.
If filters are not authorized or if authorized filters are used past their life expectancy, their performance may decrease.

AQUAMEGA 100 water filtration system

A-1: SEDIMENT FILTER
This sediment filter has the functions to remove infusible particles from feed water and to protect pre-carbon filter.
A-2: PRECARBON FILTER
This pre-carbon filter has the functions to remove chlorine and to absorb harmful organic chemicals from feed water.
A-3: POSTCARBON FILTER
This post-carbon filter has the functions to remove smell induction material and to improve taste of water.

* Temporary tiny bubbles (air bubbles) may be generated due to water pressure when dispensing from a direct water device.
These air bubbles disappear naturally and do not affect water quality in any way.

* When you boil filtered water from the device, there may be white precipitation.
This is not contamination, but rather precipitating minerals within the water.

INSTALLATION PRECAUTIONS

Be sure to read before use!

• Open the connection valve.
  Feed water must be supplied for the device to work properly.
• Regular filter replacement
  Regular filter replacement is very important to drink clean water. If you are using filters past the end of their lifespans, the filtration device may not work as well. Be sure to replace filters according to their cycle.
• After installation
  Continuously dispense water for 10 minutes before using the product for the first time. (Water may appear murky as bubbles are initially dispensed with water through the filter.)
• Installation parts
  1 faucet mounted diverter, 3 faucet adapter, 1 T-valve (9/16"), 1 Drain hose, 1 6.5ft Tubing, 1 L-fitting


HOW TO USE HYGIENICALLY

HOW TO USE

To drink room temperature water

1. Place the cup under the faucet.

2. Turn clockwise to begin dispensing water.

3. Turn counterclockwise to stop dispensing water.
   * Make sure the the water flow is completely locked by turning the knob to its stop position to avoid leaks.


INSTALLATION

Be careful!
Where to install 1
Do not install in areas frequently exposed to high humidity, water, dust, sunlight and uneven grounds.

Where to install 2
Install on the sink as the product is counter top water purifier.

After installation
Continuously dispense water for 10 minutes before using the device for the first time.

2 Options of Installation

Select installation method according to your kitchen condition.

1. Diverter Type
   Connects to main kitchen faucet.

2. Adapter Type
   Connects to water pipe line.


Installation Video
Visit www.cowaymega.com/instructions for video instructions

Tips
Some of the water used for the inspection process during production may remain inside the filter.
This product is not a secondhand product, so do not worry.
Do not reuse previously used connection valves or hoses when installing the product.

First, connect the white tubing to the feed water connection 1, then connect to the diverter or T-valve.
Second, select installation method according to your kitchen condition between 1. Diverter and 2. Adapter type

DIVERTER TYPE

Part Names and Uses

1. Ring Nut: The nut connected to the water faucet (M22XP1.0)
2. Handle (Switch): The handle that determines the direction of the water output.
3. Fitting: This is the fitting that connects the tubing for water supply from faucet to the device.
4. Water Outlet: The water outlet where the tap water comes out.

< Water Flow >
* The direction of the handle is the same as that of the water flow.

Connector Set

1. 0.8071-28 UNF

2. 0.9213-28 UNF

3. 0.7205-28 UNF


* The arrow lines in the figure: Represents the specifications (diameter) of the water faucet.

The system is to be supplied with cold water only.

ADAPTER TYPE (T-VALVE)

FOR 9/16 inch Valve

INSTALLATION

1. Wind the Plumber's tape on the adapter and fit it to the pipe.
   The adapter must be connected to the cold water supply only.

2. Connect one end of the white tubing to the T-valve and then connect the other end to the water inlet of the device.


CLEANING METHOD

Cleaning the faucet

1. Hold the product and turn the faucet clockwise to remove.

2. Wash the faucet in clean, running water.

3. After washing, dry with a clean cloth.

4. Turn the clean faucet counterclockwise to reinstall.


Cleaning

Wipe with a soft, dry cloth (once every 2-4 weeks)
* If there is severe contamination, wipe with a damp cloth (do not use abrasive materials).

FILTER REPLACEMENT

Filter

Filters can determine the performance of the water purifier and should be regularly maintained and replaced. We only recommend using Coway authorized filters and using third party or depleted filters may decrease the overall performance of the water purifier. More details can be found on official Coway website (www.cowaymega.com)
Only Aquamega filter

Filter replacement cycle

If you do not regularly replace filters, the quality of water from the product will decrease.
Predicted filter replacement cycles may vary depending on source water quality and amount of water used.

AQUAMEGA 100
Replace at the rated capacity or if a noticeable reduction in flow rate occurs.

* Filter replacement cycle based on the average daily use 1.5gal (5.7L/day).

Filter reminder

Register for your next filter replacement SCAN the QR code or VISIT www.cowaymega.com/reminders

About the filter replacement cycle

Each filter's recommended replacement cycle varies depending on water supply quality.
For reference, the effective water capacity means the minimum treatment capacity for which contaminants can be effectively removed without cleaning, recycling, or replacing the inner filters, and recommended replacement cycles for individual filters may differ.
If the area with poor water quality or more applications, the changing cycle is shortened.

Filter replacement method

Replace the filter!

1. Remove the side cover and inner filter cover and make sure to close the water supply before removing the filters by turning the lever clockwise, otherwise it may cause severe leakage.


Tips
Do not push too hard. There is a risk of damage.
Lock the water supply, then turn the faucet on for about 3 seconds and then off.

2. Remove the filter you want to replace horizontally, then replace it.


Tips
After replacing the filter, check that the inner filter cover is completely closed and drain the first filtered water.

3. Close the inner filter cover and side cover.


Tips
Continuously dispense water for 10 minutes before using the product after replacing filters.
(Water may appear murky as bubbles are initially dispensed with water through the filter.)

TROUBLESHOOTING

The product may not operate correctly for minor reasons or due to unfamiliarity with how to use the product that are not product malfunctions. In such cases, the problem can be solved easily without the need to resort to going to a service center if the following items are checked. Check the following, then contact a service center if your problem remains unresolved.

SPECIFICATIONS

• Rated service flow and Rated capacity based on standard laboratory specifications.
  There may be variations due to changes in water pressure, temperature and quality at the installation location.
• Specifications may be changed slightly without prior notice to improve product performance.

WATER FLOW DIAGRAM

PRODUCT PERFORMANCE DATA SHEET

Model: AQUAMEGA 100
This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42 and 53 for the reduction of the substances listed below and NSF/ANSI 372 for lead free compliance. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

¹ As monochloramine (measured as Cl₂/L)
While testing was performed under standard laboratory conditions, actual performance may vary.

General Operating Information

* Chlorine reduction based on surrogate chloramine reduction.

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• Refer to the owner's manual for specific installation instructions, manufacturer's limited warranty, user responsibility, and parts and service availability.
• For parts and service availability, please contact your local dealer or Coway.
• Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
• The estimated replacement time of filter, which is a consumable parts, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality.

VOC Surrogate Claims

*VOC Surrogate Claims

Coway. Co., Ltd.
136-23, yugumagoksa-ro, Yugu-eup, Gongju-si, Chungcheongnam-do, Korea
Tel.: 82-41-850-7879 Fax.: 82-41-841-7816

SAFETY PRECAUTIONS

There is a risk of death or serious injury if the instruction is not followed.

There is a risk of considerable bodily harm or physical damage if the instruction is not followed.

There is a risk of slight bodily harm or physical damage if the instruction is not followed.

About Installation

Do not install near electric heaters.
There is a risk of fire.

Do not use or store combustible gases or flammable materials near this product.
There is a risk of fire.

Do not excessively impact or use excessive force on this product.
There is a risk of damage to the product.

Filtration device installation/use should comply with regulations for the relevant region.

During Use

If water leaks inside the product or pools around it, lock the water supply valve, and then contact a service center.
There is a risk of damage to the product.

Do not put candles, lighters, etc. on top of this product.
There is a risk of fire.

Do not put bowls of water, chemicals, food, small metal objects, or flammable materials on top of this product.
There is a risk of product damage if they enter the product.

Replace filters according to the filter replacement cycle to drink clean water.
If expired filters are used, water purification may be less effective.

Completely close the water filter cover inside the product before use.
Otherwise, insects or dirt may enter.

Other

Do not spray water directly on the device or use benzene and thinners, etc. to wipe it during cleaning.
There is a risk of product damage.

Do not open, repair or modify the product yourself.
There is a risk of product damage.

Do not use purified water to replace water in fish tanks or aquariums.

Do not use unfamiliar water that has not been disinfected or cleansed of microorganisms before or after using the device.

The system and installation shall comply with applicable state and local regulations.

Cold water use only.

ONE YEAR LIMITED WARRANTY

Obtaining Warranty Service and OWNER'S Duties:

USA
Add: Coway USA Inc.
4221 Wilshire Blvd. #210 Los Angeles, CA90010
Call center.: 800-285-0928
www.cowaymega.com

THAILAND
Add: COWAY(THAILAND) CO., LTD.
75/104-106 Ocean Tower2 38Fl, Soi
Sukhumvit19(Wattana), Sukhumvit Road,
Klongtoey Nua, Wattana, Bangkok 10110
HQ: 66-2-261-2610
Call center: 66-2-261-0209

KOREA
Add: Coway co., Ltd.
136-23, Yugumagoksa-ro, Yugu-eup, Gongju-si,
Chungcheongnam-do, Korea
Tel. : 82-1588-5100

MALAYSIA
Add: COWAY (M) SDN BHD
SUITE 6-3 & 6-4 LEVEL 6, WISMA UOA
NO.21 JALAN PINANG 50450 KUALA LUMPUR
Call center: 1-800-888-111

www.cowaymega.com
