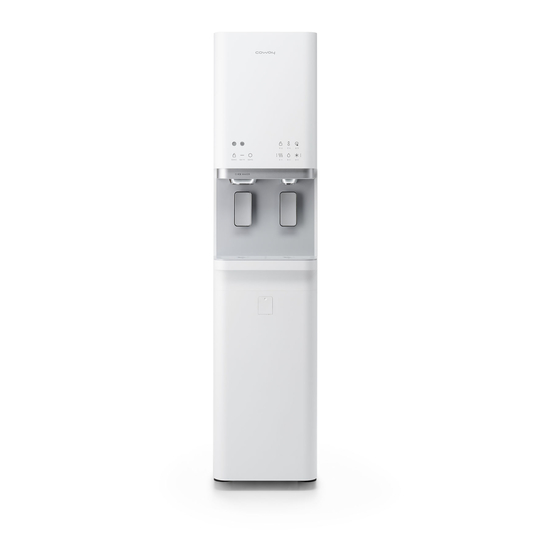

Coway Water Filtration Device CHPI-620L
• This product is for domestic use only. It cannot be used in overseas countries where the power voltage
is different.
• Warranty card is included in this user's manual.
• Read and save these instructions.
• English/French/Spanish/Chinese/Korean

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHPI-620L and is the answer not in the manual?

Questions and answers

Related Manuals for Coway CHPI-620L

Summary of Contents for Coway CHPI-620L

  • Page 1 Coway Water Filtration Device CHPI-620L • This product is for domestic use only. It cannot be used in overseas countries where the power voltage is different. • Warranty card is included in this user’s manual. • Read and save these instructions.
  • Page 2 BENEFITS OF COWAY WATER FILTRATION DEVICES A water filtration device with an ice-making feature It is conveniently designed to provide cold water and ice. Simple ice dispensing lever The user can easily get ice just by gently pressing the ice dispense lever.

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway Ice Water Filtration Device Thank you for using Please read this User Manual to learn about proper usage and maintenance of the product. When a problem occurs while using the product, it can be solved by referring to the instructions in this manual.

  • Page 4: Safety Information

    SAFETY INFORMATION Please follow the instructions as they are for your safety. Please read this information to ensure your safety and prevent property damage. Please read the cautions carefully and use the product correctly. If not observed, If not observed, If not observed, serious injury serious injury...

  • Page 5: Regarding Installation

    Do not arbitrarily connect or bend the power cord. If not observed, electric shock or fire could occur. If the power cord is damaged, do not replace the cord by yourself. Call the Coway Service Center to have it replaced.

  • Page 6: During Use

    SAFETY INFORMATION If not observed, If not observed, If not observed, serious injury serious injury minor injury or property or property or property damage could damage could damage could DANGER WARNING CAUTION occur. occur. occur. During Use When water leaks inside the product or water pools around the product, shut off the water supply valve and unplug the product, and call the Service Center.

  • Page 7: Others

    Others Unplug the electrical power cord before cleaning. If not observed, electric shock or fire could occur. Do not repair, disassemble, or modify the product arbitrarily. If not observed, electric shock or fire could occur. Do not clean by spraying water directly and do not wipe the product using benzene or other thinners.

  • Page 8: Parts Name

    PARTS NAME Front Control Part Cold/Hot/Ambient Water Faucet Cup Dispenser Touch Lever Ice Dispenser Hole Drip Tray Front Drain Cover (Hot water) Front Cover Height-adjusting Feet...
  • Page 9 Back Top Cover Rear Cover Power Cord Radiator Grill Outlet Hose for Reject Water (Blue) Inlet Hose for the Main Water Supply (Orange) Parts User Manual Drain Hose Distance Antibacterial Fitting Clip Maintenance Rod Filter...

  • Page 10: Water Filtration Process

    Using a filter that is not certified or even using a certified filter for too long may compromise the filter performance. The 5-step water filtration system (CHPI-620L) First filter: Neo-Sense filter Step 1: Neo-Sense filter removes particulate materials, such as sand and rust, from the main water supply.
  • Page 11 PLEASE CHECK BEFORE USE Please check before use! This water filtration unit must be plugged into its own dedicated 120 V~ 60 Hz, AC only electric outlet. It must be plugged into a grounded 120 V~ 60 Hz outlet. It must be connected to a power source for the product to work normally.
  • Page 12 BUTTONS AND INDICATORS Indication Part 5 Continuous Dispense Indicator 4 Lock Feature Indicator Power Saving Indicator 1 Ice Lock Indicator 3 Ice On Indicator 8 Hot Water 0 Cold Water Indicator Indicator 7 Hot Water 2 Ice Full Indicator 9 Ambient Water ! Cold Water Temperature Indicator...
  • Page 13 Control Part Continuous Dispense Button Power Saving Button Hot Water Lock Button Ice Lock Button Ice On Button Hot Water Button Cold Water Button Ambient Water Button Ice Lock Button Ice On Button Use this button to activate/deactivate Use this button to activate/ the Ice Lock feature.
  • Page 14 BUTTONS AND INDICATORS  How to use the Cold Water feature Press the Cold Water button for a few seconds and check if the Cold Water indicator is on. The indicator light will light up based on the cold water temperature. Press the Cold Water button again for a few seconds to deactivate it.
  • Page 15 HOW TO GET THE DESIRED WATER How to Get Cold Water Push the Cold Water button and press a glass against the dispenser lever to dispense cold water. - If the unit does not dispense cold water, check if the Cold Water indicator is on (refer to P.11).
  • Page 16 HOW TO GET THE DESIRED WATER How to Get Ambient Water Push the Ambient Water button and press a glass against the dispenser lever to dispense ambient water. - If the unit does not dispense ambient water, check if the Ambient Water indicator is on (refer to P.11).

  • Page 17: How To Install

    For own dedicated 120 V~ 60 Hz, AC only electric outlet Connect the orange inlet hose into the tap water supply pipe1. Connect the reject water drain hose2. Tap water supplying hose (orange) tubing Reject water outlet hose (blue) tubing (CHPI-620L)
  • Page 18 HOW TO INSTALL Be Careful!  Where to install the water  Water filtration installation filtration unit I location II Install the product in a cool part of the Allow a clearance of 10 cm or more behind room, on an even surface, out of direct the product, and level the water filtration sunlight and away from humidity, dust, and unit.

  • Page 19: How To Clean (Cody Heart Service)

    HOW TO CLEAN How to Clean the Internal Water Tank 1. Use the drain hose to completely drain the water from the internal tank, and save the drained water. For cold water, push the Cold Water button and press the dispenser lever to drain cold water. * For ambient/hot water, open the front drain cover and use the drain hose to drain the water.
  • Page 20 HOW TO CLEAN 4. Separate the antibacterial filter from the cover of the internal water tank and shake & rinse it out in clean stored water before putting it back in. ► ► 5. Please wipe the inside of the cold water/ice storage tank, and the surface of the evaporator using a soft cloth.
  • Page 21 8. Close the internal water container cover and top cover, plug in the electric power cord, and open the water supply valve. Check if the water is dispensed from the cold/ambient/ hot water faucet before restarting the water filtration unit by pressing the Ice Lock/Hot Water/Cold Water buttons.

  • Page 22: How To Clean The Drip Tray

    HOW TO CLEAN How to Clean the Drip Tray 1. How to separate the drip tray Separate the drip tray and wipe the inside with a soft cloth. ► ► 2. How to assemble the drip tray Slightly lift the drip tray cover . How to Separate and Clean the Basket 1.

  • Page 23: Filter Replacement

     Filter The essence of the water filtration system lies in the filters. Using a Only Coway filter filter that is not certified or even using a certified filter for too long may compromise filter performance. Please make sure to change the filter within the replacement cycle.

  • Page 24: How To Replace The Filter

    HOW TO REPLACE THE FILTER Don’t Forget to Replace the Filter! 1. Unplug the power cord, close the water supply valve, and completely drain the water inside the filtration unit (refer to P.18). ► 2. Push down the front drain cover and loosen 1 screw using a screwdriver.
  • Page 25 3. After removing the fitting from the filter to be replaced, replace the filter (use a proper tool for the separation). ► Following filter replacement, check if there is a leak by connecting the fitting and hose tightly, and make sure the first filtered water is drained. Tips 4.
  • Page 26 TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items.

  • Page 27: Product Specifications

    PRODUCT SPECIFICATIONS Product Name Electric Cold Water Dispenser (Hot Water and Ice Maker combined) Model CHPI-620L Filtration Method Reverse osmosis system Recovery Rate 50 % (343 kPa, 25 °C, NaCl 200 ppm) Standard Power Voltage 120 V~ 60 Hz Rated Power Input Motor: 0.9 A, heater: 310 W...
  • Page 28 WATER FLOW DIAGRAM CHPI-620L Ambient Water Tank Ice Tray Inlet Valve Feed-NOS Valve Cooling Tank Tank Cold Water Inlet Valve Drain Heating Tank 3 WAY Valve Drain Tank Ambient/Cold/ Hot Water Extraction Main Water Hand Valve Ice/Cold Water Drain Reject Water...
  • Page 29 Water Filtration System Performance Data Sheet Model: CHPI-620L This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 58 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, and 58.
  • Page 30 Have the treated water tested for arsenic to check if the system is working properly. The RO component of the CHPI-620L system must be replaced every 24 months to ensure the system will continue to remove pentavalent arsenic. The component identification and locations where you can purchase the...
  • Page 31 0.0046 1,1,2-trichloroethane 0.150 0.0005 > 99 trichloroethylene 0.180 0.0010 > 99 trihalomethanes (includes): chloroform (surrogate chemical) bromoform bromodichloromethane 0.300 0.015 chlorodibromomethane xylenes (total) 0.070 0.001 > 99 Coway Co.,Ltd. 136-23, Yugumagoksa-Ro, Yugu Eub, Gongju-Si, Choongchungnam-Do, Korea Tel.: 82-41-850-7879 Fax.: 82-41-841-7816...
  • Page 32 MEMO...
  • Page 33 MEMO...
  • Page 61 MÉMO...
  • Page 89 MEMO...
  • Page 117 备忘录...
  • Page 145 MEMO...

  • Page 146: One Year Limited Warranty

    INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application specified REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published specifications PRODUCT OTHER THAN THIS WARRANTY.
  • Page 147 COWAY no later than accident, alteration, improper installation or thirty (30) days after a defect is discovered or other acts that are not the fault of Coway or should by reasonable diligence have been the manufacturer of the product or that are discovered.
  • Page 148 MADE IN KOREA 1227365 www.coway.com...
