PDQ 3100 Instruction

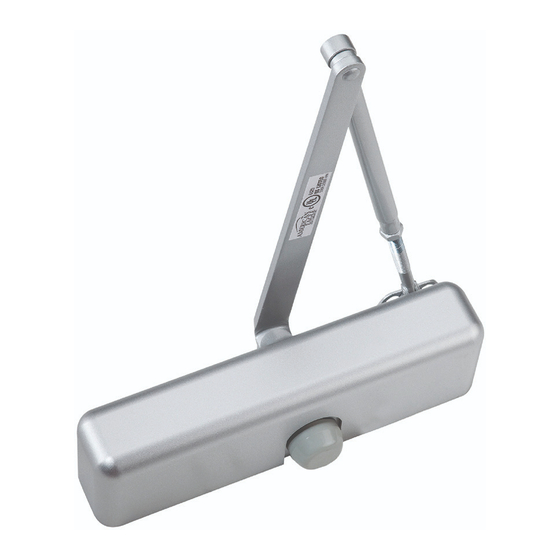

3100 DOOR CLOSER MODELS

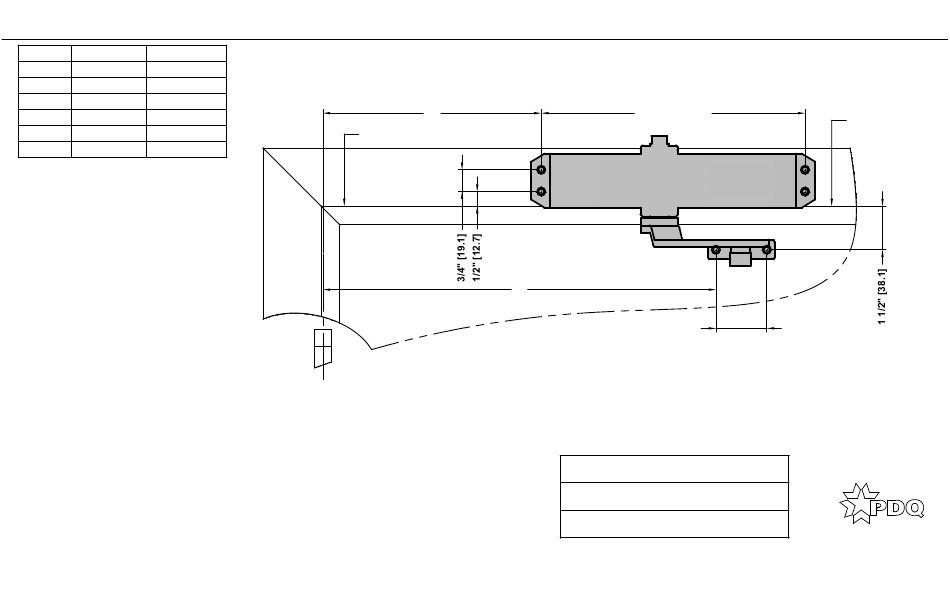

TOP JAMB INSTALLATION - PUSH SIDE - PIVOT STOP (PS) ARM APPLICATIONS
Opening Dim. A Dim. B
85° 10-1/16" [255.6] 16-1/16" [408]
90° 9-3/8" [238.1] 15-3/8" [390.5]
95° 8-3/4" [222.3] 14-3/4" [374.7]
100° 8-1/4" [209.6] 14-1/4" [362]
105° 7-13/16" [198.4] 13-13/16" [350.8]
110° 7-1/2" [190.5] 13-1/2" [342.9]
NOTES:
1. DO NOT SCALE DRAWING. LEFT HAND DOOR SHOWN.
2. DIMENSIONS ARE GIVEN IN INCHES [MM].
3. FOR DOORS WITH REVEAL OF 4 INCHES. CONSULT FACTORY FOR OTHER REVEAL DEPTHS.
4. MINIMUM CEILING CLEARANCE FROM BOTTOM OF FRAME FACE FOR CLOSER : 2-13/16".
5. SEX NUTS REQUIRED FOR UNREINFORCED OR COMPOSITE FIRE DOORS.
6. DOOR AND FRAME MUST BE REINFORCED PER ANSI/SDI A250.8 REQUIREMENTS - MINIMUM THICKNESS
RECOMMENDED FOR REINFORCEMENTS IN HOLLOW-METAL DOORS AND FRAMES: 0.067" UNLESS OTHERWISE NOTED.
7. HOLLOW-METAL DOORS REQUIRE CHANNEL OR BOX-TYPE REINFORCEMENT WHEN SEX NUT MOUNT IS SPECIFIED.
A
BOTTOM OF FRAME FACE
C L
HINGE
OR
PIVOT
9 1/16" [230.2]
B
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL (CLOSER TO DOOR)
INSTRUCTION: 319356
REV.0 04-09-20
BOTTOM OF
FRAME FACE
1 3/4" [44.5]
