Introduction
Select power unit
Select
pre-attenuation
Select EMF/50Ω Ω Ω Ω

Loading system program

Depending on the capacity of the available memory cards, the IS-136 MS-TEST
system program is supplied on one or more (n) cards.
1) Insert the first memory card (1 of n) in the slot on STABILOCK.
2) Press +
[AUX] {DATA}
3) When the message INSERT NEXT CARD appears in the status line onscreen,
insert the next card.
4) When the system program is fully loaded, the basic IS-136 test mask appears
onscreen (Fig. 10.3).
5) Now insert the first memory card again or leave the single one in place. In this
way STABILOCK can store entered test parameters on the card so that you
do have not to enter them again the next time you call up the system program
(deactivate write protection if it is set on the memory card).

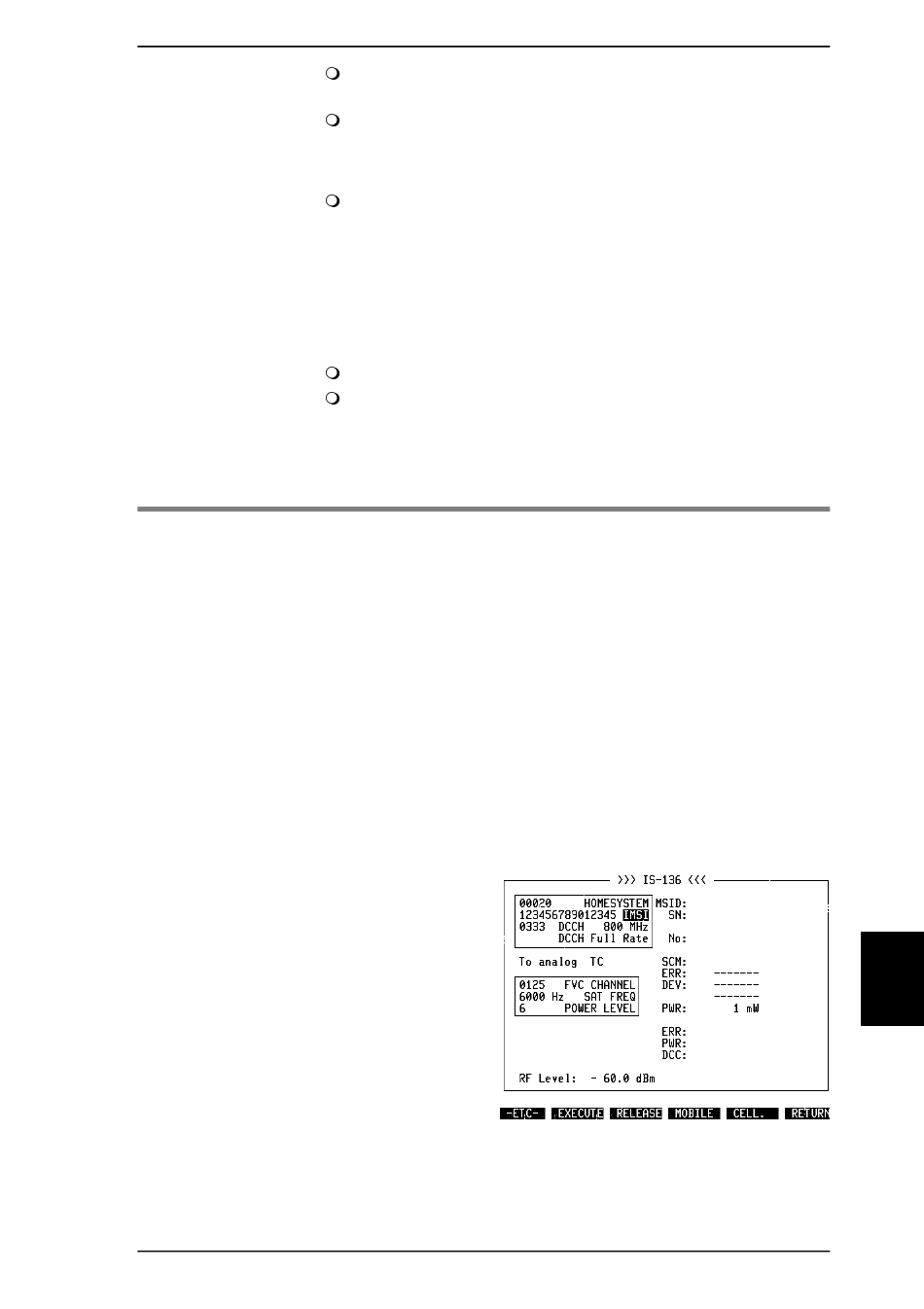

Fig. 10.3: Basic IS-136 test mask immedi-
ately after calling up system program.
Call up the GENERAL
+ .
[AUX] {DEF.PAR}
Select the power unit (WATT|dBm) with the scroll field
RF-Power. The selected unit will appear in all RF power
measurement results.
Enter the compensation value in the Pre-attenuation
field of the GENERAL PARAMETERs mask. If any other
value than 0 is entered, the pointer ATT appears in all
relevant masks to draw your attention to the correction
of the measured and the transmitted RF level (for more
information, see details of GENERAL PARAMETERs
mask).
Call up the Duplex or RX mask.
Use the softkey to select RF output level = EMF or
measured into 50Ω (standard).
to start the loading procedure.
IS-136 MS
PARAMETERs mask:
10-7
