Back Panel

Back Panel
1 2
Bu15
Bu90
Bu
103
Bu95
Bu12
Bu13

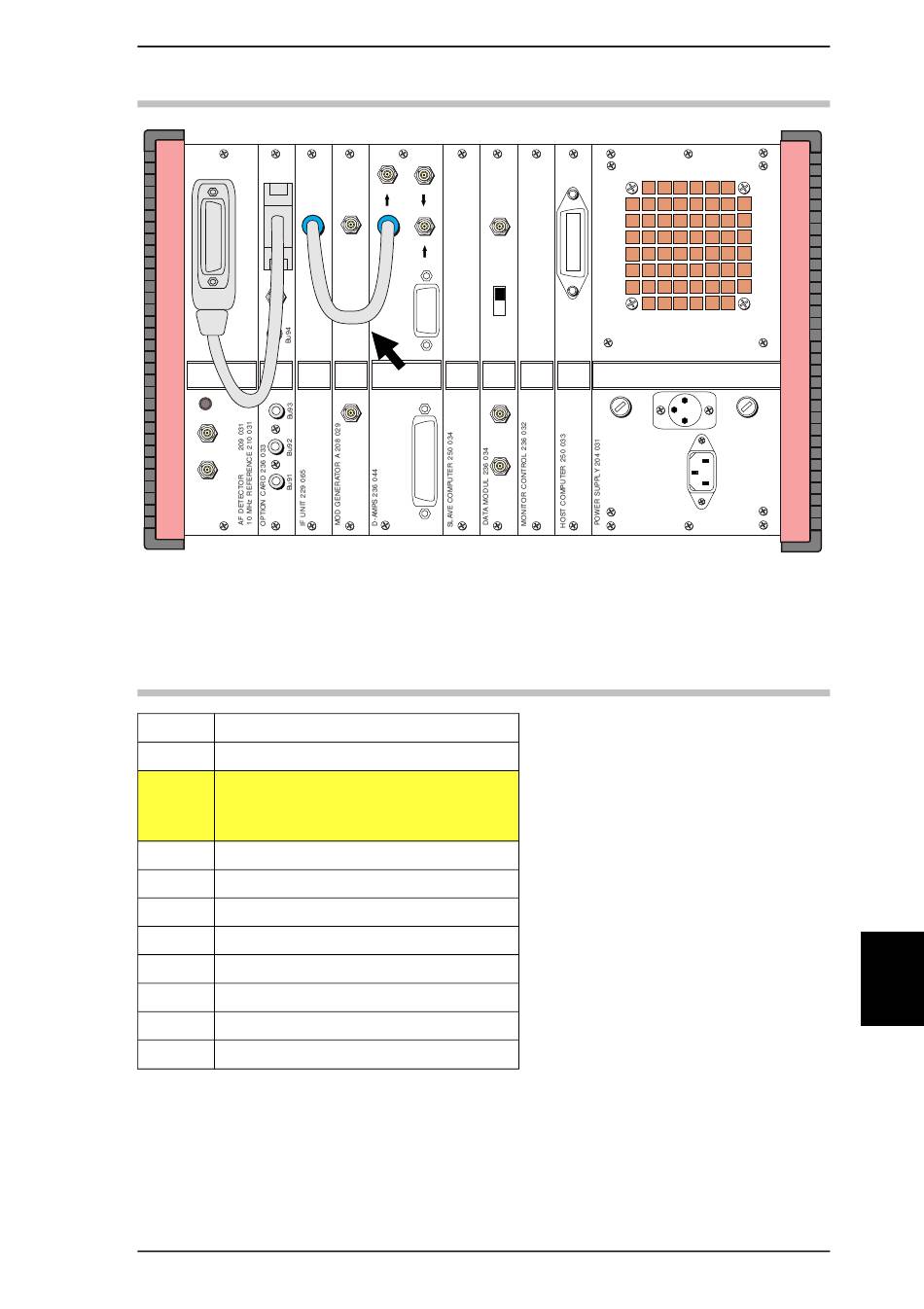

Fig. 10.27: If sockets Bu 103 are not connected as marked here, no call setup is possible
between mobile and test set. All other sockets of D-AMPS unit are irrelevant for testing
IS-136 mobiles.

Compatibility with Other Options

Slot Unit
1 AF DETECTOR
2 MOD GENERATOR B or
OPTION CARD or
CONTROL INTERFACE (A/B/C/D)
3 IF UNIT with/without Tracking
4 MOD GENERATOR A
5/6 D-AMPS UNIT
7 SLAVE COMPUTER
8 DATA MODULE
9 MONITOR CONTROL
10 HOST COMPUTER
Internal D-AMPS DUPLEX UNIT
5/6
3 4 7
Bu107 Bu108
Bu29
Bu99
Bu104
Bu103
S101
Bu105
Bu97
Bu27
Bu106
Bu98
8 9
10
Bu20
St2
Equipment configuration required for
testing IS-136 mobiles. Slot 2 can hold
any of the options mentioned.
The following may not be included at
the same time:
ACPM option
SSB option
GSM module
RS232/Centronics interface
IS-136 MS
St1
10
