Position the display bracket in correspondence of the display zone hole (ZONE A) so that its centre
coincides with the centre of the display exit hole.
The lower end of the equipment frame bracket hook must coincide with the electrical tape
located 5.5cm – 2.16'' from the centre of the display exit hole (ZONE A).
UNITY MINI_INSTALLATION MANUAL
REV 1.0
2016.11.28

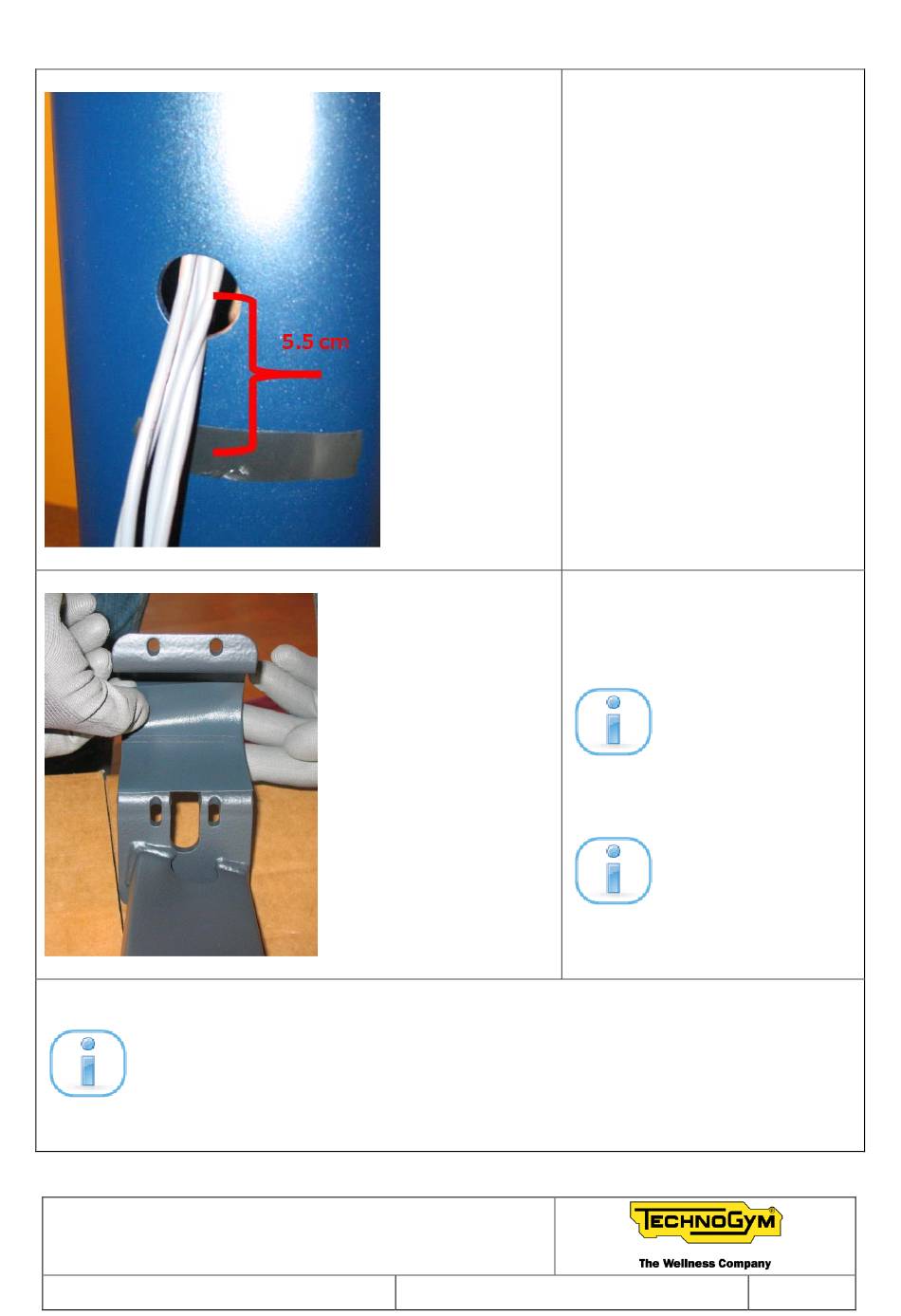

Measure 5.5cm – 2.16'' from the
centre of the exit hole for the display
(ZONE A) and attach a piece of
electrical tape in correspondence of
this distance; this will be the
reference point for correctly
positioning the display unit.
Attach a shimming adhesive in
correspondence of the curve of the
bracket hook to the equipment
frame.
This shim will keep the
display unit from sliding down the
equipment frame.
If needed, one or two
shimming adhesives can be applied.
30/43
