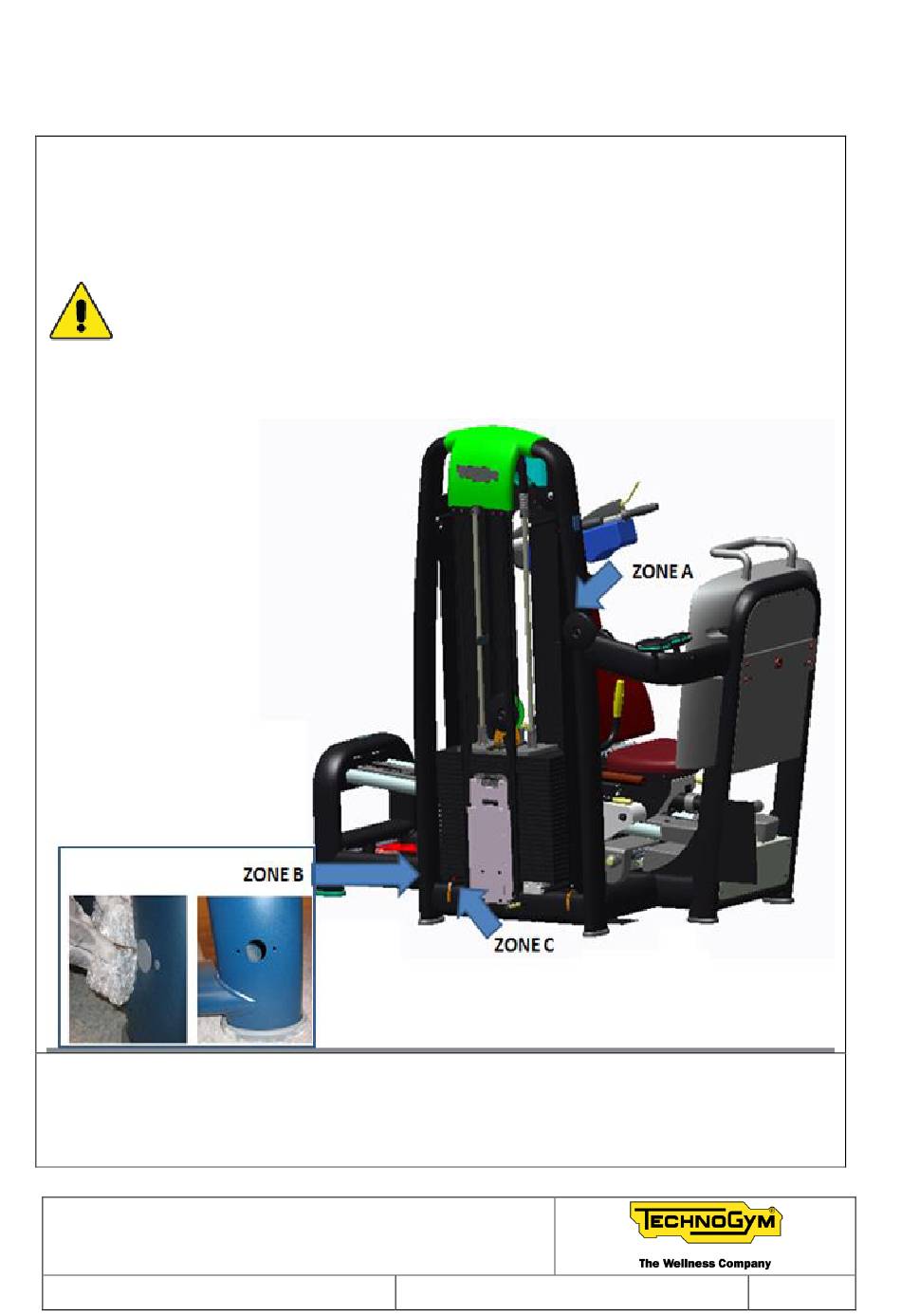

4.2 CABLE PASSAGE THROUGH THE EQUIPMENT FRAME
Remove the plastic caps from:
-
ZONE A: display zone; where the display unit bracket is fixed;
-
ZONE B: power supply input zone (3 caps to be removed);
-
ZONE C: weight stack zone;
using a flat screwdriver.
When the plastic caps are removed for cable passage, it is recommended to always use a
piece of packaging plastic to protect the equipment frame from damage.
UNITY MINI_INSTALLATION MANUAL
