Technogym UNITY MINI Manual page 26

Fit the pin with the hook of the encoder wire in the lower part of the carriage unit frame, using the
specific fastening nut
UNITY MINI_INSTALLATION MANUAL
REV 1.0 2016.11.28

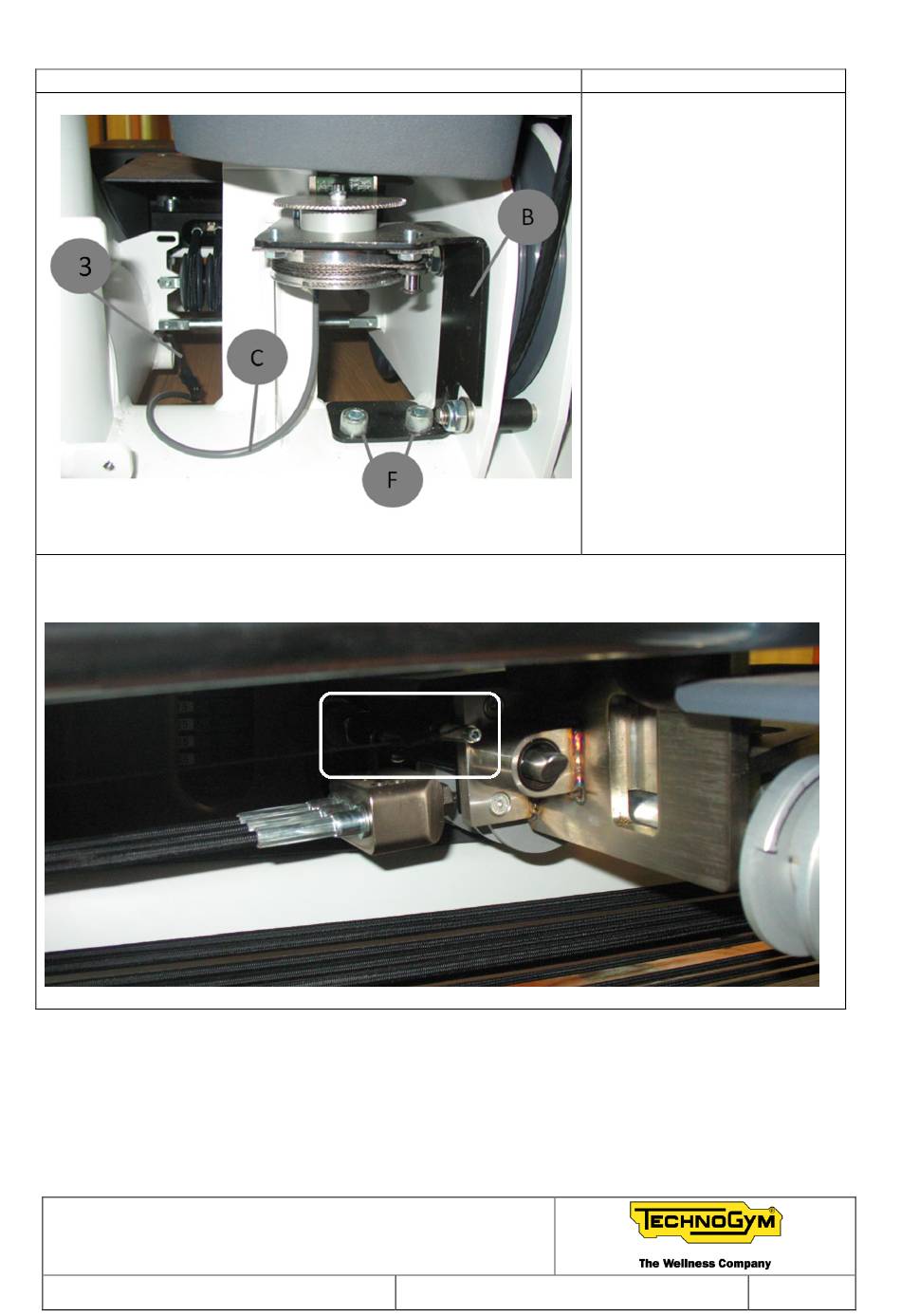

1. Fit the encoder unit (plate +
encoder + sprocket + cord
around the pulley) on the
bracket, using a hexagonal key,
to fasten the 4 screws.
2. Fit the bracket (B) to the
equipment frame, using the 2
bolts (F).
3. Connect the encoder cable
connector (C) to CONNECTOR 3
of the cable supplied in the kit,
making it previous pass through
the equipment frame.
4. Insert the excess portion of
the encoder cable (C) inside the
frame.
