Case 3
CORRECT POSITION
UNITY MINI_INSTALLATION MANUAL
REV 1.0

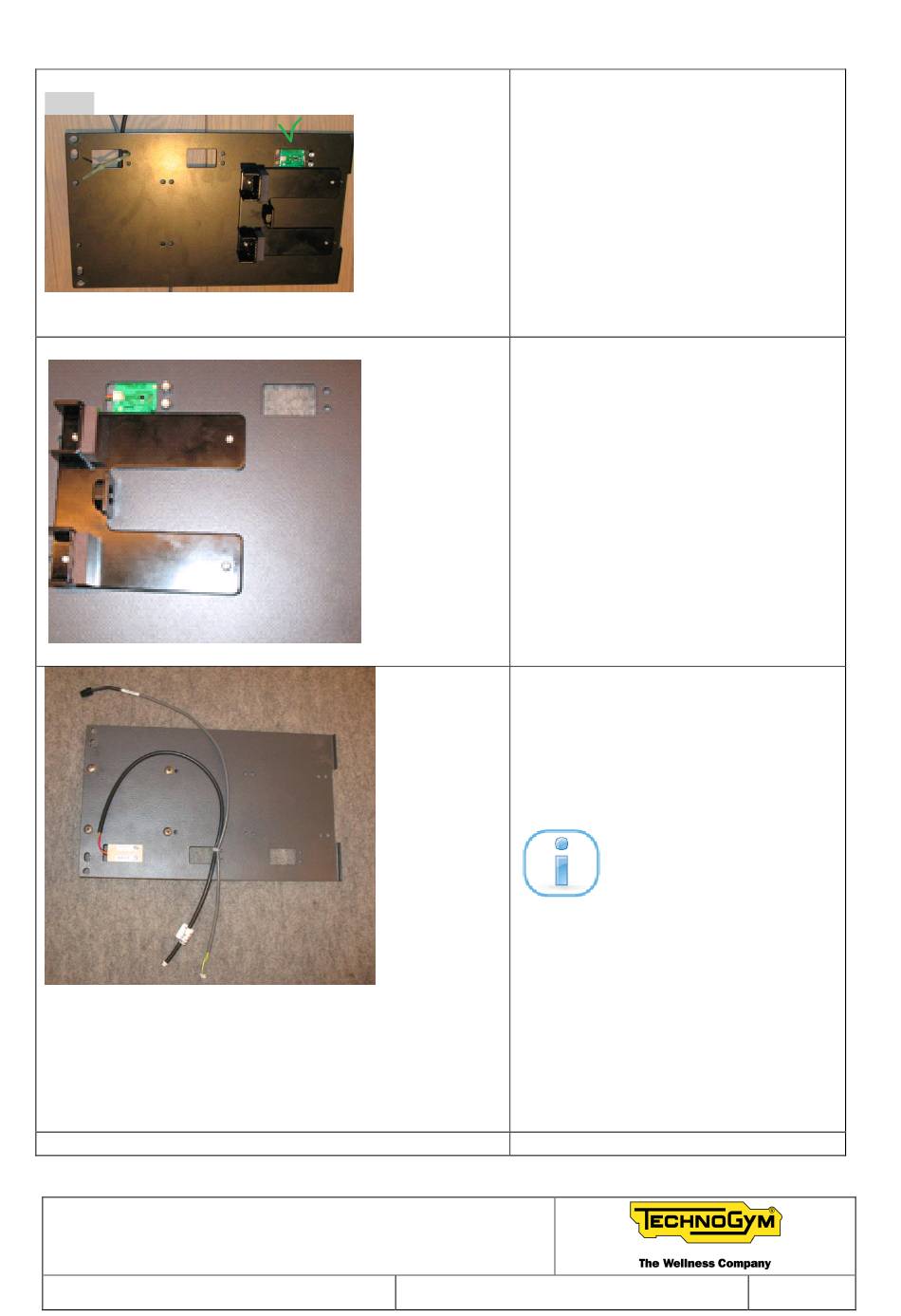

Fit the additional weight board (C) to the
additional weight support plate using two
cross-head screws. Fasten the screws
using pointed pliers and a Phillips
screwdriver.
Position the nuts (normal and self-
locking) on the back of the plate.
Fasten the additional weight sensor cable
(CABLE C) and the weight stack sensor
cable (CABLE D) on the back of the
additional weight support plate, using a
cable tie.
Cut off the extra cable tie using pliers.
and CABLE D that are connected to the
weight stack sensor bar must exit the
same side of the plate, exactly as shown
in the figure.
2016.11.28
The connectors for CABLE C
21/43
