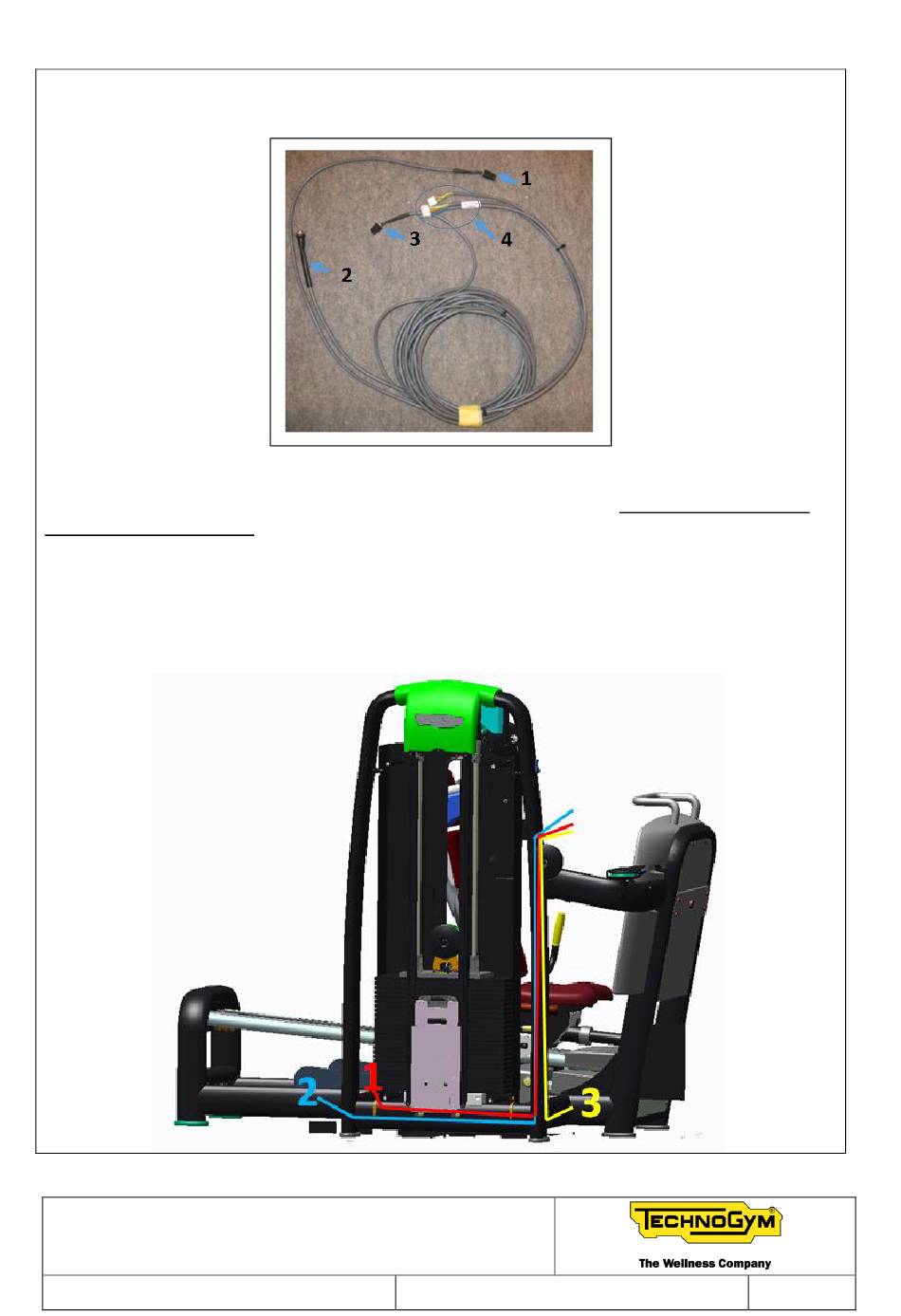

The cable supplied in the kit consists of the following connectors that must pass through the equipment
frame, as follows:
CONNECTOR 1 - "male" connector towards the weight stack sensor bar: pass CONNECTOR 1 through the
hole of the display zone and make it exit from the weight stack sensor zone. (follow the cable passage
procedure indicated below).
CONNECTOR 2 - connector towards the power supply: pass CONNECTOR 2 through the hole of the
display zone and make it exit from the power supply input zone.
CONNECTOR 3 - connector towards the encoder: pass CONNECTOR 3 through the hole of the display
zone and make it exit from the right beam tubular metal piece.
CONNECTOR 4 – connectors towards the display.
UNITY MINI_INSTALLATION MANUAL
REV 1.0
2016.11.28
14/43
