- Page 1 IK-765-B Series Analyzer IK-765SS-B Series xidizer + pH Inline Analyzers For Industrial Cooling & Process Water Startup Guide Pyxis Lab Inc. August 2023 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397...
-
Page 2: Table Of Contents

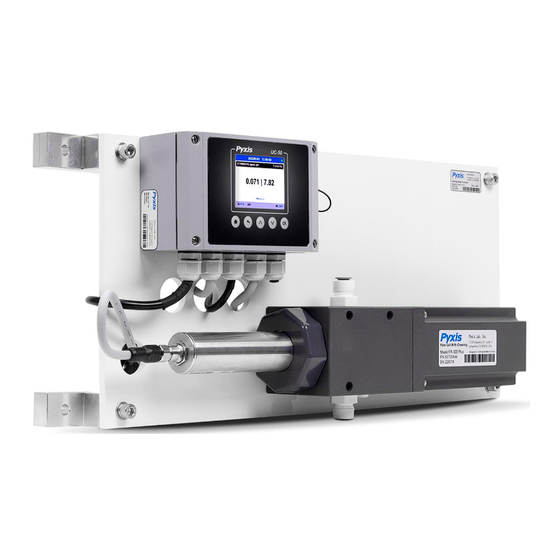

EXPLANATION & USE OF THE SIGNAL HOLD FEATURE ..................30 UC-50 MODBUS RTU SLAVE STATION COMMUNICATION PARAMETERS ..............31 SENSOR CLEANING & MAINTENANCE .........................32 COMMON SENSOR TROUBLESHOOTING ......................32 REPLACING pH / OXIDIZER ELECTRODE HEAD .....................33 ORDER INFORMATION ............................34 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... - Page 3 The IK-765SS-B series analyzer is offered in four sensor formats depending on the desired oxidant being measured. The panel design is equipped with the propriety Pyxis ST-765SS Series smart sensors based on application needs. The ST-765SS series sensors measure Free Chlorine (FCL), Total Chlorine (TCL), Bromine (Br), Chlorine Dioxide (CLO), or Monochloramine (NCL) in addition to pH and temperature of the sample water.
- Page 4 Pyxis replaceable Electrode Head (EH-765) for this sensor allowing for years of reliable service. The ST-765SS Series may be calibrated in-situ after cleaning via DPD or Indophenol Free Chlorine, Total Chlorine, Bromine, Chlorine Dioxide and Monochloramine wet chemistry test measurement of active sample.
-
Page 5: Specifications
6 Months Sensor Body Warranty 13 Months *NOTE* - Pyxis Lab is consistently updating technologies, as such, specifications may change without notice. Technical specifications on the ST-765SS Series sensors can also be found in the ST-765SS Series Operation Manual. Contact info@pyxis-lab.com... -
Page 6: Ik-765Ss-B Series Panel Dimensions (Mm)
IK-765-B Series Analyzer IK-765SS-B Series Panel Dimensions (mm) IK-765SS-B Series FR-300-PUS – Flow Reservoir Dimensions (mm) 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... -
Page 7: 300-Plus Component Schematic
IK-765-B Series Analyzer FR-300-PLUS Component Schematic FRP-300-01 Replacement Brushing Assembly Dimensions (mm) & Image 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... -
Page 8: Frp-300-01 Replacement Brushing Assembly Replacement Procedure
IK-765-B Series Analyzer FRP-300-01 Replacement Brushing Assembly Replacement Procedure 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... -
Page 9: 300-Plus Flow & Operation
100% of the time with Manual ON/OFF control of the motorized brush as a default. This is the Pyxis suggested form of operation of the FR-300-PLUS and the sensor remains wet at all times regardless of operation. This may require special installation techniques to prevent water drainage from the FR-300-PLUS during no flow periods. - Page 10 If power >70%, it will turn red. Please disconnect the system power supply immediately and check the foreign body in the FR-300-PLUS flow reservoir. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397...
-
Page 11: Display/Data Logger Dimensions (Mm)
IK-765-B Series Analyzer UC-50 Display/Data Logger Dimensions (mm) ST-765SS Series Sensor Dimensions (mm) ST-765SS-Series Oxidizer + pH Sensor 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 12: Access Password
Once setting, Move the cursor to OK button to confirm the new password (as shown in figure above). *NOTE* If you forget this password, Contact Pyxis for the administrator password. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com... -
Page 13: Terminal Board Wiring Diagram
Input(4-20mA), which can be converted via DIP switches on UC-50 internal AI/DI module. See UC-50 SETUP OF USER DEFINED SIGNAL INPUT FEATURE section for more details. Digital / Analog Input 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 14: Output Signal/Relay Wiring Details And 4-20Ma Ranges
ST-765SS Series Sensor Signal Pass-Through From UC-50 Unit of Measure 4mA Value 20mA Value 0.00 pH 14.00 pH Oxidizer 0.00 ppm 5.00 ppm (FCL/TCL/NCL/CLO2/Br) UC-50 Analog Output User Defined User Defined 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... - Page 15 If you need to connect a new probe, please correct probe type or select Auto Discover. select the probe settings and then click the ok key button to enter the probe setting page. 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com...
-
Page 16: Setting Date & Time On Uc-50 Display
Return to the Home page by pressing . On the Home page the temperature reading will be displayed in the upper right corner of the screen in the units of measure selected. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 17: Setup Of User Defined Signal Input Feature
4-20mA input value will be displayed in the lower left corner of the main page. e.g., AI: 4.29mA. • If Flow from the Input Type window is selected, users need to calibrate the flowmeter to convert the pulse signal into the correct flow value. 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... - Page 18 ▲ Turn off the FR-300-PLUS when the rotameter outputs high level, otherwise turn on. ▼ Turn off the FR-300-PLUS when the rotameter outputs low level, otherwise turn on. 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com...
-
Page 19: Setup Of User Defined Analog Output Feature
# 220018 and after. This will be programmed for Temperature as a default from the Pyxis factory and referred to in the previous section this output is internally connected to the green wire of 8-pin output pigtail table. Users can select the AOut setting interface of the UC-50 then click on the Parameter option to select the ST-765SS Series probe measurement parameters and alter the A-Out as desired. -
Page 20: Relay Configuration
(hr) and hold time (min) programmed by the user. EXAMPLE - The Parameters displayed below represent the relay turning on every 24 hours, for a duration of 60 minutes. 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... - Page 21 *NOTE* - If the user program security time has been reached but the alarm Lower limit or alarm higher limit have not been met, the UC-50 main screen measurement values will turn RED. 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com...
-
Page 22: Ph Process Calibration
IK-765-B Series Analyzer pH PROCESS CALIBRATION *NOTE* - pH process calibration is only available for ST-765SS series firmware version V3.9.1T and higher & UC- 50 firmware version v1.0r638 and higher 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 23: Ph Low - Calibration Procedure
1 minute and wait for the measurement result to probe calibration result will be automatically stabilize. Click the Ok button to start the pH-Z displayed on the calibration interface. calibration. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 24: Ph High - Calibration Procedure
The probe measurement result to stabilize. Click the Ok button calibration result will be automatically displayed on to start the pH-H calibration. the calibration interface. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 25: Zero Oxidizer - Calibration Procedure
Zero calibration command to the ST-765SS probe and calibration types. First put the probe into the zero-oxidizer waits for the probe calibration result. The probe standard solution (Pyxis PN: 20022) or 100us/cm calibration result will be automatically displayed on conductivity standard is also acceptable for zero standard the calibration interface. - Page 26 The data types from left to right are Oxidizer concentration, pH, temperature and 4-20mA input value. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397...
-
Page 27: Restoring Factory Parameters & Probe Diagnosis
ST-765SS probe to the in a sample water or pH standard solutions. Email factory parameters. images service@pyxis-lab.com technical support. Selecting the Probe Diagnosis in the setting interface of UC-50 controller will display the internal original diagnosis data interface. -
Page 28: Usb Function For Historical Data Upload And Frequency
Once data export 100% completed, you can safely unplug the USB thumb drive. *NOTE* the date range for data upload should not exceed 12 months, otherwise, all data must be exported. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 29: Adjust Uc-50 Historical Data Log Interval
UC-50 USB interface, select USB Settings in Settings page and select Program Upgrade function in USB Settings page. UC-50 will automatically start firmware upgrading procedure and reboot itself once the procedure completed. 21242 Spell Circle, Tomball, TX. 77375 USA | | +1-866-203-8397 info@pyxis-lab.com... -
Page 30: Explanation & Use Of The Signal Hold Feature
Once set where desired, click the OK button to start the HOLD-ON function. HOLD-ON Signal Value Live Sensor Value 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 31: Modbus Rtu Slave Station Communication Parameters
*NOTE* If the base address is 1, such as PLC system, access directly according to the register address. If the base address is 0 system, the register address is reduced by 1 after access. 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com | +1-866-203-8397... -
Page 32: Sensor Cleaning & Maintenance
Q-tips, then re-rinse. For a highly fouled sensor, soak the lower half of the sensor in 100 mL Pyxis inline sensor cleaning solution for 10-15 minutes. Gently rub the sensor electrode head with the provided Q-tips. If the surface is not entirely clean, continue to soak the sensor for an additional time until clean. -
Page 33: Replacing Ph / Oxidizer Electrode Head
The pH/oxidizer electrode head of ST-765SS Series can be replaced when the original electrode head reaches its working life. Order a replacement electrode head EH-765 (P/N 53061) from Pyxis and follow instructions as below. Turn off the sensor if it is powered on. -
Page 34: Order Information
(Replacement Brush Assembly for FR-300+) Nano-Flow Control Module 21329 (Ultrasonic Flow Regulating Module Micro-Panel) UC-50 Display + Data Logging Terminal 43007 (Replacement) SP-200 OxiPocket 50802 (Pocket All-Oxidizing Disinfectants Colorimeter & Fluorometer) 21242 Spell Circle, Tomball, TX. 77375 USA | info@pyxis-lab.com +1(866)203-8397...
