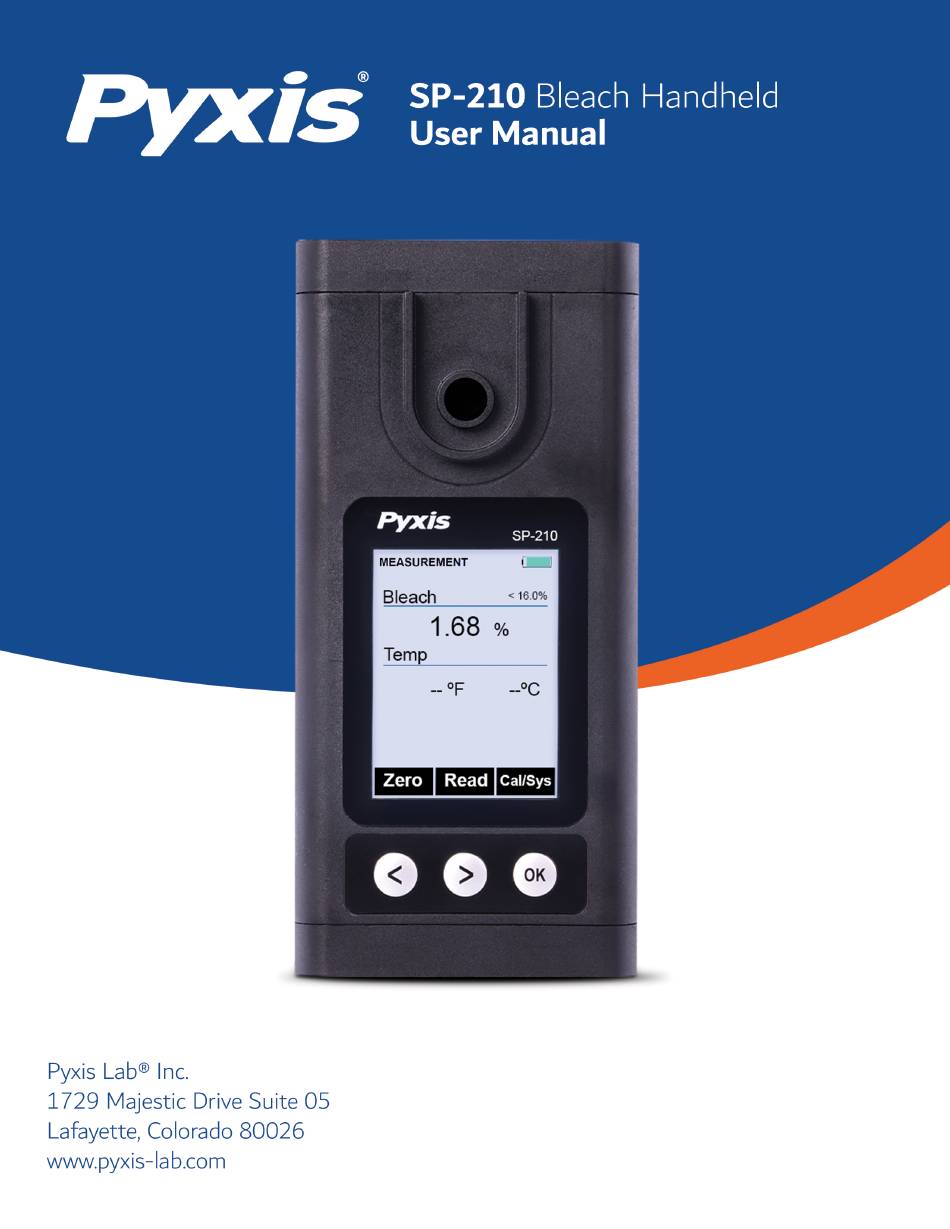

- Page 2 SP-210 Bleach Handheld User Manual August 23, 2021 Rev. 1.00 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
-
Page 3: Table Of Contents
Table of Contents 1 Introduction 1.1 Main Features ..........2 Specifications 3 Unpacking Instrument 3.1 Standard Accessories . - Page 4 Pyxis Lab, Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
-
Page 5: Introduction

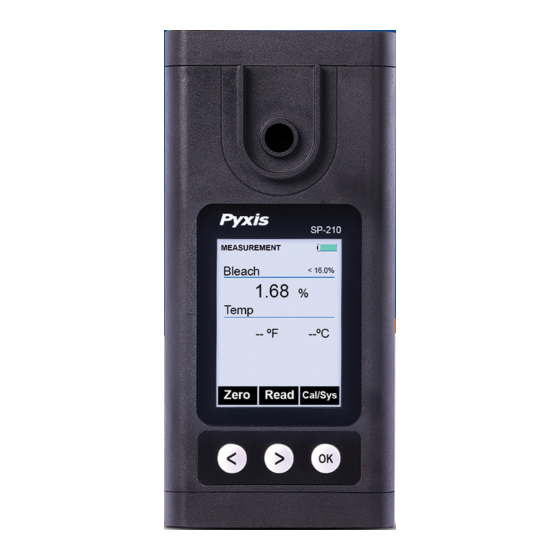

1 Introduction The Pyxis SP-210Bleach Handheld measures the mass/mass concentration of Chlorine in Sodium Hypochlo- rite Bleach solution. Without any reagent kits, the SP-210 can quickly test high Sodium Hypochlorite Bleach concentration parameters on the spot with high sensitivity. 1.1 Main Features The SP-210 includes the following features: •... -
Page 6: Standard Accessories
• Bluetooth/USB Adapter for Desktop P/N: MA-NEB • User Manual available online at https://pyxis-lab.com/support/ 3.2 Optional Accessories The following optional accessories can be ordered from Pyxis Customer Service (order@pyxis-lab.com) or Pyxis E-Store at https://pyxis-lab.com/shop/. Table 2. Accessory Name Part Number (P/N) -
Page 7: Installation
The SP-210 is powered by four alkaline batteries. Typical battery life lasts for 10,000 measurements or 10 months. When the battery capacity is critically low, the SP-210 will display a ”LOW BATTERY” warning for 5 seconds and then automatically turn off. -
Page 8: Instrument Overview
To turn off the SP-210: Press and hold for about three seconds. Release when the LCD display turns off. The SP-210 turns itself off after 60 seconds without user interaction detected. This is done to conserve battery life. NOTE This auto-time off setting may be customized by the user as desired through the uPyxis®... -
Page 9: Measurement
To avoid residue or contamination from the previous solution, please clean the sample cell at least three times. NOTE Be sure to clean the sample cell after each use of the SP-210 and dry it with a clean paper towel to avoid over force damage. 6.2 Suspended Solids Chromaticity Interference The SP-210 has extra channels to measure sample suspended solids and color which are used to automati- cally compensate for any interference caused by these contaminants as high as 20–50 mg/L. -
Page 10: Calibration
2. Power on the SP-210 by pressing 3. The SP-210 displays and measures the concentration of bleach. If deionized water is used, the mea- sured value will be very low; the value of sodium hypochlorite should be close to zero. A relatively low non-zero reading (e.g., 0.01 etc.) is not a problem. -
Page 11: Device Information And Diagnosis
(Figure 9). The information has no use for normal operation, but instead is used for device troubleshooting. Provide an image of both the DEVICE INFORMATION screen and the SYSTEM DIAGNOSIS screen when you contact Pyxis (service@pyxis-lab.com) for troubleshooting your device or call +1 (866) 203-8397. SP-210 User Manual service@pyxis-lab.com... -
Page 12: Bluetooth Connection To Devices
8.1 Bluetooth Connection to Devices The SP-210 uses a built-in Bluetooth Low Energy Connection (BTLE) to connect wirelessly to a smart phone via the uPyxis® Mobile App or to a computer via the included Bluetooth Adapter (P/N: MA-NEB) and the uPyxis®... -
Page 13: Use With Upyxis® Mobile App
Figure 10. 9 Use with uPyxis® Mobile App 9.1 Download uPyxis® Mobile App Download uPyxis® Mobile App from Apple App Store Google Play. Figure 11. uPyxis® Mobile App installation SP-210 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 14: Connecting To Upyxis® Mobile App
2. Open uPyxis® Mobile App. 3. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices. 4. If the connection is successful, the SP-210 and its Serial Number (SN) will be displayed (Figure 12). 5. Press on the SP-210 image. -
Page 15: System Screen
The firmware update process takes some time and will require the SP-210 to stay within range (approximately 10 ft without obstructions) for the entire duration of the up- date. Once the update is complete, the SP-210 will reboot which will disconnect the SP-210 from the uPyxis® Mobile App. Figure 13. -
Page 16: Setting Screen
9.4 Setting Screen From the Setting screen, the user can set the Power off time and Screen off time in seconds. Figure 14. SP-210 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 17: Datalog Screen
9.5 Datalog Screen From the Datalog screen, the user can view and export the internal log files of the SP-210 by pressing Read Datalogs and selecting the desired datalog (these are separated by month). The SP-210 will then populate any relevant log event from the selected datalog which can be viewed in more detail by pressing... -
Page 18: Connecting To Upyxis® Desktop App
4. On uPyxis® Desktop App, click Device Connect via USB-Bluetooth (Figure 17). 5. If the connection is successful, the SP-210 and its Serial Number (SN) will be displayed in the left pane of the uPyxis® window. Figure 17. SP-210 User Manual service@pyxis-lab.com... -
Page 19: System Screen
The firmware update process takes some time and will require the SP-210 to stay within range (approximately 10 ft without obstructions) for the entire duration of the up- date. Once the update is complete, the SP-210 will reboot which will disconnect the SP-210 from the uPyxis® Mobile App. Figure 18. -
Page 20: Setting Screen
Figure 19. 10.5 Datalog Screen From the Datalog screen, the user can view, delete, and export the internal log files of the SP-210 by clicking Read Datalog List and selecting the desired datalog (these are separated by month). The SP-210 will then... -
Page 21: Device Maintenance And Precaution
The SP-210 should be stored in the temperature range of 0–140 °F (-18–60 °C) and relative humidity less than 85% at 106 °F (41 °C). Do not leave the SP-210 in a parked vehicle as the temperature inside can reach above 150 °F in summer and -20 °F in winter.
