Page 5: Introduction

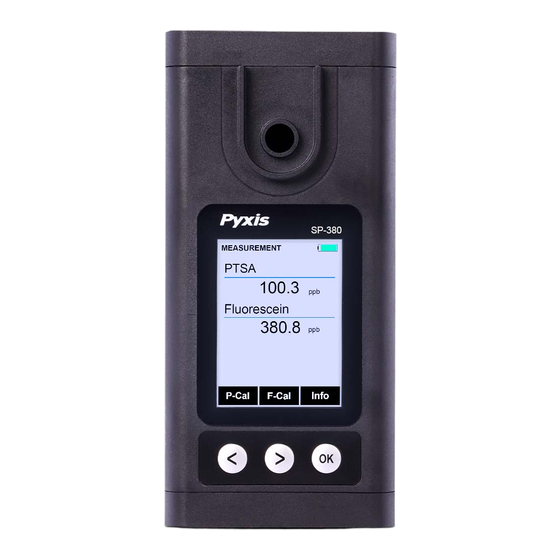

1 Introduction The Pyxis SP-380 is a uniquely designed handheld multimeter that measures both PTSA and Fluorescein, simultaneously. It is a cuvette-less device. Less than 5 mL water sample is needed to fill the sample cell for proper measurement. 1.1 Main Features The SP-380 includes the following features: •... -
Page 6: Unpacking Instrument
Remove the instrument and accessories from the shipping container and inspect each item for any damage that may have occurred during shipment. Verify that all items listed on the packing slip are included. If any items are missing or damaged, please contact Pyxis Customer Service at service@pyxislab.com. 3.1 Standard Accessories •... -
Page 7: Optional Accessories
The SP-380 is powered by four alkaline batteries. Typical battery life lasts for 10,000 measurements or 10 months. When the battery capacity is critically low, the SP-380 will display a ”LOW BATTERY” warning for 5 seconds and then automatically turn off. -
Page 8: Instrument Overview
To turn off the SP-380: Press and hold for about three seconds. Release when the LCD display turns off. The SP-380 turns itself off after 60 seconds without user interaction detected. This is done to conserve battery life. NOTE This auto-time off setting may be customized by the user as desired through the uPyxis®... -
Page 9: Measurement
6 Measurement 6.1 PTSA Measurement When powered on, the SP-380 will default to the PTSA measurement mode. If the SP-380 is instead in Fluorescein measurement mode, press PTSA ( ) to switch to PTSA measurement mode. The water sample can be transferred to the sample cell using a pipette or filled directly from a faucet, sample bottle, or sample valve. -
Page 10: Fluorescein Measurement
6.2 Fluorescein Measurement When powered on, the SP-380 will default to the PTSA measurement mode. Press FC ( ) to switch to Fluorescein measurement mode. The water sample can be transferred to the sample cell using a pipette or filled directly from a faucet, sample bottle, or sample valve. -
Page 11: Calibration
DI water for the zero step as soon as it is available. 2. Power on the SP-380 by pressing . Allow 5–10 seconds for the SP-380 to stabilize. 3. The unit is actively reading and displaying PTSA. The values will be very low if DI water is used; con- ductivity value is not critical but PTSA value should be near zero. -
Page 12: Fluorescein Calibration
7.2 Fluorescein Calibration The SP-380 is designed to provide a flexible calibration procedure. The user can start with the two-point (DI water and 50 ppb fluorescein) calibration and progressively add a three- and four-point calibration with 250 ppb and 500 ppb fluorescein, respectively. This allows the user to choose a procedure based on the need of measurement accuracy and the target fluorescein range. - Page 13 Success” message will appear (Figure 11). Otherwise, a warning message is displayed. 18. Calibration is now complete. Press Exit ( ) to return to Fluorescein measurement mode. Figure 7. Figure 8. Figure 9. SP-380 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
-
Page 14: Device Information And Diagnosis
(Figure 13). The information has no use for normal operation, but instead is used for device troubleshooting. Provide an image of both the DEVICE INFORMATION screen and the SYSTEM DIAGNOSIS screen when you contact Pyxis (service@pyxis-lab.com) for troubleshooting your device or call +1 (866) 203-8397. Figure 12. -
Page 15: Sample Cell Cleanliness Check
It is suggested that the SP-380 be checked for fouling and cleaned on a monthly basis. Heavily contaminated waters may require more frequent cleanings. Cleaner water sources with less contamination may not require cleaning for several months. -
Page 16: Bluetooth Connection To Devices
8.2.1 Calibrate an ST-500 Series Sensor with the SP-380 via Bluetooth The SP-380 can be used to verify the result of an inline Pyxis ST-500 Series sensor by measuring the sample water taken from the inline sensor sample line. The SP-380 can then be used to calibrate the inline sensors over the Bluetooth connection. - Page 17 13. The SP-380 will take the sensor PTSA measurement three times to verify the calibration (Figure 21). NOTE It takes about one minute for the sensor to approach the calibrated reading and the three verifying readings may not be exactly the same as the value measured by the SP-380Ṗ...
-
Page 18: Factory Reset
8.3 Factory Reset Use the following steps to restore all device parameters to factory default: 1. Power on the SP-380 by pressing 2. Press Info ( ) to launch the DEVICE INFORMATION screen. 3. Press Diagnosis ( ) to launch the SYSTEM DIAGNOSIS screen. -
Page 19: Use With Upyxis® Mobile App
2. Open uPyxis® Mobile App. 3. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices. 4. If the connection is successful, the SP-380 and its Serial Number (SN) will be displayed (Figure 26). 5. Press on the SP-380 image. -
Page 20: Setting Screen
When connected, the uPyxis® Mobile App will default to the Setting screen. From the Setting screen, the user can set the Power off time and Screen off time in seconds. Figure 27. SP-380 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 21: System Screen
The firmware update process takes some time and will require the SP-380 to stay within range (approximately 10 ft without obstructions) for the entire duration of the up- date. Once the update is complete, the SP-380 will reboot which will disconnect the SP-380 from the uPyxis® Mobile App. Figure 28. -
Page 22: Use With Upyxis® Desktop App
Desktop application. Double click the uPyxis.Setup.exe file to install. Figure 29. uPyxis® Desktop App installation Click Install to start the installation process. Follow the screen instructions to complete the USB driver and uPyxis installation. SP-380 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 23: Connecting To Upyxis® Desktop App
4. On uPyxis® Desktop App, click Device Connect via USB-Bluetooth (Figure 30). 5. If the connection is successful, the SP-380 and its Serial Number (SN) will be displayed in the left pane of the uPyxis® window. Figure 30. SP-380 User Manual service@pyxis-lab.com... -
Page 24: System Screen
The firmware update process takes some time and will require the SP-380 to stay within range (approximately 10 ft without obstructions) for the entire duration of the up- date. Once the update is complete, the SP-380 will reboot which will disconnect the SP-380 from the uPyxis® Mobile App. Figure 31. -
Page 25: Datalog Screen
10.4 Datalog Screen From the Datalog screen, the user can view, delete, and export the internal log files of the SP-380 by clicking Read Datalog List and selecting the desired datalog (these are separated by month). The SP-380 will then... -
Page 26: Device Maintenance And Precaution
11 Device Maintenance and Precaution 11.1 Maintenance Best Practices and Quick Tips For greatly increased working life and ease of use of the SP-380 follow the list of maintenance best practices and quick tips below: • Rinse the sample cell at least three times with the desired solution before turning on. -
Page 27: Storage
11.3 Storage Do not expose the SP-380 to an extreme high or low temperature condition such as leaving the SP-380 inside an unattended automobile. 12 Contact Us Pyxis Lab, Inc 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com...
