Summary of Contents for Pyxis PRISM RT-100
-
Page 2: Table Of Contents
Table of Contents 1 Introduction........................2 1.1 Main Features ......................2 2 Specifications ........................ 3 3 Unpacking Instrument ....................4 3.1 Standard Accessories ....................4 3.2 Optional Accessories ....................5 4 Installation ........................5 4.1 Main Assembly ......................5 4.2 Piping .......................... 6 4.3 Wiring ......................... - Page 3 8.5 Diagnosis Screen ....................... 21 9 Outputs ........................21 9.1 4–20mA Output Setup ....................21 9.2 Communication using Modbus RTU ................. 22 10 Sensor Maintenance and Precaution ............... 23 10.1 Methods to Cleaning the Prism RT-100 ..............23 11 Contact Us ......................... 23...
- Page 5 A Repair Authorization (RA) Number must be obtained from Pyxis Technical Support before any product can be returned to the factory. Pyxis will pay freight charges to ship replacement or repaired products to the customer. The customer shall pay freight charges for returning products to Pyxis. Any product returned to the factory without an RA number will be returned to the customer.
-
Page 6: Introduction

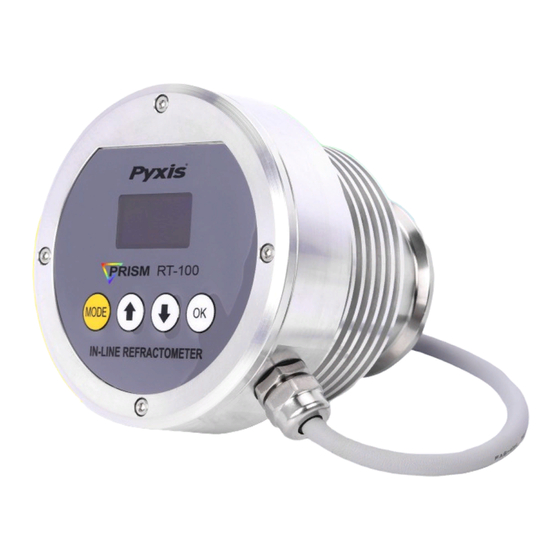

1 Introduction The Pyxis Prism RT-100 is an online digital refractometer that measures the refractive index of a liquid sample. This sensor provides a direct reading of highly accurate concentration values for a wide variety of water and process related applications. It is a stand-alone device capable of self-sustained operation, live data display, and data logging. -
Page 7: Specifications
Sapphire, 316L Stainless steel SIGNAL OUTPUT 2x 4-20 mA and RS-485 Modbus POWER 24 VDC (1.5W) REGULATION CE / RoHS Marked With Pyxis’s continuous improvement policy, these specifications are subject to change without notice. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 8: Unpacking Instrument
Remove the instrument and accessories from the shipping container and inspect each item for any damage that may have occurred during shipping. Verify that all accessory items are included. If any item is missing or damaged, please contact Pyxis Lab Customer Service at service@pyxis-lab.com. 3.1 Standard Accessories RT-100 Prism Package (P/N 55105) •... -
Page 9: Optional Accessories
(P/N) Prism RT-Series Wall Outlet Power Supply Adapter Kit 56207 (Plug In Power Supply Kit - Converts Wall Outlet 110VAC to 24VDC for Prism RT-100 —2-Pin) MA-CR MA-CR (Bluetooth Adapter for 8-Pin Pyxis Sensors for use with uPyxis Mobile & Desktop) -
Page 10: Piping
Plug Cap 64mm,Reserved Self-cleaning 4.2 Piping The Prism RT-100 with Tri-Clamp Flow Cell Assembly should be installed per the diagram provided in Figure 4. Be sure to avoid installations illustrated in Figure 5. Figure 4. Correct Installations Prism RT-100 User Manual service@pyxis-lab.com... -
Page 11: Wiring
The Prism RT-100 unit offers two (2) cable points of attachment, both terminated with a unique connector (Figure 6). The Prism RT-100 may be powered via a direct 24VDC supply source (via 8-Pin cable provided with the Prism RT-100) or by the provided accessory called Prism RT-100 Wall Outlet Power Supply Adapter Kit (P/N 56207). -
Page 12: Connecting Via Bluetooth
Figure 6. Prism RT-100 with Wall Outlet Supply Adapter Kit (P/N: 56207) and MA-1.5CR Flying Lead Cable (P/N: 50746) 4.4 Connecting via Bluetooth Connect the Prism RT-100 to the Pyxis MA-CR Bluetooth adapter and a 24 VDC power source according to the figures below. -
Page 13: Instrument Overview
Figure 7. 24VDC Powered via Controller through 8-Pin Cable and MA-CR Bluetooth Adapter Figure 8. 24VDC Powered via 110VAC Wall Outlet through Prism RT-100 Wall Outlet Power Supply Adapter (P/N: 56207) 5 Instrument Overview 5.1 Key Functions Figure 9. Prism RT-100 Main Display Screen Table 5. -
Page 14: Measurement Modes
5.2 Measurement Modes The Prism RT-100 measures the sample refractive index (nD) and temperature. Use the arrow keys to select the concentration units that are calculated from nD and the temperatures with using the pre-loaded equations for Brix, MPG, MEG, and ALV, etc. The main output of 4-20mA signal value switches with the display concentration selected per the 4-20mA output scales section 9.1 of this manual. -
Page 15: Cleaning Cycle Programming And Reset Of Parameters
5.5 Reset Parameters This mode will erase the user’s calibration and setting information, restore the factory calibration and setting information, including air calibration, brix/liquid concentration offset calibration, sensitivity, etc. Figure 18. Figure 19. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 16: Calibration
1. Clean the Prism RT-100 sapphire lens with soft tissue. 2. If any tenacious deposits are present on the sensor lens, you may pre-soak the sensor lens in Pyxis Probe Cleaning Solution (P/N: SER-01) for 10–15 minutes, then rinse with clean water and wipe with soft tissue prior to proceeding to air calibration of refractive index. -
Page 17: Brix And Other Liquid Concentration Offset Calibration
This displayed liquid concentration unit value may be calibrated to a known solution if desired. To do this: 1. Place the Prism RT-100 in the calibration liquid of a known concentration making sure the sensor is covered from ambient light. -
Page 18: Connecting To Upyxis® Mobile App
3. On uPyxis® Mobile App, swipe down with finger on the main screen to refresh the list of available Pyxis devices. 4. If the connection is successful, the Prism RT-100 and its Serial Number (SN) will be displayed (Figure 25). -
Page 19: Calibration Screen And Reading
20mA value may be set to 100% or lower). Please refer to Section 9.1 for default 4-20mA output scales of the RT-100. Figure 26. – Calibration Screen Interface uPyxis Mobile APP. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 20: Diagnosis Screen
NOTE The Prism RT-100 is programmed to store data at a frequency of once per minute with a maximum of 56 days storage capacity. The Diagnosis screen’s functions are described in table below: Table 6. -
Page 21: Device Info Screen
PC), the USB driver for the USB-Bluetooth Adapter (MA-NEB), the USB-485 Adapter (MA-485), and the main uPyxis® Desktop application. Double click the uPyxis.Setup.exe file to install. Figure 29. uPyxis® Desktop App installation Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 22: Connecting To Upyxis® Desktop App
4. On uPyxis® Desktop App, click Device → Connect via USB-Bluetooth (Figure 30). 5. If the connection is successful, the Prism RT-100 and its Serial Number (SN) will be displayed in the left pane of the uPyxis® window. NOTE After the sensor and Bluetooth is powered up, it may take up to 10 seconds for the adapter to establish the wireless signal for communication. -
Page 23: Information Screen
Desktop App will default to the Information screen. On the Information screen you can set the information description for Device Name, Product Name, and Modbus Address, then click Apply Settings to save. Figure 31. – Information Screen uPyxis Desktop Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 24: Calibration Screen
20mA output value of the concentration selected. (i.e.. for BRIX concentration, the 20mA value may be set to 100% or lower). Please refer to Section 9.1 for default 4-20mA output scales of the RT-100. Figure 32. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 25: Diagnosis Screen
The 4 ~ 20mA range can be modified by uPyxis, if the default range is not suitable (refer to Calibration Sections 7.3 and 8.4 of this manual). The 4–20mA default output of the Prism RT-100 sensor is scaled as outlined below. -
Page 26: Communication Using Modbus Rtu
9.2 Communication using Modbus RTU The Prism RT-100 sensor is configured as a Modbus slave device. In addition to the nD, %Bx, %MEG, %MPG, %ALV, %ALV PLUS, % GEO and temperature values, many operational parameters, including warning and error messages, are available via a Modbus RTU connection. Contact Pyxis Lab Customer Service (service@pyxis-lab.com) for more information. -
Page 27: Sensor Maintenance And Precaution
If the surface is not entirely clean, continue to soak the sensor for an additional time until clean. Lightly wipe the sensor lens with a soft tissue. Rinse sensor eye with clean or DI water. Pyxis Lab Inline Sensor Cleaning...
