SP-910 Portable Water Analyzer
Operation Manual
Rev. A
Firmware version 1.0.170
 Pyxis Lab, Inc 2016
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyxis SP-910

Summary of Contents for Pyxis SP-910

  • Page 1 SP-910 Portable Water Analyzer Operation Manual Rev. A Firmware version 1.0.170  Pyxis Lab, Inc 2016 All Rights Reserved...
  • Page 2 Pyxis Lab, Inc PO Box 802 Hopkinton, MA 01748 www.pyxis-lab.com service@pyxis-lab.com...

  • Page 3: Table Of Contents

    2.3 Turning On Pyxis SP-910 ............... 11 2.4 Main Page ..................... 11 2.5 Turning Off Pyxis SP-910 ............... 12 2.6 Pyxis SP-910 Auto Power Off ..............12 2.7 Auto LCD Power Saving ................. 12 3 PTSA Measurement ..................13 3.1 PTSA Measurement ................13 3.2 PTSA calibration ..................
  • Page 4 6.2 Turbidity Calibration ................25 7 Absorbance Measurement..............27 8 Bluetooth Interface ................... 28 8.1 Install Software ..................28 8.2 Open SP-910 Bluetooth Interface ............28 8.3 Scan and Connect ................. 28 8.4 Device Configuration ................29 Setup Device Name ................. 29 Setup Product ..................
  • Page 5 Figures Figure 1 Insert the Sample Vial ................. 7 Figure 2 Open and Close the Light Shield Cover ..........9 Figure 3 Replace Batteries ................10 Figure 4 Main Menu ..................11 Figure 5 PTSA Measurement ................13 Figure 6 PTSA Calibration ................14 Figure 7 Fluorescein Measurement ..............
  • Page 6 (i.e., equivalent to new). The warranty set forth isexclusive and no other warranty, whether written or oral, is expressed or implied. Warranty Term The Pyxis warranty term is thirteen (13) months ex-works. In no event shall the standard limited warranty coverage extend beyond thirteen (13) months from original shipment date. Warranty Service Damaged or dysfunctional instruments may be returned to Pyxis for repair or replacement.

  • Page 7: General Description

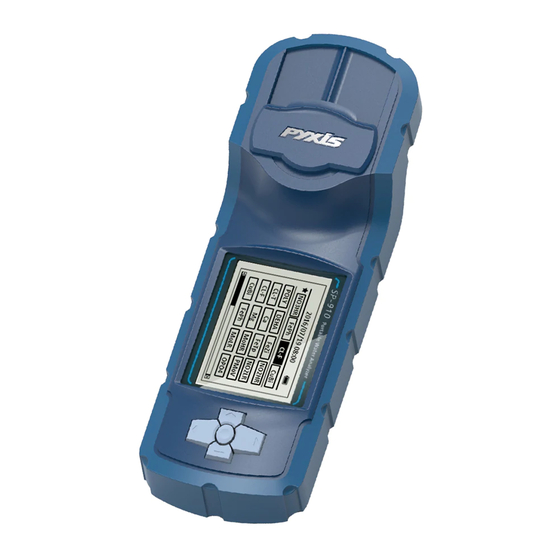

    1. Specifications are subject to change without notice with Pyxis’ continuous development. 1.1 Pyxis Major Features The Pyxis SP-910 analyzer shown in Figure 1 is a combination of photometer and fluorometer. It provides colorimetric measurements at 6 LED wavelengths, fluorometric measurement of fluorescent tracer PTSA and fluorescein, and nephelometric turbidity...

  • Page 8: Unpackaging The Instrument

    Pyxis SP-910 is pre-calibrated for measuring fluorescein in the range of 0 to 20  ppb. Pyxis SP-910 is pre-calibrated for measuring turbidity in the range of 0 to 500 NTU.  Automatically select the primary wavelength according to the method selected and ...

  • Page 9: Standard Accessories

    The light shield cover should be in the closed position during storage, transportation, and measurements, especially during the turbidity and fluorescence measurements. When turned on, Pyxis SP-910 carries out self-diagnosis including checking the performance of a variety of optical devices. The light shield door shall be at the closed position to shield interference from ambient light during self-diagnosis.

  • Page 10: Figure 2 Open And Close The Light Shield Cover

    Figure 2 Open and Close the Light Shield Cover Warning Magnetic sensitive devices, including but not limited to, credit cards, watched, hard disks, should be keep at a distance of at least 2 inches from the Light Shield Door to avoid possible damage and/or loss of information recorded.

  • Page 11: Start Pyxis Sp-910

    LOW BATTERY warning. Replace all four batteries to resume operation of Pyxis SP-910 after the battery warning. The Pyxis SP-910 battery compartment, shown in Figure 3, is on the back side of the instrument. Insert a small pad underneath the screen area to make the back surface level when the instrument is turned upside down.

  • Page 12: Turning On Pyxis Sp-910

    2.3 Turning On Pyxis SP-910 To turn on SP-910, press and hold on the OK key for 3 seconds, and release the OK key when the LCD is lit. After new batteries installation,Pyxis SP-910 will be automatically turned on, and its LCD backlight will be on.

  • Page 13: Turning Off Pyxis Sp-910

    2.5 Turning Off Pyxis SP-910 Turn Pyxis SP-910 off by navigating to Power icon and press the OK key. 2.6 Pyxis SP-910 Auto Power Off Pyxis SP-910 automatically turns itself off with no-key activity, except for during a measurement.The auto power off time can be set. Pressing and holding the OK key for 3 seconds will wake up the instrument, and return to the original page if it has any measurement data.

  • Page 14: Ptsa Measurement

    2. Place the sample vial into the sample vial compartment and slide the light shield cover to the closed position. 3. Press the M-P on the main page, then press the ok button,Pyxis SP-910 will start to measure the PTSA concentration in the sample.

  • Page 15: Fluorescein Measurement

    2. Place the sample vial into the sample vial compartment and slide the light shieldcoverto the closed position. 3. Press the M-F on the main page, then press the ok button,Pyxis SP-910 will start to measure the fluorescein concentration in the sample.

  • Page 16: Fluorescein Calibration

    Figure 7 Fluorescein Measurement For best results, ensure that the sample vial is clean. Wipe off water on the outside wall of the sample vial using a lint-free tissue paper. Fill the sample vial to the 10 ml mark. If the sample contains air bubbles, tap the sample vial gently to remove the bubbles before placing the sample vial to sample vial compartment.
  • Page 17  The sample vial compartment is blocked with debris, water, or other materials. The 20 ppb standard solution shall be stored in a brown or black opaque bottle. Exposing the fluorescein standard to light will cause the standard losing the fluorescein concentration.

  • Page 18: Colorimetric Measurement

    5 Colorimetric Measurement 5.1 Supported Methods A wide range of colorimetric methods is supported by the Pyxis SP-910 analyzer and the number of them keeps increasing with continuous development of Pyxis. See corresponding Hach® methods in Appendix A. Table 2 List of Supported Colorimetric Methods...
  • Page 19 Abbreviated Method Name Description Range Method Name method PAmi OPO4-Amino Reactive phosphate, amino 30.0 ppm acid reduction method ClO2 ClO2-DPD DPD method, USEPA accepted 5.00 ppm for reporting drinking water analysis ClO2D ClO2Direct Direct method for chlorine 35.0 ppm dioxide SiHR SiHR High range silica...

  • Page 20: Select A Method

    23 methods. Note: Methods shown in the method selection pages include Hach© equivalent methods and Pyxis specific advanced methods. The table in Appendix A provides a brief description of Pyxis method names and their corresponding Hach® program number.

  • Page 21: Single-Vial Procedure

    Figure 10 Single Timer Method 5.4 Single-Vial Procedure 1. Place the sample vial filled with the water sample in the Pyxis SP-910 sample vial compartment and press the ZERO button. Pyxis SP-910will display the page shown in Figure 11.

  • Page 22: Multiple Timing Steps

    The following procedure is typical for two-vial methods: 1. Place the prepared blank into the Pyxis SP-910 sample vial compartment and press the ZERO button to zero the instrument.

  • Page 23: Advanced Methods

    In order to show the concentration-time curve as shown in Figure 9during the last timing step, Pyxis SP-910must be zeroed using the prepared blank before the last timing step. Thus, the last timer button will not be selectable until Pyxis SP-910 has been zeroed using the prepared blank. Multi-timing step Hach® methods require zeroing the colorimeter using the prepared blank after the last timing step is completed.

  • Page 24: Method Setup And Calibration

    1. Place a vial filled with deionized water into the vial compartment and press the ZERO button to zero Pyxis SP-910. 2. Discard the deionized water and fill the same vial with the sample. Place the vial into the vial compartment and press READ button to read. The measured chlorine dioxide concentration will be displayed in the top of the method page.

  • Page 25: Figure 13 Method Form Selection

    The following steps are used to calibration a method: 1. Use a calibration standard of known concentration. Follow the steps required by the method and note the value reported by SP-910. 2. If the measured value differs from the known standard value,Press theCONFG button to launch the method configuration page.

  • Page 26: Turbidity Measurement

    2. Insert the sample vial to the sample vial compartment. 3. Slide the light shield cover to the closed position. 4. Press the Turb on the main page, then press the OK key, Pyxis SP-910 will start to measure the turbidity in the sample.

  • Page 27: Figure 16 Turbidity Calibration-1

    3. Slide the light shield cover to the closed position. 4. Press the CAL on the main page, then choose the Turb calibration and press the ok button to launch the Turb calibration page.(Figure 16) 5. Press the OK key to measure the deionized water 6.

  • Page 28: Absorbance Measurement

    Wavelength (nm) not used Note that the absorbance values measured with Pyxis SP-910 is generally smaller than those measured with a spectrophotometer equipped with a monochromatic light source or detector. The Pyxis SP-910 absorbance values should, however, linearly correlate with the...

  • Page 29: Bluetooth Interface

    Thus for any colorimetric system, Pyxis SP-910 absorbance follows Lambert-Beer law. 8 Bluetooth Interface SP-910 equipped with a Bluetooth interface, which allows a user to connect to SP-910 with a computer or a smartphone to do the following tasks:  Configure device ...

  • Page 30: Device Configuration

    “Add”: add one empty method entry in user defined method list “Delete”: delete one method from user defined method list “Download”: send new method to SP-910 “Upload”: read user defined methods from SP-910 “Load/Save methods” read/write methods to local file...

  • Page 31: Maintenance

    Use a soft cloth or lint free paper tissue to clean the sample vial compartment periodically. Remove debris, scale, and deposit promptly. Although Pyxis SP-910 is protected from water damage, it is a good practice to avoid water entering the sample vial compartment and becoming trapping underneath the navigational control pad.
  • Page 32 BATTERY voltage. Remove batteries from Pyxis SP-910 battery compartment if Pyxis SP-910 is going to be placed in storage for a long period time. When the Pyxis SP-910 is shipped, a desiccant pack is included in the desiccant compartment underneath the cover of the battery compartment. It is recommended...

  • Page 33: Troubleshooting

    If the Pyxis SP-910 has been idle for more than two months and cannot be turned on, replace all four batteries with four new AA alkaline batteries.

  • Page 34: Appendix A

    11 Appendix A. Pyxis Method and Hach® Method Number (PRMP) Cross Reference Abbreviated Method Name Corresponding Hach © method Hach Methed Method Number Name CL-F F-Chlorine Chlorine, Free, DPD, PRMP 9 8021 CL-T T-Chlorine Chlorine, Totoal, DPD, PRMP 9 8167...
  • Page 35 Sulfate. PRMP 91 8051 POLY Polymer Turbidimetric method for anionic polymers FeMo FeMo Iron, for cooling water with 8365 molybdenum-based treatment, PRMP 38 Hexavalent chromium, 1,5- 8023 Diphenylcarbohydrzaide Method, PRMP 13 CrTot ChromiumtotalAlkaline 8024 Hypobromite Oxidation Method, PRMP15 NH3S NH3Sal Ammonia Salicylate Method, 8155 PRMP 64...
