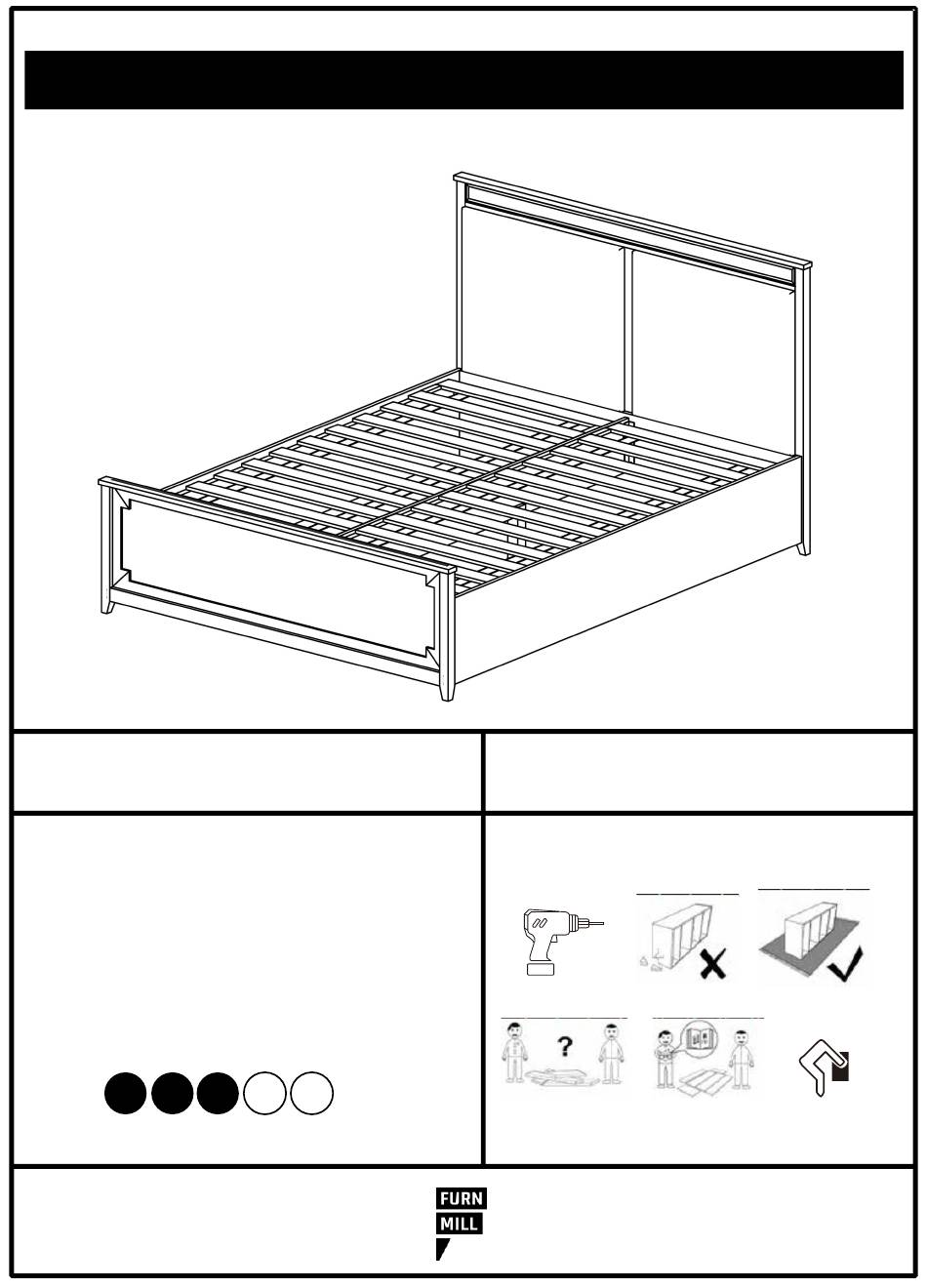

ASSEMBLY INSTRUCTION
PRODUCT CODE: HOBED00164
Barrow rattan bed without storage
ASSEMBLY RATING
Requirement for Assembly
The Assembly Rating is a 5-point
system that shows the degree of effort
needed in assembling a specific
product (with 1 being easy and 5 being
difficult).
For most products, two
persons are recommended.
EASY
DIFFICULT
2 PERSONS RECOMMENDED
1/6
Advertisement
Related Manuals for Furn Mill HOBED00164
Summary of Contents for Furn Mill HOBED00164
- Page 1 ASSEMBLY INSTRUCTION PRODUCT CODE: HOBED00164 Barrow rattan bed without storage ASSEMBLY RATING Requirement for Assembly The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
-
Page 2: Hardware Detail

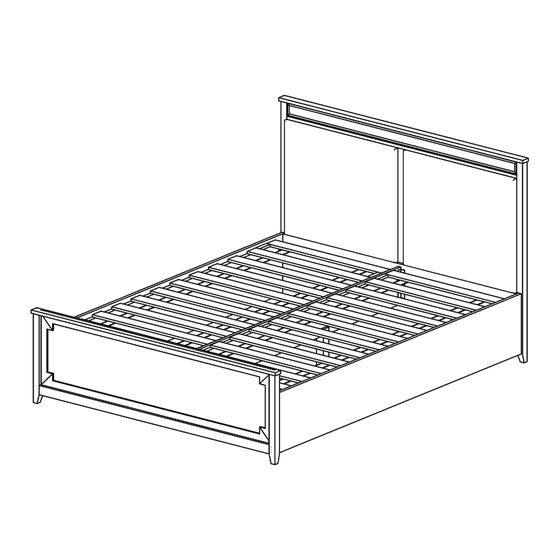

ASSEMBLED PRODUCT HARDWARE DETAIL HARDWARE QTY. 32 nos Screw 25 mm 44 nos Screw 16 mm 4 nos Metal L-angle 250 mm 2 nos Metal L-angle 110 mm... - Page 3 STEP01 Fix the Part -A(Headboard),Part-B(Sideboard),Part-E(Footboard) using L-angle with the help of Screw 16mm at position A1,A2,A3 and A4 as shown in fig. STEP02 Now fix Part-C(Middle panel) and Part-D(Leg) with screw of 25 mm at position B1 and B2 as shown in fig.
- Page 4 STEP03 Now fix Part-C(Middle panel) with Part-A(Headboard) and Part-E(Footboard) using metal L-angle with screws 16 mm at position C1 and C2 respectively as shown in fig. STEP04 Now place Part-F(LVL Slates) into last assembled part as shown in fig.
- Page 5 STEP05 NOTE:-First and last strip will fixed by two screws and remaining will fixed by single screws each at centre. Now fix Lvl slates with last assemble part using screws of 25 mm at 1st ,3rd,6th,9th STEP06 and 12th strip as shown in fig. Your bed is ready to use.
-
Page 6: Care Instructions
Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
