Furn Mill JACK HOBES00057 Assembly Instruction Manual

Storage table

ASSEMBLY INSTRUCTION

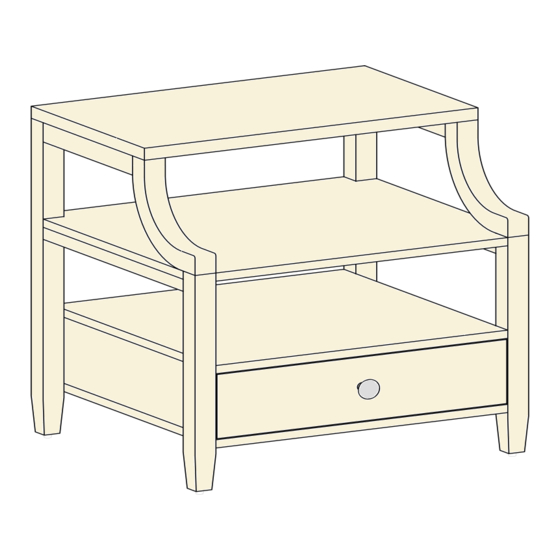

JACK STORAGE TABLE

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

PRODUCT CODE: HOBES00057

Requirement for Assembly

2 PERSONS RECOMMENDED

1/6

Table of Contents

Do you have a question about the JACK HOBES00057 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION JACK STORAGE TABLE PRODUCT CODE: HOBES00057 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult). For most products, two persons are recommended.
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. Allen key no.5 Allen bolt M8x50mm Allen bolt M8x35mm...
Page 3 STEP 1 STEP 2 Now fix Part-B and Part-A using allen bolt of 35 Flip the Part-B as shown in fig. mm with the help of allen key as shown in fig. STEP 4 STEP 3 Placed the PART-B, PART-C,PART-D and PART-G on the ground as shown. Now fix these with maxi connector at position A1,A2,A3, A4,A5 and A6 as shown in Fig.
Page 4 STEP 5 Flip the last assembled part and fix the PART-D with last assembled part by using allen bolt of 50mm with help of allen key as shown in Fig.
Page 5 STEP 6 Insert Part-E (Drawer) as shown in Fig. Your table is ready.
Page 6 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
