ASSEMBLY INSTRUCTION

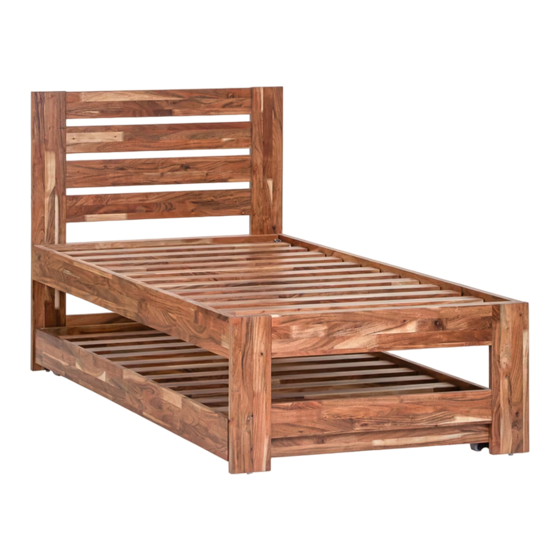

BOSTON SLIDING BED

PRODUCT CODE: HOBED00030

BOSTON SINGLE BED

Requirement for Assembly

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

2 PERSONS RECOMMENDED

1/1

Table of Contents

Do you have a question about the BOSTON SLIDING BED and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION BOSTON SLIDING BED PRODUCT CODE: HOBED00030 BOSTON SINGLE BED Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. (BED CLAMP 100mm) (SCREW3.5X16mm) (SCREW-35mm)
Page 3 STEP 01 Fix the Part -A(Headboard),Part-B(FootBoard)&Part-C(Sides) with Bed clamp using screws (16mm) with the help of Screw driver at Defined Position A1,A2,A3 & A4 As shown in Fig.
Page 4 STEP 02 Place the Part-D (Strips Panel) on last assembled part before wooden block as shown in the fig.
Page 5 STEP 03 Fix the Part –E & Part-F with Bed clamp using screws (16mm) with the help of Screw driver at Defined Position B1,B2,B3 & B4 As shown in Fig.
Page 6 STEP 04 Fix the Part-H with last assembled part using Screws(35mm) with the help of screw driver at Defined Position C1,C2,C3 & C4 As shown in Fig. STEP 05 Place the Part-G (Strips Panel) on last assembled part before wooden block as shown in the fig.
Page 7 Your Boston Single Bed is Ready...
Page 8 We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase. Your satisfaction is the greatest recognition we could have.
