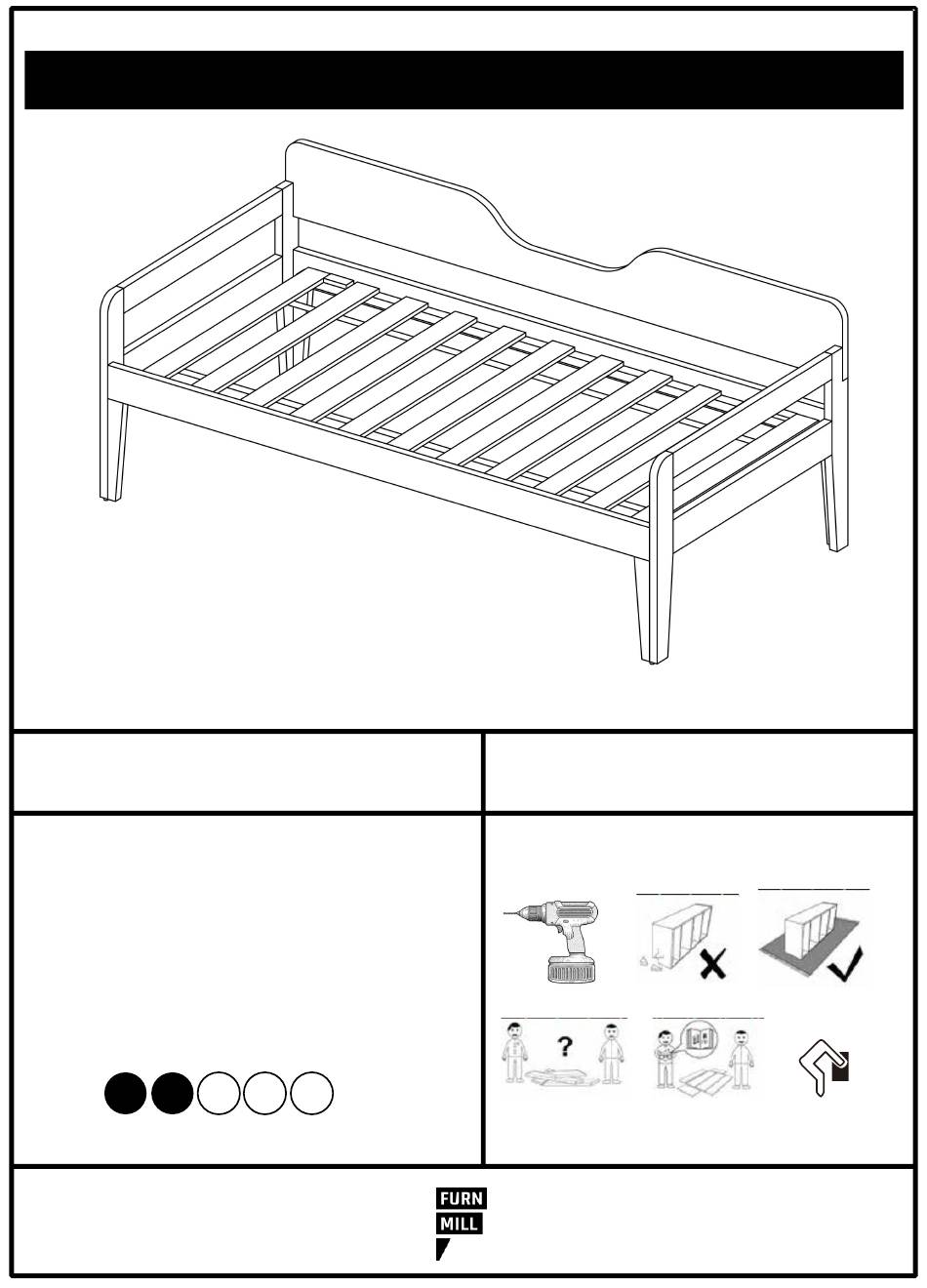

ASSEMBLY INSTRUCTION

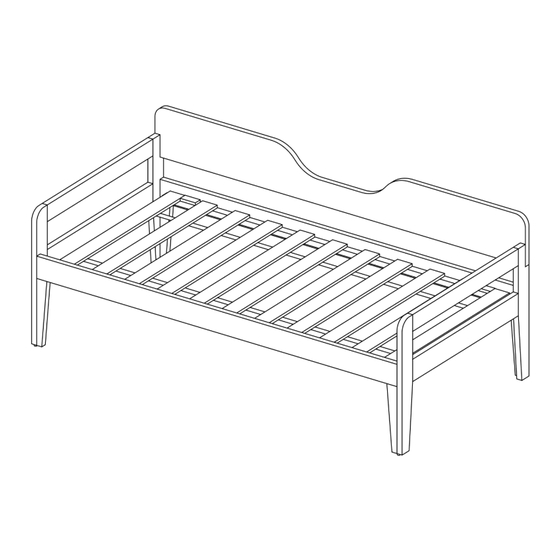

GREECE DAY BED

PRODUCT CODE: HOBED00032

Requirement for Assembly

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

2 PERSONS RECOMMENDED

1/5

Table of Contents

Do you have a question about the HOBED00032 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION GREECE DAY BED PRODUCT CODE: HOBED00032 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. 4pcs ALLEN BOLT (M8x35) 1pcs ALLEN KEY (No.5) 08pcs SCREWS 35x4 32pcs SCREWS 3.5x16 4pcs BED CLAMP- 100mm...
Page 3 STEP 01 Fix the PART-A and PART-B with BED CLAMP of 100mm using screws of 16mm with the help of screw driver at position A1,A2,A3 & A4 as shown in Fig. STEP 02 Fix the PART-C and last assembled part with allen bolt using allen key at position B1 & B2 as shown in Fig.
Page 4 STEP 03 Place the Part-D (strips panel) on last assembled part and fix with screws as shown in fig. STEP 04 Place the mattress & your Greece Day bed is ready.
Page 5 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
