ASSEMBLY INSTRUCTION

PRODUCT CODE: HOBED00029

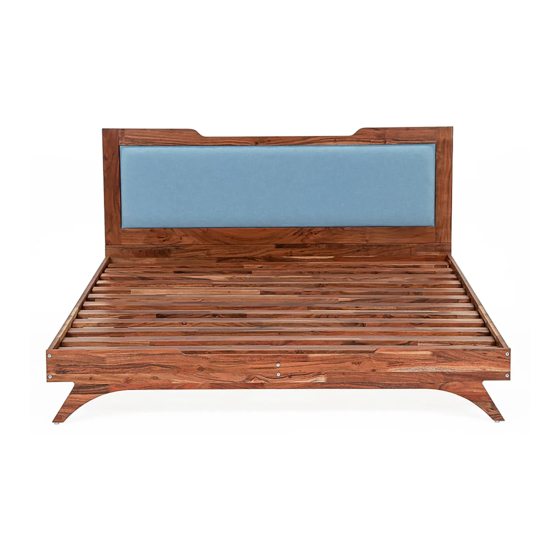

NIRVANA BED

Requirement for Assembly

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

2 PERSONS RECOMMENDED

1/6

Table of Contents

Do you have a question about the HOBED00029 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION PRODUCT CODE: HOBED00029 NIRVANA BED Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult). For most products, two persons are recommended.
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. Barrel nut 6x13mm 12 nos Allen bolt 6x70mm 12 nos Screw 3.5x25 32 nos Allen Key No.4 1 nos...
Page 3 STEP01 Fix the Part -A(Headboard),Part-B(Sides)&Part-E(FootBoard) with barrel nut and allen bolt with the help of allen key at defined position D1,D2,D3,& D4 as shown in fig.
Page 4 STEP02 Fix the Part-C (middle part) with barrel nut and allen bolt at position D5 & D6 similar as STEP01 as shown in fig. Fix the Part-D(Leg) with screw of 25 mm at position S1&S2 as shown in Fig.
Page 5 STEP03 Note:-1st and last slates have double screw and remaining slates have single screw Place the Part-F(Strips Panel) on last assembled Part and fix with screws of 25mm as shown in the Fig.(Top LVL slates which is fixed by niwar to each other will fixed by screws at 1st, 3rd, 6th, 9th and 12th slate on batten.) STEP04 Your bed is ready.
Page 6 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
