ASSEMBLY INSTRUCTION
NIRVANA BED WITH STORAGE(King size
and Queen size)
ASSEMBLY RATING
The Assembly Rating is a 5-point
system that shows the degree of effort
needed in assembling a specific
product (with 1 being easy and 5 being
difficult).
For most products, two
persons are recommended.
EASY
DIFFICULT
PRODUCT CODE: HOBED00122
Requirement for Assembly
2 PERSONS RECOMMENDED
HOBED00123
1/10
Advertisement
Related Manuals for Furn Mill HOBED00122
Summary of Contents for Furn Mill HOBED00122
- Page 1 ASSEMBLY INSTRUCTION NIRVANA BED WITH STORAGE(King size PRODUCT CODE: HOBED00122 and Queen size) HOBED00123 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
-
Page 2: Hardware Detail
HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. 8 nos L-patti 40x40mm Screw 16 mm 48 nos 2/10... - Page 3 STEP01 Fix the Part -A(Headboard) and Part-C(Sideboard) on using L-plate with the help of Screw 16mm as shown in fig. STEP02 Fix the Part-H (Footboard) and last assembled part with L-plate and screws as shown in fig. 3/10...
- Page 4 STEP03 Now place Part-E (Battens) at bottom U-block as shown in Fig. STEP04 Now Place Part-G(Bottom Panel) into last assembled part as shown in fig. 4/10...
- Page 5 STEP05 Note: You can remove Solid block support after this step. Now place battens in U-block of Part-D(Middle panel) and fix Part -D with Part- A (Headboard) and Part-H(Footboard) by L-patti and screws 16mm at position A1 and A2 respectively as shown in fig. STEP06 Support Block for strip...
- Page 6 STEP07 Now place Part-G (Bottom Panel) with last assembled part as shown in Fig. STEP08 Note: You can remove Solid block support after this step. Now place battens in U-block of Part-C(Side panel) and fix Part -C with Part-A (Headboard) and Part-H(Footboard) by L-plate and screws 16mm at position B1 and B2 respectively as shown in fig.
- Page 7 STEP09 Fix the Part -F(Middle partition) with last assembled part using l-patti with the help of screw at defined position C1 and C2 as shown in Fig. 7/10...
- Page 8 STEP10 Now fix Part-E (Battens) at upper U-block as shown in Fig. STEP11 Strip Now place Part-B (Top strips) and Part-I(Top panel) at last assembled as shown in Fig. 8/10...

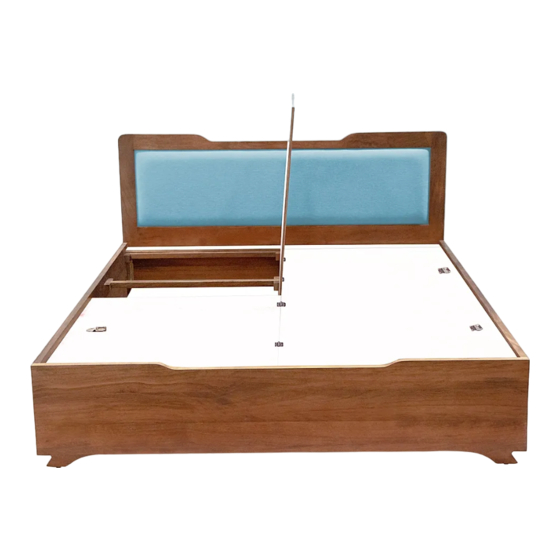

- Page 9 STEP12 Now rotate or open Part-I (Seat panel) towards left as shown in Fig. STEP11 Your Bed is ready. 9/10...
-
Page 10: Care Instructions
Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
