ASSEMBLY INSTRUCTION
PRODUCT CODE: HOBED00163

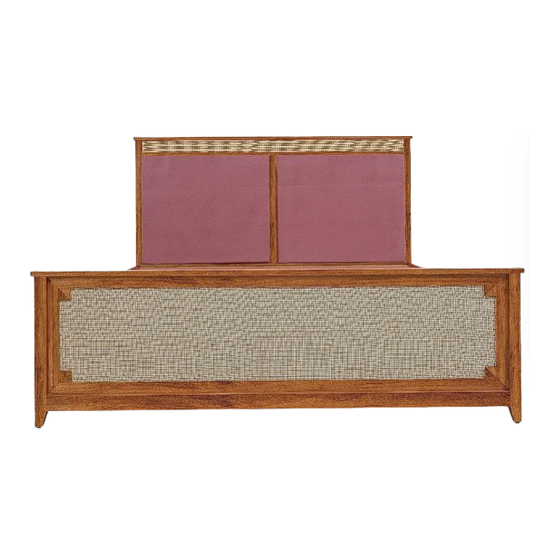

Barrow rattan bed with storage
ASSEMBLY RATING
Requirement for Assembly
The Assembly Rating is a 5-point
system that shows the degree of effort
needed in assembling a specific
product (with 1 being easy and 5 being
difficult).
For most products, two
persons are recommended.
EASY
DIFFICULT
2 PERSONS RECOMMENDED
1/8
Advertisement
Related Manuals for Furn Mill Barrow HOBED00163
Summary of Contents for Furn Mill Barrow HOBED00163
- Page 1 ASSEMBLY INSTRUCTION PRODUCT CODE: HOBED00163 Barrow rattan bed with storage ASSEMBLY RATING Requirement for Assembly The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
-
Page 2: Hardware Detail
ASSEMBLED PRODUCT HARDWARE DETAIL HARDWARE QTY. 8 nos L-patti 40x40mm Screw 16 mm 64 nos 4 nos L-angle 250mm... - Page 3 STEP01 Fix the Part -A(Headboard),Part-B(Sideboard),Part-F(Footboard) using L- angle with the help of Screw 16mm as shown in fig. STEP02 Now place Part-D(Bottom Panel) into last assembled part as shown in fig.
- Page 4 STEP03 Now fix Part-C(Middle panel) with Part-A (Headboard) and Part-F(Footboard) STEP04 by L-patti and screws 16mm at position B1 and B2 respectively as shown in fig. Now place Part-D(Bottom Panel) into last assembled part as shown in fig.
- Page 5 STEP05 Now fix Part -B(Side panel) with Part-A (Headboard) and Part-F(Footboard) by L-angle and screws 16mm at position B1 and B2 respectively as shown in fig. STEP06 Now fix Part-F(middle partition) using L-patti and screws at position D1 and D2 as shown in fig.
- Page 6 STEP07 Now place Part-G (Top panel) and Part-H(Top strip) at last assembled as shown in Fig. STEP08 Now rotate or open Part-H(Top panel) towards left as shown in Fig.
- Page 7 STEP12 Your Bed is ready.
-
Page 8: Care Instructions
Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
