Summary of Contents for Robam CXW-260-56H1S

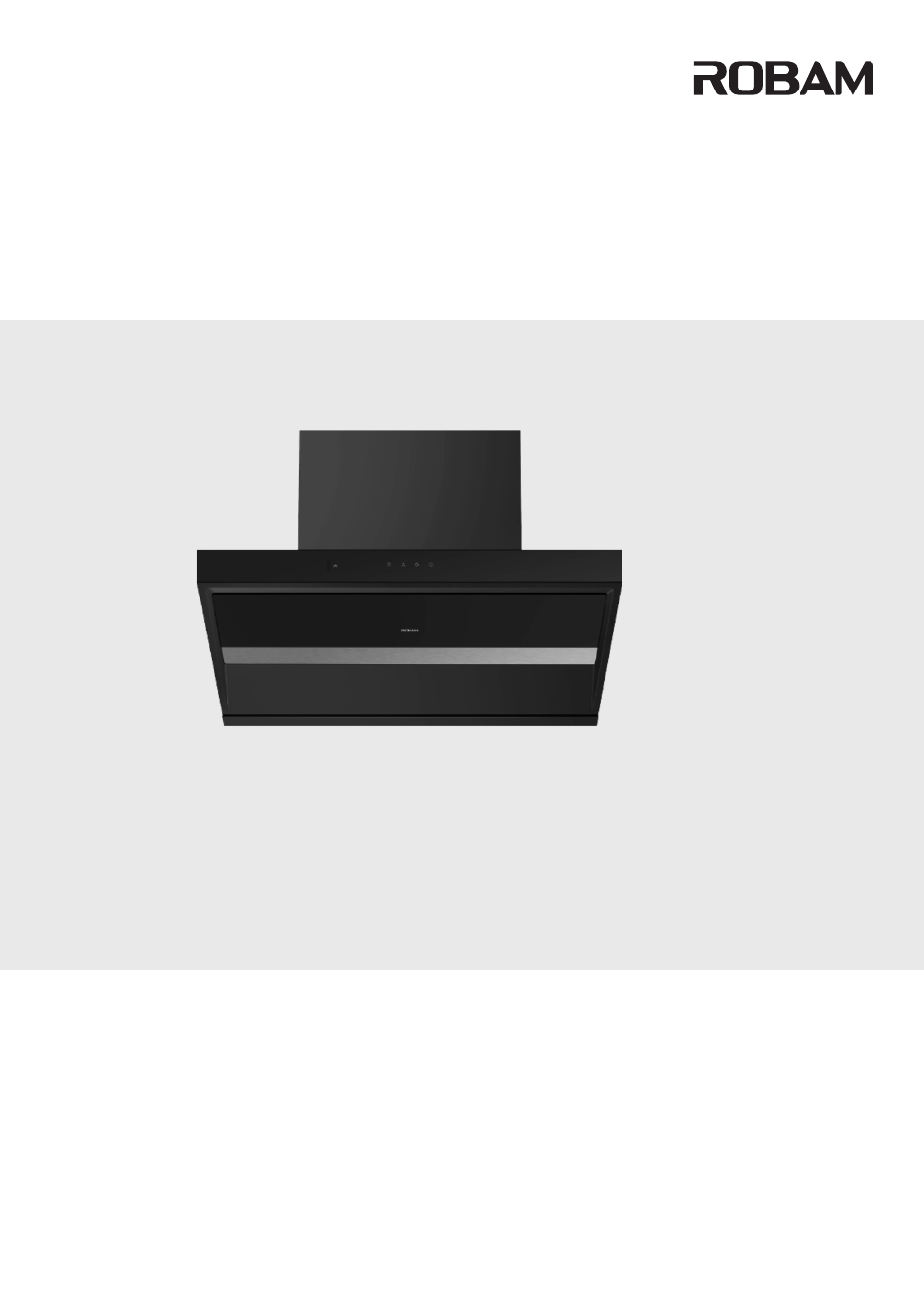

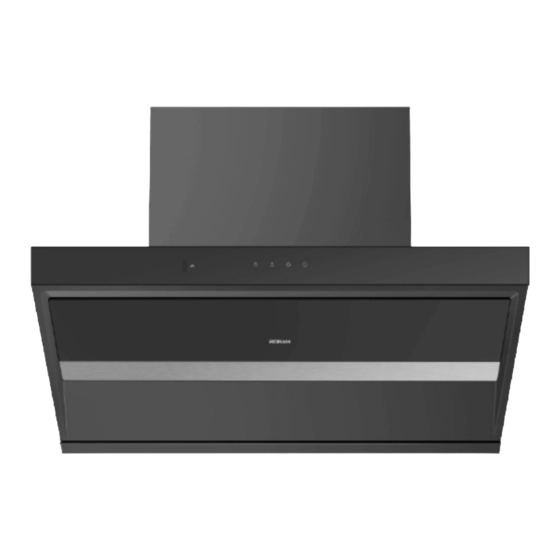

- Page 1 User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CXW-260-56H1S Range Hood...
-
Page 2: Table Of Contents
CONTENTS Safety Precaution........................1 Important Information......................4 Product Description .........................5 Packing List..........................5 Installation..........................6 User Manual..........................9 Maintenance.........................10 Removal of Components.......................10 Circuit Diagram........................13 Troubleshooting of General faults..................13... -
Page 3: Safety Precaution
Touch Disassembly Execution Earthed Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger t allow children or weakling to use range hood separately, or it may cause electric shock or other accident. - Page 4 Range Hood Danger Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
- Page 5 Range Hood Warning The range hood and electric circuit must be installed by skilled and trained personnel with required qualification. When installation, the related regulation, standard or instruction on fire must be complied. It may cause Strict danger because of improper installation, for example, electric shock, drop or Execution fire accident.
-
Page 6: Important Information
Range Hood Notice The temperature for range hood working can’t exceed 40℃. Strict Execution Because the installation is difficult and hood is heavy, the installation Strict shall be executed by professional person based on manul. Execution Don't break electric wire or other invisible equipment when cutting Strict something or drilling holes on ceiling. -
Page 7: Product Description
Range Hood Product Description Technical Data 46dB(A) Model CXW-260-56H1S High Noise 40dB(A) Rated Voltage 220-240V~ Rated Frequency Rated Power Input 50Hz 262W 580Pa Rated Main Motor Power Input Nominal Wind Pressure 260W Lamp Power(max) Max static pressure 1050Pa × ×... -
Page 8: Installation
Range Hood Installation If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air duct will influence the fume suction effect, too. Preparation for installation Notice ● Installation and circuit setting must be done by experienced professionals. Only a professionally trained person with an installation qualification can install the hood. - Page 9 Range Hood Installation Note: All data in synoptic diagram below are recommended dimensions, and units are expressed in mm. ● Determine the location: Cabinet pre-drilling dimensions as shown in Figure 1, in order to ensure a good operating experience, it is recommended that the top of the fume hood is flush with the bottom of the suspended cabinets. Ceiling drilling dimensions as shown in Figure 2, it is recommended to install the socket position above the ceiling.
- Page 10 Range Hood Figure 3 Expansion Tube with Screws Hitching foot ●Install hood body First, the check valve as shown in Figure 5 fixed, and then in accordance with Figure 3 will be the rear of the body of the hanging hole aligned with the hook of the hanging foot pressed and slid into, shaking the body by hand to see if hung firmly. Once the body is in place, use 4.2 x 80mm screws to screw into the holes at 38mm, with the end of the screws spaced about 20mm from the wall.
-
Page 11: User Manual
Range Hood The exhaust wall hole diameter shall be close to that of the exhaust pipe, which shall not be too small. Otherwise, it will cause poor exhaust efficiency, more noises and lower volume, etc. The connection between the pipe and the hole or the public flue must be sealed tightly to ensurethat, the pipe and the check valve or public flue is connected securely. -
Page 12: Maintenance
Range Hood Under the state of shutdown, simultaneously long press the low/mid key + lighting key to enter the cleaning lock state, the low/mid and lighting key icon will be long lighted, the air guide and lighting will be opened automatically, and the fan will be turned off. At this time, except for the following keys, the other keys are invalid. - Page 13 Range Hood Lamp image Lamp information Lamp Type Rectangular LED Max Power Voltage 12VDC see the lamp image Dimension Romoval of switch ●Use a screwdriver or flat metal object to insert into the gap between the fume hood and the glass panel, corresponding to the snap position slightly force outward, remove the glass panel.
- Page 14 Range Hood Romoval of the hole range hood 1. Close the air guide and unplug the power supply; 2. Unscrew the screws on the left and right cover panels, remove the left and right cover panels, then unscrew the screws on the back panel and rear panel of the enclosure, remove the back panel and rear panel of the enclosure, and then unscrew the 6 screws on the air outlet of the air duct and remove the air duct;...
-
Page 15: Circuit Diagram
Range Hood Circuit Diagram Terminal box blue blue white W red V Control circuit black U brown blue 220V-240~ Yellow/Green E Troubleshooting of General faults Serial Solution Fault Cause number No response after pressing any icon The power plug is not connected (e.g. - Page 16 Edition: A/0 Publication Date: October, 5, 2023...
