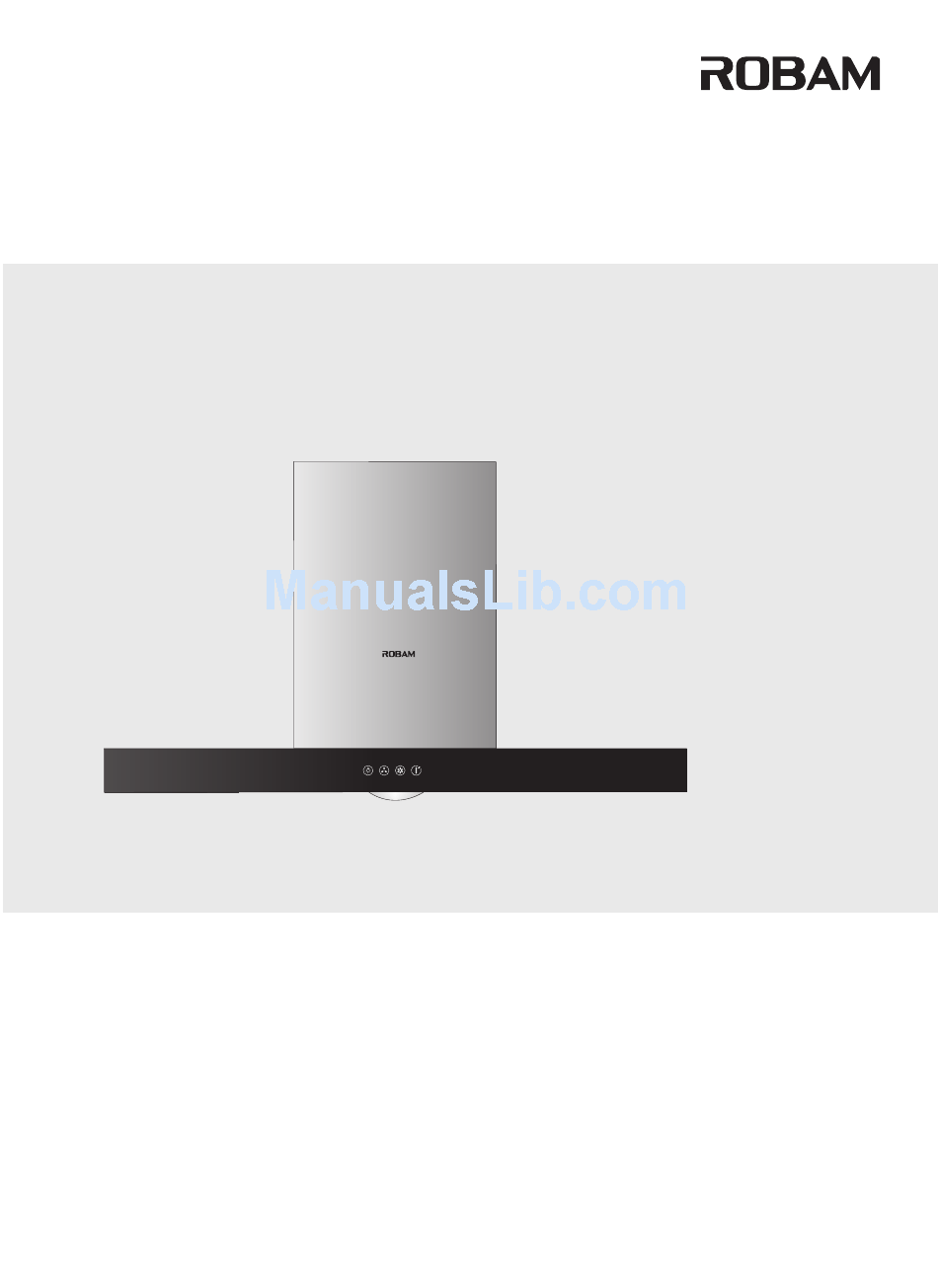

- Page 1 Operation Manual A8 06 CXW-200-A806 Range Hood...
-
Page 2: Table Of Contents
CONTENTS 1.Important Information......1 2.Product Overview.......1 3.Installation..........2 4.Use Instruction........6 5.Maintenance and Services....7 6.Circuit Diagram........9 7.General Troubleshooting....9... -
Page 3: Important Information
吸油烟机 Range Hood Dear users: Thank for your buying our range hood. Please accept our best regards. Please read this operation manual carefully before installation and operation. Important Information New Package of Range Hood Please settle those packages carefully in order to protect environment. Don’t allow children to play plastic film and package, it may cause asphyxia. -
Page 4: Installation
机 烟 油 吸 Range Hood Size & Dimension Picture 2 CXW-200-8312 A8 06 Note: The length is only for reference(mm). Installation Warning 1.The range hood is prohibited from exhausting fume into hot flue ,which is used for exhausting gas fuel or other fuel fume. - Page 5 吸油烟机 Range Hood Installation Precautions Picture 3 Picture 4 8305 8305 Warning:The height from hood bottom to the cooktop should be not less than 650mm.(see installation in Don't install the range hood too high and details).Don't allow to contact fire with range hood keep it free from external airflow to prevent reduced the effect of fume removal directly.
- Page 6 机 烟 油 吸 Range Hood Installation 1、Location:Reference dimension for mounting of removable baffle is 430(mm),but subject to adjustment according to actual situations. The installation hole(picture 10-1) shall be centered vertically with the hood body and kept horizontally. The specification drawing for drilling on the ceiling see as picture 10-2 . Operator shall install range hood upright the gas hob with recommended lowest height between hood bottom and cooktop is 650mm (if maximum installation distance is specified in the instruction of installation, this shall be taken into consideration;...
- Page 7 吸油烟机 Range Hood 6.Installation of aluminum foil's air duct: Installation of without check valve:Firstly,insert the aluminum foil's air duct with fixed bar between the inner and external rings of check valve vent, fasten it by ST3x10 tapping screw. Then fasten another side of aluminum foil's air duct with adhesive tap outside of room.When the wall's hole is bigger than air duct, the air duct can be pulled out of room directly;when the wall's pipe is smaller than air duct, there are four specifications for the interface of air duct, such as 140mm,150mm,160mm and 170mm.The operator can select reasonable specification according to wall's hole.
-
Page 8: Use Instruction
机 烟 油 吸 Range Hood Use Instruction Control Panel Picture 12 Picture 13 Picture 14 High Press the power button, the light of "power "button turn on,press "high Speed" button,the motor works with high speed.if press the "low speed" button,it will When plug is connected well ,buzzer sounds three work in the normal speed states. -
Page 9: Maintenance And Services
吸油烟机 Range Hood Maintenance and Services If not wash in the way specified methods in the instruction, range hood may be liable of fire. Range hood shall be cleaned at regular intervals depending on the environmental conditions to keep clean and good effect,it's helpful to extend service life. - Page 10 机 烟 油 吸 Range Hood Mounting and dismounting Picture 25 Dismounting Steps: 1.Pull out power plugs; 2.Screw off 4 screws behind the decorative tube and incline the decorative tube forward to certain angle and pull it out by force with hands; 3.Take out draw tube from the decorative tube;...
-
Page 11: Circuit Diagram
吸油烟机 Range Hood Warning There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels 。 - Do not flambé under the range hood. - Regulations concerning the discharge of air have to be fulfilled. - This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
