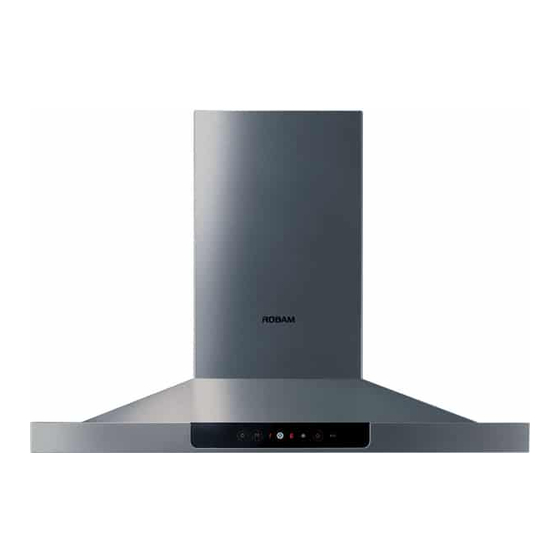

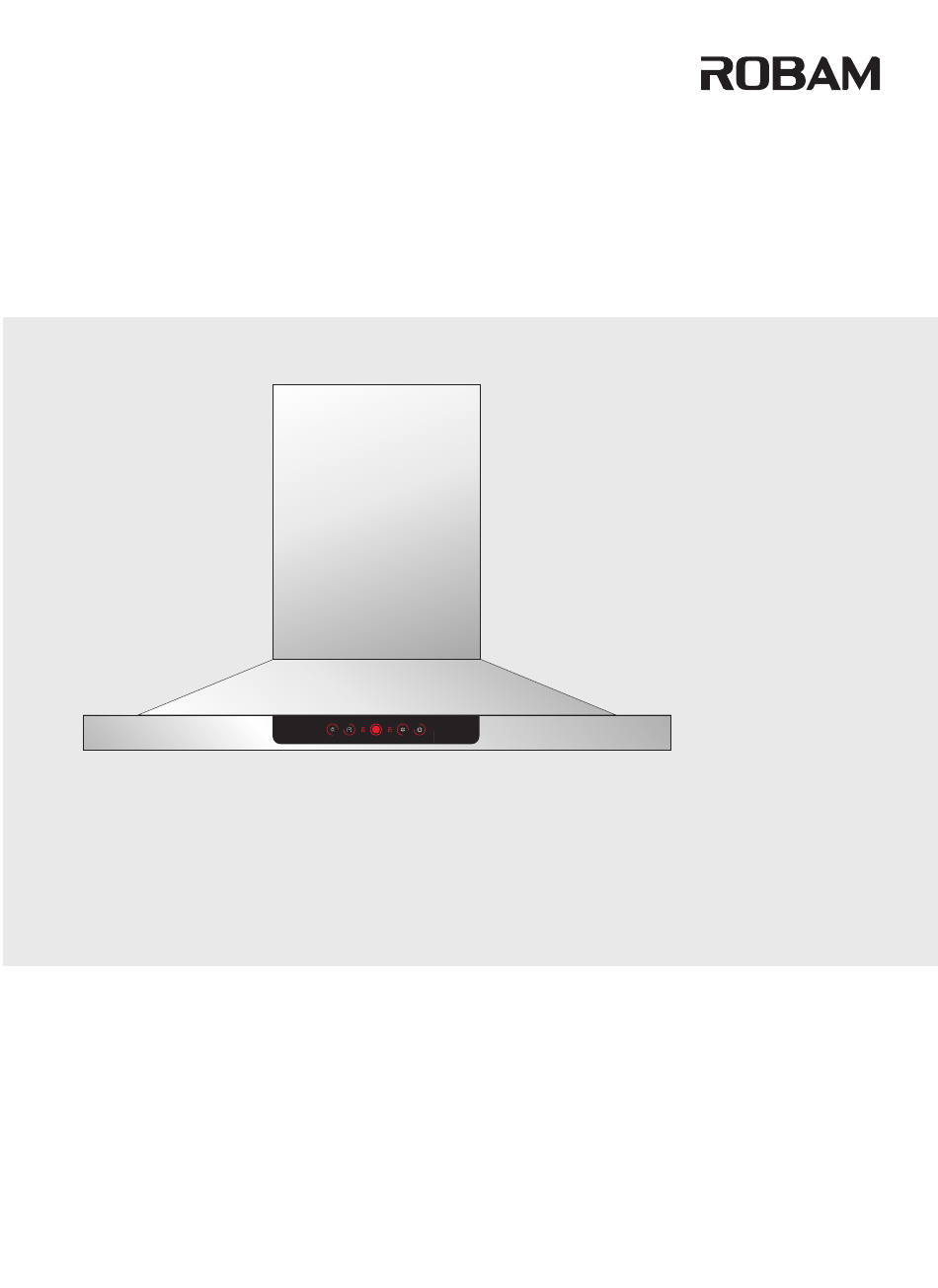

- Page 1 Operation Manual A822 CXW-200-A822 Range Hood...
-
Page 2: Table Of Contents
CONTENTS 1.Important Information...........1 2.Product Overview..........1 3.Installation............2 4.Use Instruction............5 5.Maintenance and Services.........7 6.Circuit Diagram............9 7.General Troubleshooting........9... -
Page 3: Important Information
Children and disability are not allowed to use range hood independently in order to avoid accident. Product Overview Technical Datas Noise ≤ Model CXW-200-A822 2 00 W 220-240V~ 50Hz Power Supply Rated Main Motor Input Power ≤2W Total Pressure Efficiency ≥22%... -
Page 4: Installation
Range Hood Size & Dimension Picture 2 CXW-200-8302 A822 Note:The lenghth is only for reference，in the brackets of the size is high of draw tube .（size：mm） Installation Warning 1.The range hood is prohibited from exhausting fume into hot flue ,which is used for exhausting gas fuel or other fuel fume. - Page 5 Range Hood Installation Precautions Picture 4 Picture 3 CXW-200-8302 CXW-200-8302 Warning:Don't allow to contact fire with range hood Don't install the range hood too high and directly. Forbid gas stove from getting fire to prevent keep it free from external airflow to prevent damage of range hood or happening of accident.
- Page 6 Range Hood Installation 、 Location:Reference dimension for mounting of removable baffle is 430(mm),but subject to adjustment according to actual situations. The installation hole(picture 10) shall be centered vertically with the hood body and kept horizontally. Operator shall install range hood upright the gas hob with recommended lowest height between hood bottom and cooktop is 650mm (if maximum installation distance is specified in the instruction of installation, this shall be taken into consideration;...
-
Page 7: Use Instruction
Range Hood 6. Install aluminum foil’s air duct: 1) Drill hole position for aluminum foil (for public flue, don’t need to drill holes) a. Aluminum foil and cooktop faces to window: disassemble one side glass, and install one plywood with holes, or open holes on the glass directly. - Page 8 Range Hood Picture 13 Picture 14 Turn on the power plug, a buzzer rang 3 sound prompted Press the power button, the outer circle give red lights, the to install qualified, into standby mode. products are in boot state, ready, waiting for work instructions. Picture 15 A822 Display "6"...
-
Page 9: Maintenance And Services
Range Hood Maintenance and Services If not wash in the way specified methods in the instruction, range hood may be liable of fire. Range hood shall be cleaned at regular intervals depending on the environmental conditions to keep clean good effect,it's helpful to extend service life Our suggestion: To ensure smooth fume removal,oil guide mesh should be cleaned every month.Impeller should... - Page 10 Range Hood Mounting and dismounting Picture 26 Dismounting Steps: 1.Pull out power plugs; 2.Screw off 4 screws behind the decorative tube and incline the decorative tube forward to certain angle and pull it out by force with hands; 3.Take out draw tube from the decorative tube; 4.Remove the cover plate after screwing off the fastening screws by Philips screwdriver;...
-
Page 11: Circuit Diagram
Range Hood Warning There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels . - Do not flambe under the range hood. - Regulations concerning the discharge of air have to be fulfilled. - This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 12 Edition: A/1...
