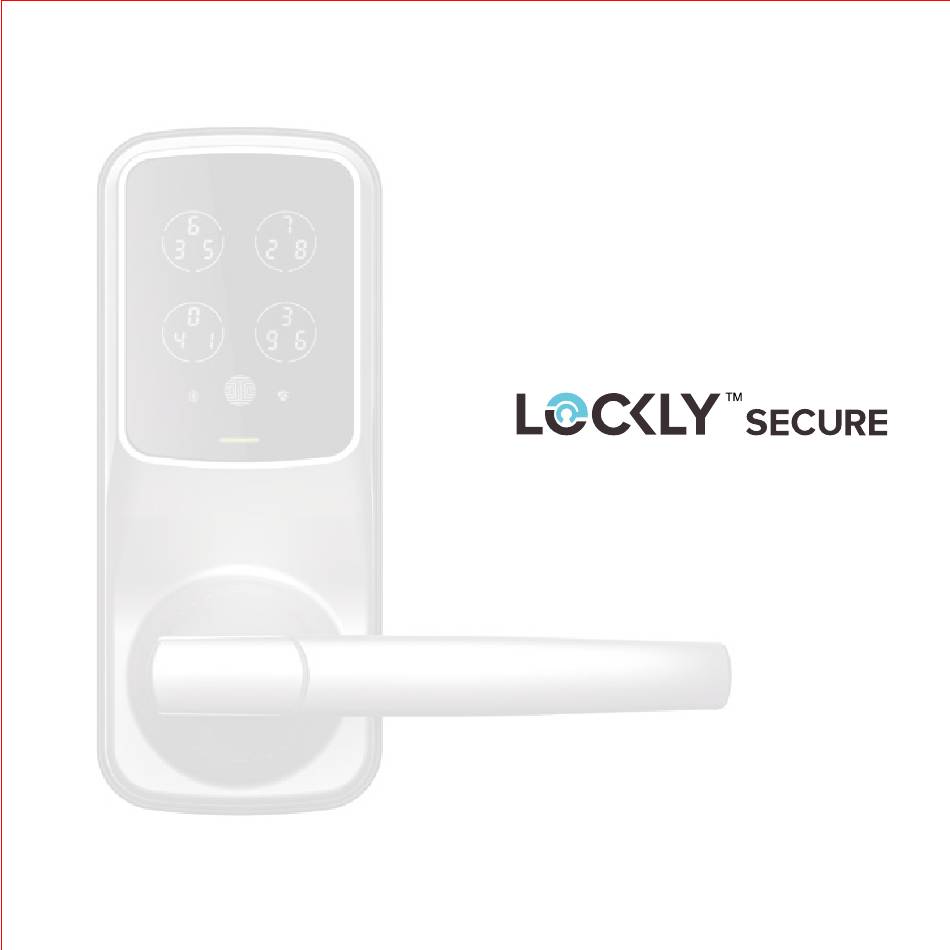

- Page 1 LATCH EDITION SECURE PLUS | SECURE PRO USER MANUAL...
- Page 2 Adding an Access Code Section 8 - Safety Precautions Deleting an Access Code Safety Precautions Checking an Access Code Adding a Fingerprint Fingerprint Scanning Directions Fingerprint Tips & Troubleshooting Deleting Stored Fingerprints For additional support, visit http://lockly.com/help or email help@Lockly.com TABLE OF CONTENTS...
- Page 3 The offline access code can allow owners to issue access codes, set the allowed access duration, all without Lockly™ ever connecting to the internet, so in case of power outage, you can still magically and remotely issue Access Codes without any connection to the web.
- Page 4 2.1 Product Overview - Outside Touchscreen Keypad Buttons Bluetooth icon Lock Status icon Power Status OK Button Bluetooth light Handle Key Hole Cover Key Hole 9V Battery Backup Socket SECTION 2.1...
- Page 5 2.2 Product Overview - Inside Battery Compartment 4 x AA Alkaline Batteries(Included) Battery Compartment Cover Reset Button Program Button Low Battery Indicator Keypad Display Switch Inside Handle SECTION 2.2...
- Page 6 Secure Plus and Secure Pro Only) and also how to configure your OAC(Offline Access Code). For any questions you can always visit http://lockly.com/help for assistance. Don’t forget that Lockly™ Secure works best with our iOS and Android app. Please download the app by visiting the link below. Scan or visit Lockly.com/app...
- Page 7 2.4 Factory Reset In order to restore the Lockly™ Secure to factory default settings, you must have your “Initial Code” available. The Initial Code can be found on the VIP Card that came with your smart lock. After you have the Initial Code ready, push the reset button on the back panel of the Lockly™...
- Page 8 No settings will be changed and all Access Codes will still be stored within Lockly™. Press and release the reboot button when you want to reboot the lock. Your Lockly™ will beep once after reboot. Only reboot when necessary. To reboot, find the reboot button located on the bottom of the exterior side of Lockly™...
- Page 9 2.7 Low Battery When the battery is in seriously low condition, Lockly™ Secure will make continuous beeping sounds in addition to the flashing low battery icon on the touch screen. You should replace batteries immediately to avoid your smart lock from shutting down.
- Page 10 2.8 Changing The Battery Under normal use, the Lockly™ Secure’s battery will last up to a year. Please check battery levels regularly and change your batteries when the low battery notification is issued. For best practice, always use new batteries.
- Page 11 NOTICE The Default Access Code is Your new Lockly™ Access Code can be any combination of 6 to 8 digits. Once a new Access Code is entered, the Default Access Code of 123456 would be deleted. A Maximum of 8 sets of Access Codes can be stored for use.
- Page 12 Add Access Code Delete Access Code View Access Code After entering Programming Mode, you should see the screen as displayed to the right on your Lockly™ keypad. Follow the following steps to add, delete, or check your Access Codes. SECTION 3.2...
- Page 13 3.3 Adding an Access Code While in Programming Mode, select “1AD” to add an Access Code. If you are not in Programming Mode, please see Section 3.2 to enter Programming Mode. After pressing “1AD” press “Pd” to add an Access Code.
- Page 14 3.3 Adding an Access Code (Continued) If you have successfully entered your new Access Code twice, you will see the new code displayed here. In this example, we chose 654321. Press to Confirm or to cancel. To exit or cancel, you can always press If the two (2) Access Codes you entered does not match, an error message will appear on the screen (As shown to the left).
- Page 15 3.4 Deleting an Access Code While in Programming Mode, select “2DE” to delete an Access Code. If you are not in Programming Mode, please see Section 3.2 to enter Programming Mode. After pressing “2DE” press “Pd” to delete an Access Code.
- Page 16 3.4 Deleting an Access Code (Continued) Once you have selected the Access Code you want to delete, Lockly™ will ask you to confirm deletion by showing you the Access Code you are deleting, in this example,1 3 5 7 9 0.
- Page 17 3.5 Checking the Access Codes While in Programming Mode, select “3CH” to check registered Access Codes. If you are not in Programming Mode, please see Section 3.2 to enter Programming Mode. Active Access Codes will then be displayed screen sequence from left to right, top to bottom.
- Page 18 In this section, you will learn how to register a fingerprint to your new smart lock. Finger- print registration is only available in the Lockly™ Secure Plus / Pro, and not available in Secure models. If you have Secure you may skip to Section 4.1 to learn about locking and unlocking your door with Lockly™.
- Page 19 Fingerprint. Upon pressing “FP”, you will enter Fingerprint Registration Mode and you will see a green LED ring light up on the fingerprint panel on the exterior side of Lockly™ Secure Plus / Pro. Once you’re in Fingerprint Registration Mode you will see two numbers displayed on keypad.
- Page 20 3.6 Adding a Fingerprint (Continued) Please make sure your fingers are clean from dirt and oils NOTICE before scanning your fingerprint. Make sure the sensor is also clean by taking a soft cloth and wiping the surface. Scan your finger by lightly placing your designated finger on the sensor until you hear a beep.
- Page 21 3.7 Fingerprint Scanning Directions The fingerprint sensor equipped in Lockly™ Secure Plus and Secure Pro is loaded with powerful fingerprint algorithms to extract quality features from fingers, even in poor condi- tions. Placing your finger on the sensor correctly helps consistency in fingerprint recogni- tion.
- Page 22 3.7 Fingerprint Scanning Directions (Continued) Top View Side View Correct Incorrect SECTION 3.7...
- Page 23 • If dry - moisturize or blow warm breath over finger before scanning • If dirty - wipe stains and dirt off from finger before scanning • Make sure the sensor is clean from dirt or smudges - wipe sensor with soft cloth regularly For more troubleshooting help, visit http://lockly.com/help SECTION 3.8...
- Page 24 3.9 Deleting Stored Fingerprints While in Programming Mode, select “2DE” to delete a Finger- print. If you are not in Program- ming Mode, please see Section enter Programming Mode. After pressing “2DE” to delete, press “FP” to delete a fingerprint. Your registered fingerprint...
- Page 25 4.1 Locking/Unlocking Lockly™ with Access Codes Lockly™ Secure series can be unlocked using 1 of 4 ways - via your stored Access Code, registered fingerprint (Secure Plus and Secure Pro only), smartphone with Bluetooth, or with the physical key supplied with your lock.
- Page 26 You must wait until the red LED is off to try again. For best fingerprint scanning practices, see Section 3.7. Locking OK Button To lock the Lockly™ Secure, press the OK Button anytime when the door is opened. SECTION 4.2...
- Page 27 4.3 Locking/Unlocking Lockly™ with App You must have the Lockly™ iOS or Android app installed in order to lock and unlock with the smartphone app. Please first download the app from the correct store. Scan or visit Lockly.com/app Please see the smartphone app manual to follow instructions on how to connect your app to your lock via Bluetooth and learn how to lock / unlock the door using the app.
- Page 28 4.4 Locking/Unlocking Lockly™ with Physical Key Exterior View To unlock your Lockly™ using the physical key (supplied), open the key cover on the handle by turning the cover counter clockwise 90 degrees to reveal the keyhole. Insert your key and turn clockwise or counter clockwise to lock or unlock the door.
- Page 29 After the second incorrect attempt to unlock the lock with the wrong Access Code, Lockly™ will disable the keypad for 20 minutes, displaying a “20” on the screen. After the third wrong attempt to unlock the door with the correct Access Code, the screen will be disabled for 30 minutes.
- Page 30 Option 2 - Lockly™ Bluetooth App Use the app that is synced to your Lockly™ to disable Safe Mode by unlocking the door. If you have not downloaded the app to use with your smart lock, you won’t be able to use this option to disable Safe Mode.
- Page 31 To use the OAC feature, make sure you download the Lockly™ app for iOS or Android first, and sync your smart lock to your mobile device.
- Page 32 9V Backup Access When your Lockly™ Secure is out of power, you can temporarily activate the key pad by using a 9V battery against the bottom of the exterior side of the smart lock. Please see Section 2.6 for more info.
- Page 33 7.1 Cleaning Making sure your Lockly™ is clean is best practice to ensure optimal product use. Follow the DOs and DON’Ts below. DON’T • Don’t use abrasives, high alkaline • Rinse the touchscreen with warm cleaners, or gasoline to clean your water prior to cleaning.
- Page 34 8.1 Safety Precautions Please read all instructions carefully. Remind all Lockly™ users of the safety precautions. Read the following instructions for your own safety Do not attempt to disassemble the smart lock by yourself. It can cause product damage, void warranty, and cause injuries.
