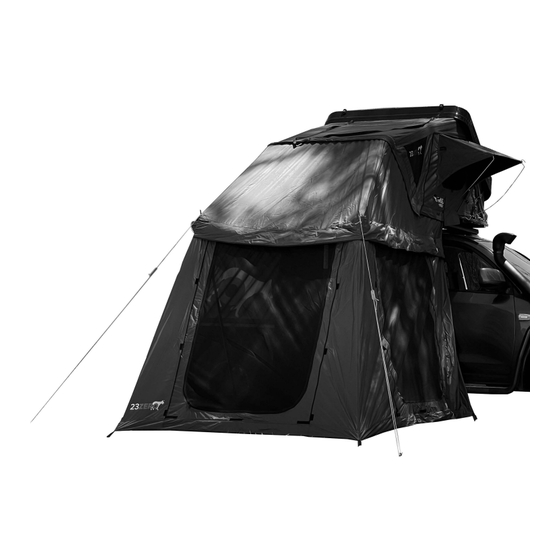

- Page 1 YOWIE CHANGE ROOM ANNEX USER MANUAL...
-
Page 2: Package Contents
Ensure nobody is inside tent, retract ladder and retain with ladder strap - Fig.1 • Identify Kedar ropes & attaching zips on Annex and layout under Yowie tent - Fig 2 NOTE: On First use PVC floor is not attached to annex. - Page 3 Fig.3 Fig.4 • Slide Kedar rope all the way through into the rear Yowie rope track - Fig 5,6 • Locate both left and right zips under the tent skirt. Engage the zip pull start on the change room annex to zip on tent skirt and zip through - Fig 7 •...
- Page 4 YOWIE USER MANUAL Fig.9 IMPORTANT:: Depending on vehicle height, roof top tent ladder may be required to complete the following step. Set up ladder as per roof top tent instructions before climbing. • Continue to zip along and over up the tent canopy whilst securing the annex to relive tension as you go - Fig 10,11,12 Fig.11...
- Page 5 YOWIE USER MANUAL • Fully erect enclosed segmented poles • Locate the two roof eyelets within the annex located on either side of annex entry (Fig 13), insert the spigot end of pole through the eyelet (Fig 14) • Repeat other side. Adjust telescopic poles to taut annex - Fig 15 Fig.13...
- Page 6 YOWIE USER MANUAL Pack up / Folding...
- Page 7 YOWIE USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.
