Summary of Contents for 23zero SABER

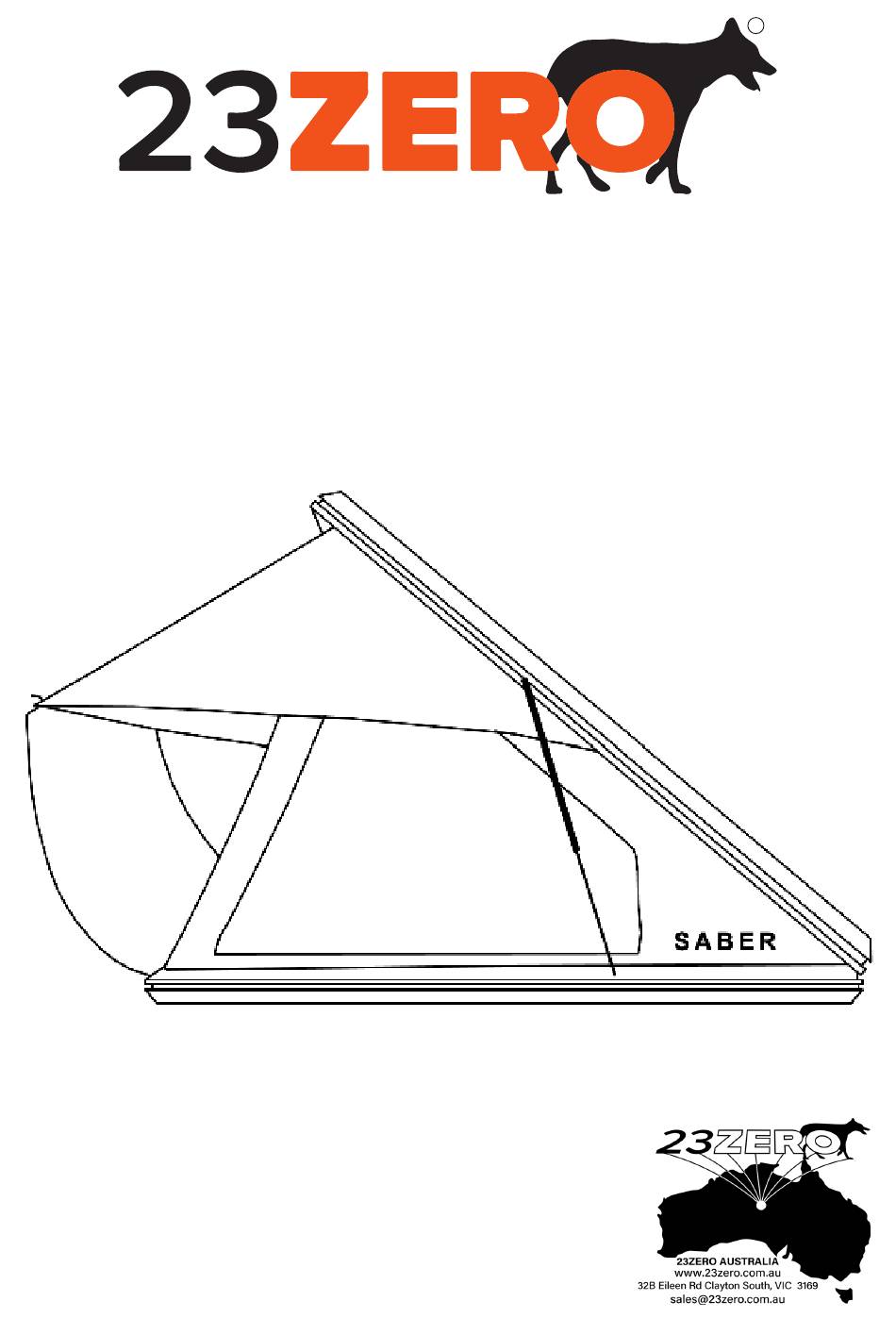

- Page 1 SABER USER MANUAL...

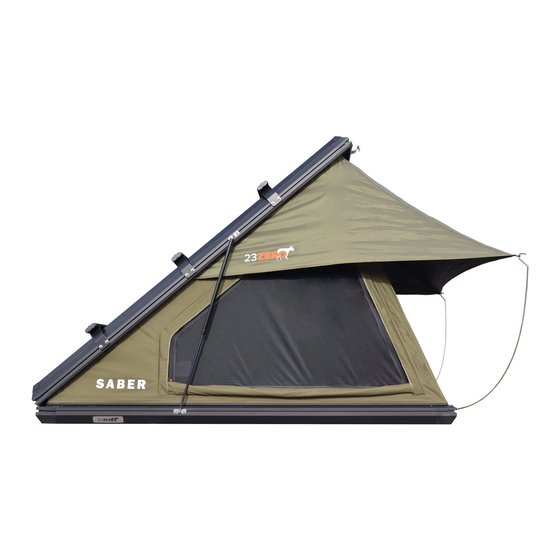

- Page 2 Congratulations on the purchase of 23ZERO’s SABER Hardshell Roof Top Tent. We strive to provide you with the ultimate camping experience. The SABER Tent mounts directly to a roof rack or aftermarket roof bars. It opens and is fully setup in seconds. As well as our innovative LST fabric, this hardshell tent is made with durable materials and high-quality fabrics that provide excellent water and wind protection.
- Page 3 SABER USER MANUAL Safety & Warnings Improper installation or use of the Saber roof top tent may result in serious injury or death. Follow these installation instructions carefully to ensure proper installation to vehicle and safe use of the roof top tent.
- Page 4 SABER USER MANUAL Hardware & Accessories The Saber Hardshell roof top tent includes a mounting kit with everything required to mount the roof top tent to most roof racks. Note: Some platform style roof racks have platforms which are wider than the supplied mounting plate.
- Page 5 The pre fitted mounting rails have 2 channels facing downward, either channel can be used to mount the Saber roof top tent to the roof rack. Slide 4 x 55mm M8 bolts into either rail. Position these so there are 2 bolts toward the front of the tent and 2 bolts toward the rear of the tent on each rail.
- Page 6 Out of the box, some hardware must be fitted to the Saber tent. Hinges, gas struts and locks are all pre fitted. Hardware is fitted to the Saber via the channels on the edges of the roof lid and baseboard. Insert 1 x square slide nut per hex bolt in the channel and slide to the required position.
- Page 7 Roof bars The Saber roof top tent has 3 x optional roof bars included. These are fitted to the side channels on the roof lid. Slide the heads of 2 x 20mm M8 bolts into the channel of the roof lid near desired location.
- Page 8 SABER USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°. NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle.
- Page 9 Caution: Safety pole must be fitted at all times when Saber roof top tent is open and in use. Closing & Storage Sleeping bags or blankets can be stored in the Saber if laid out flat. If tent has the 100mm inner spring mattress fitted, thicker objects such as pillows are not recommended to be stowed inside.
- Page 10 SABER USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.
- Page 11 SABER USER MANUAL Mounting rail dimensions The diagrams and dimensions below will assist in preparing roof racks and roof bars for fitment.
