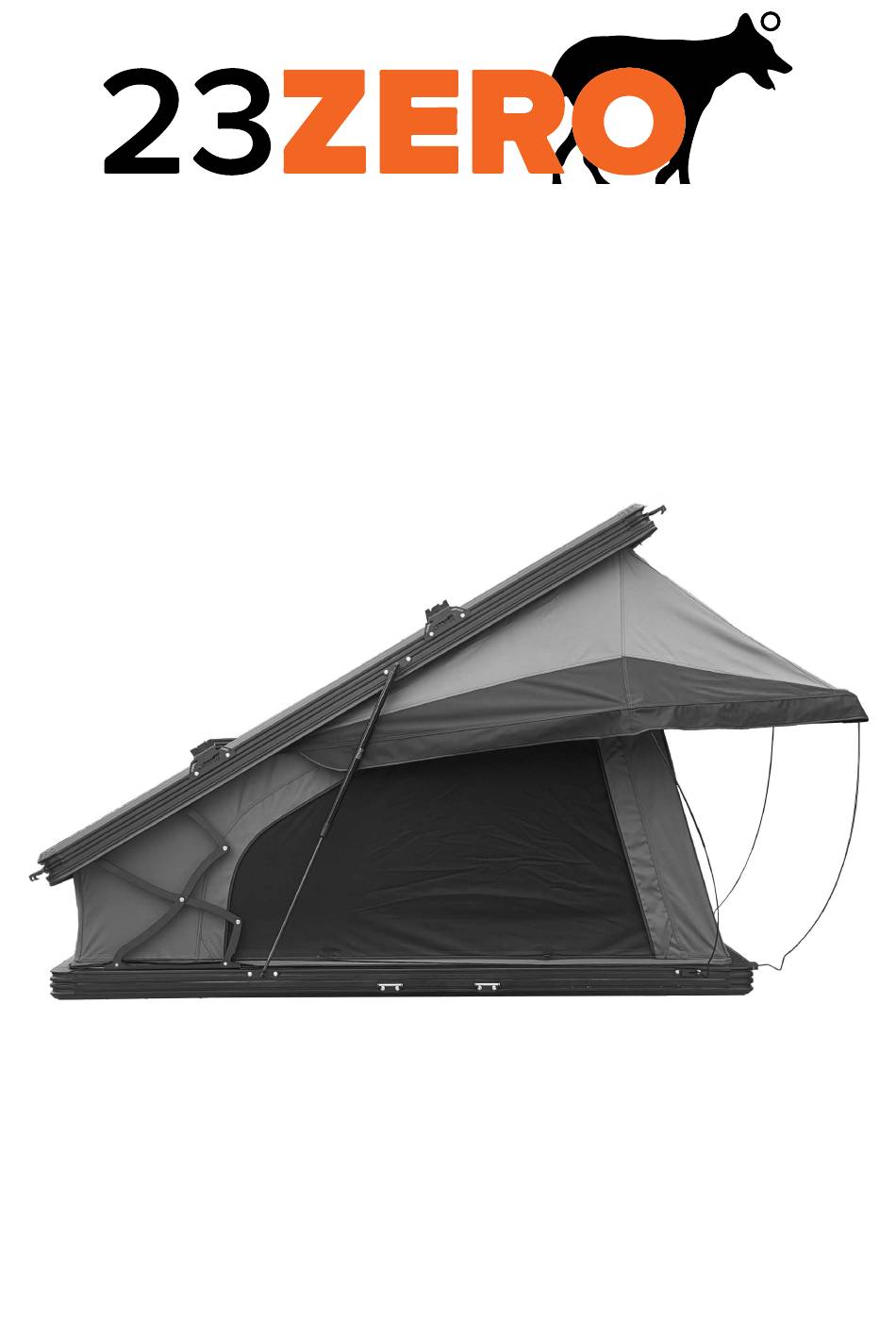

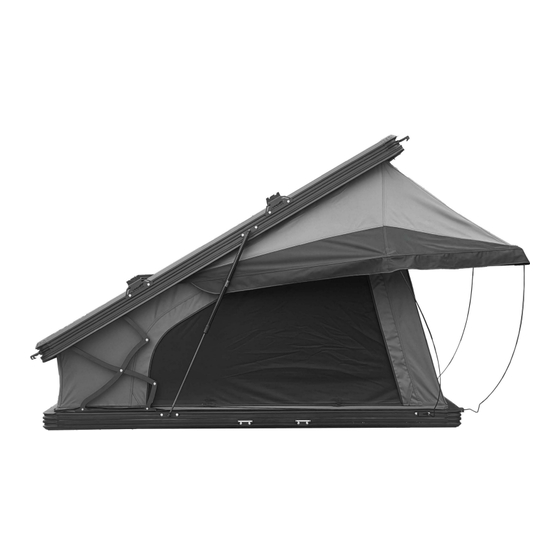

- Page 1 Kabari XL & 3.0 USER MANUAL *Images are intended for illustration purposes. Images may vary from actual product. All instructions will be applicable.
-
Page 2: Table Of Contents
KABARI SERIES USER MANUAL Thank you for purchasing a 23ZERO Roof Top Tent Congratulations on the purchase of a 23Zero Kabari Series Hardshell Roof Top Tent. We strive to provide you with the ultimate camping experience. The Kabari Hardshell Roof Top Tent mounts directly to a roof rack or aftermarket roof bars. -
Page 3: Safety & Warnings
Note: Alterations and / or inclusions such as roof racks and roof top tents applied to the vehicle roof may affect vehicle handling and characteristics. The manufacturer (23ZERO) disclaims all responsibility in case of accidents and / or damage due to installation of a roof top tent to an underrated roof rack, improper use, improper maintenance or checking the tightness of the brackets regarding the installation of the roof rack system. -
Page 4: Hardware & Accessories
KABARI SERIES USER MANUAL Hardware & Accessories The Kabari Series Hardshell Roof Top Tent includes a mounting kit with everything required to mount the roof top tent to most roof racks. Note: Hardware may differ from illustrated depending on model. 45mm M8 bolts, nuts &... -
Page 5: Fitting To Roof Rack
KABARI SERIES USER MANUAL Fitting to roof rack The Kabari Series Hardshell Roof Top Tent must be fitted to roof racks with hinges facing forward. Clamp 4 corners using 8 x M8 bolts, 8 slide plates & 4 x mounting saddles supplied - see below. - Page 6 KABARI SERIES USER MANUAL Fitting to roof rack continued. Inspect the position of the roof top tent to ensure it will open in the desired position. Note: It is recommended the rear of the tent is flush with the back of the vehicle to allow correct ladder angle.
-
Page 7: Roof Bars
KABARI SERIES USER MANUAL Roof bars Note: The roof bars supplied with the Kabari Series Hardshell Roof Top Tent are not designed to carry significant loads. A maximum of 45 lbs can be carried on top of the Kabari Series Hardshell Roof Top Tent providing this weight is spread evenly amongst the 2 bars. When adding additional weight to the top of the tent, consideration must be given to the overall weight rating capacity of your vehicle’s roof and roof rack. -
Page 8: Ladder Adjustment
KABARI SERIES USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°. NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle. -
Page 9: Opening & Set Up
KABARI SERIES USER MANUAL Opening & Set up Once the Kabari Series Hardshell Roof Top Tent is fixed securely to the vehicle’s roof rack and the ladder is locked and angled correctly, climb the ladder, release the locks on the front and rear of tent and lift until the gas struts take over. Once open, lower the perimeter shock cord and hook this to both front corners of the baseboard. -
Page 10: Warranty
KABARI SERIES USER MANUAL Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and material defects. The warranty does not...
