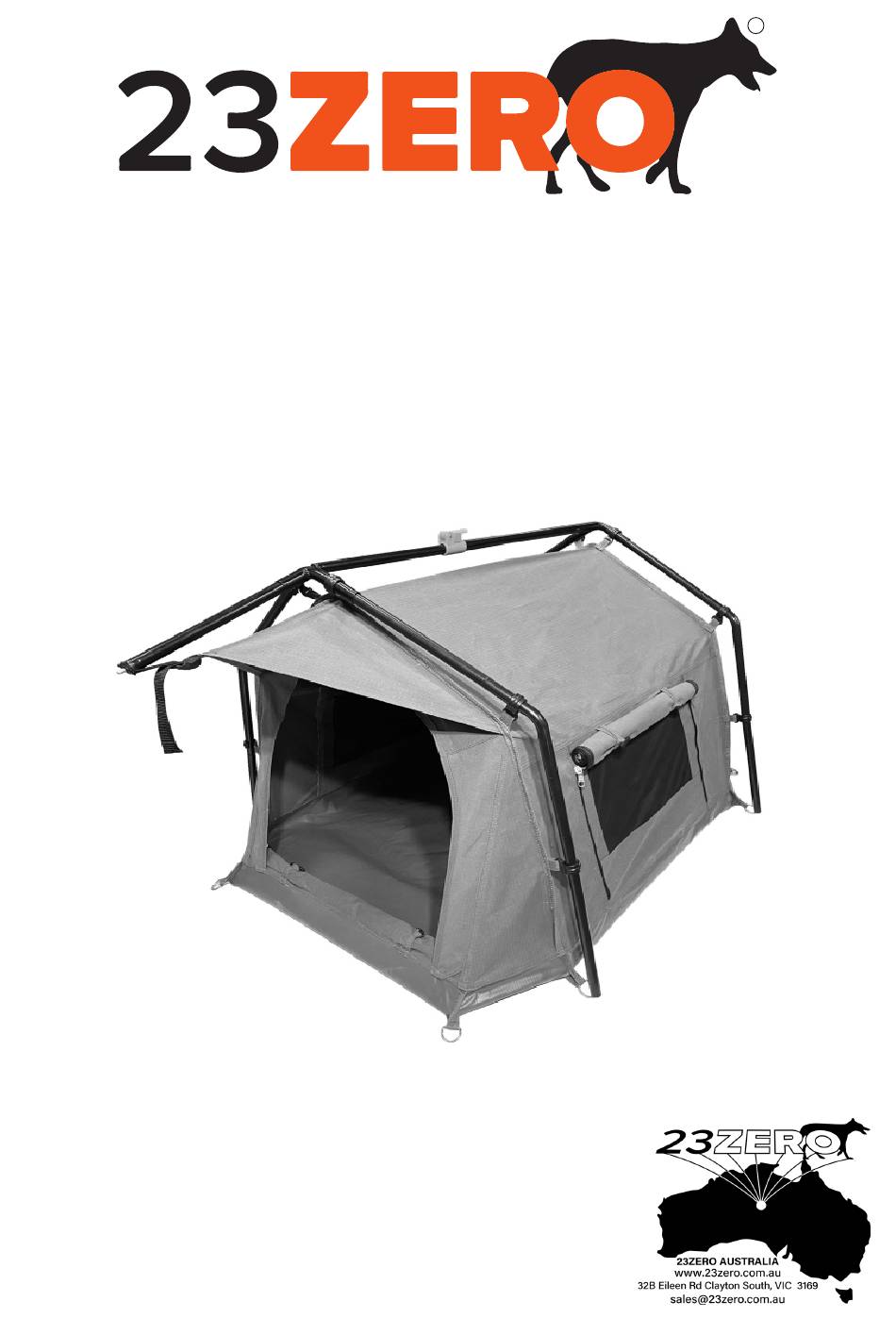

  • Page 1 WOOF-DEN USER MANUAL...
  • Page 2 WOOF-DEN SETUP MANUAL Lay out WOOF-DEN and peg out Lay out poles and identify outer corners Assemble body poles x 2...
  • Page 3 WOOF-DEN SETUP MANUAL Identify front of swag (canopy end). Insert Pole A over pin & rings and attach top 2 clips only. Repeat for pole B rear of swag Insert ridgepole in holes provided on body poles and tighten using trigger lock.
  • Page 4 WOOF-DEN SETUP MANUAL Insert ridgepole extender into pole A Attach canopy strap to ridgepole extender and tension. WARNING: Do not over tension as this will cause pole failure Set up complete...
  • Page 5 WOOF-DEN SETUP MANUAL PACK DOWN & ROLLING Repeat previous steps in reverse to pack down WOOF-DEN Place poles in pole bag, position on Lay WOOF-DEN flat and fold in half edge of fold. When fully rolled, WOOF-DEN shoult fit Roll WOOF-DEN...
