Summary of Contents for 23zero Armadillo A2

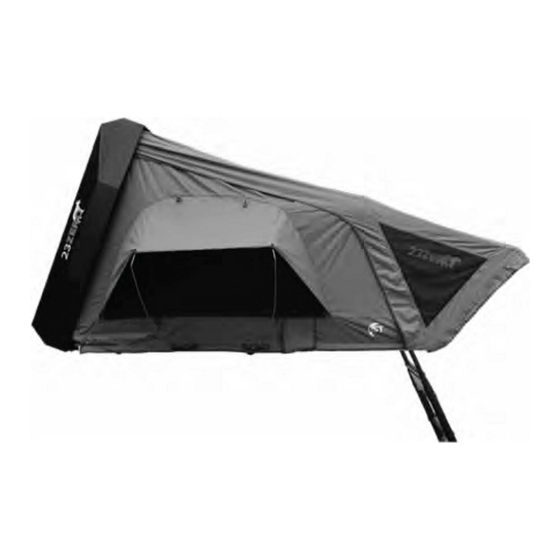

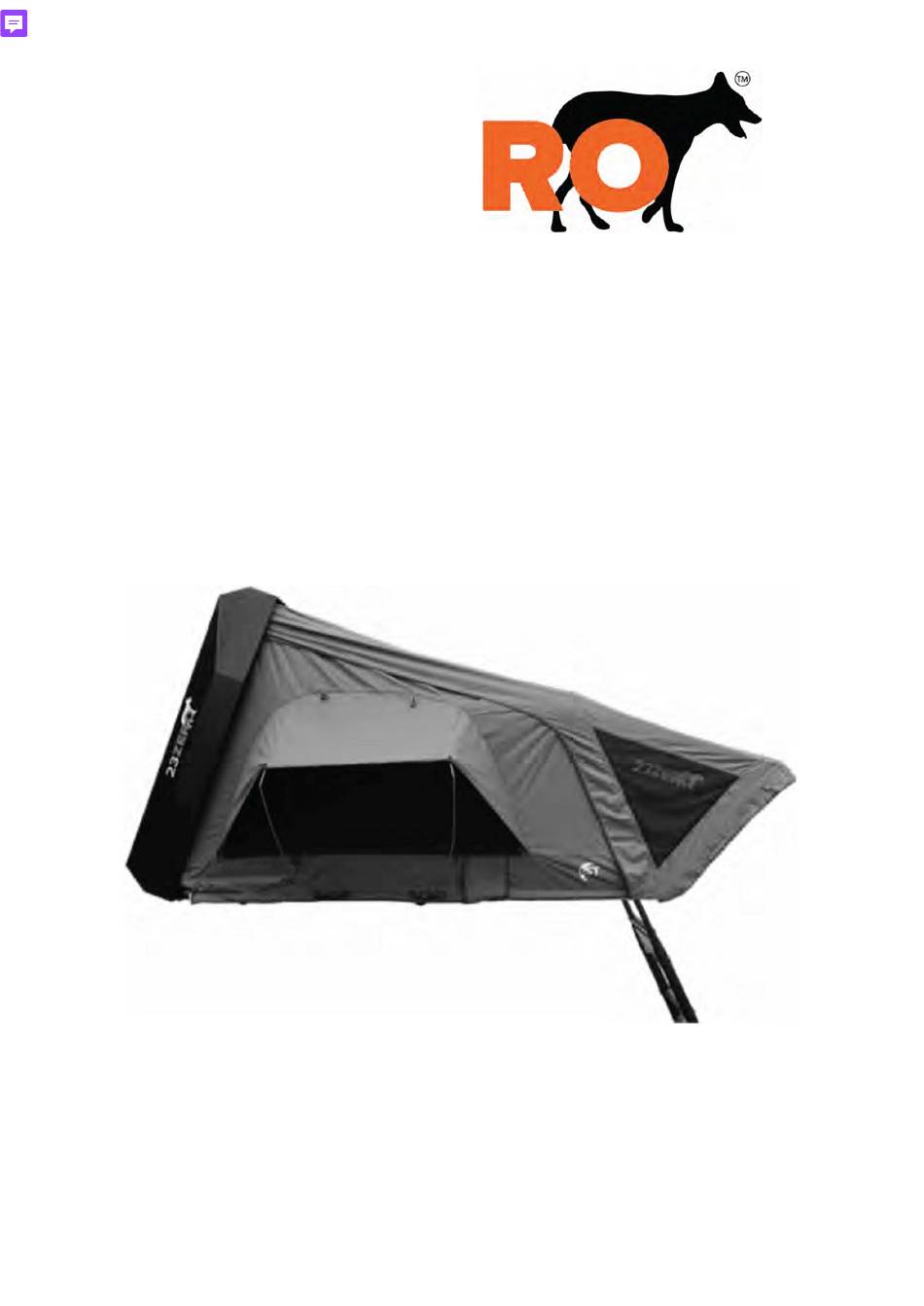

- Page 1 23ZE Armadillo A2/A3 ALUMINIUM HARDSHELL ROOF TOP TENT USER MANUAL...
-
Page 2: Table Of Contents
It is advised to remove and clean these during first set up. PLEASE READ ALL INSTRUCTIONS PRIOR TO INSTALLING IMPORTANT Before installing your 23Zero Roof Top Tent please ensure you are aware and understand the following: • Your vehicle's maximum roof load rating. -
Page 3: Safety & Warnings
Note: Alterations and / or inclusions such as roof racks and roof top tents applied to the vehicle roof may affect vehicle handling and characteristics. The manufacturer (23ZERO) disclaims all responsibility in case of accidents and I or damage due to installation of a roof top tent to an underrated roof rack, improper use, improper maintenance or checking the tightness of the brackets regarding the installation of the roof rack system. -
Page 4: Hardware & Accessories
ARMADILLO A USER MANUAL Hardware & Accessories The Armadillo Hardshell roof top tent includes a mounting kit with everything re q uired to mount the roof top tent to most roof or tub racks. See included accessories below. S t.ay pole$ - Slack x 4 SQy pote1 - Red ,c 2 Mounllnt pt.itr t4 45mm M8 bofts &... -
Page 5: Fitting To Roof Rack
ARMADILLO A USER MANUAL Fitting to roof rack The Armadillo roof top tent can be fitted in either direction (opening to to the left or the right ) depending on your purchase. Clamp 4 corners using 8 x 45mm M8 Bolts with slides &... -
Page 6: Ladder Adjustment
23ZE ARMADILLO A USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams ° ° below. Recommended ladder placement is a 4:1 ratio or approx. 70 to 75 NOTE: Under ho circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle. -
Page 7: Opening & Set Up
23ZE � ARMADILLO A USER MANUAL Opening & Set up 1. To open the Armadillo, release the hook and loop safety straps and undo the latches. 2. Before first use, fit handle. Locate rubber washers and place over allocated holes between hook & loop safety straps. Insert hex bolts through handle and feed through lid. - Page 8 23ZE � ARMADILLO A USER MANUAL Opening & Set up 4. Release pack up assisting shock cords and hook both onto underside of baseboard. 5. Release ladder strap and extend ladder fully. Using ladder as a lever, pull down & out to unfold inner baseboard. 6.
- Page 9 23ZE ARMADILLO A USER MANUAL Opening & Set up 8. Secure bottom of canopy to bottom of baseboard via hook & loop strips. Repeat both sides. 9. Locate window stay pole points on baseboard and insert BLACK window stay poles. Flex pole and feed black hook end through eyelet on window canopy.
-
Page 10: Closing & Pack Up
ARMADILLO A USER MANUAL Closing & Pack up & It is important not to leave bedding items like sleeping bags or mattress toppers on top of the mattress when closing the tent. Ensuro tho loddor ban bonrd nnd roof hoop aro rostlng flat 011 man,oss at shown NO bedding lO b6 p!AOOd... - Page 11 23ZE ARMADILLO A USER MANUAL Closing & Pack up Keep window canvas partially open to avoid canvas ballooning when folding Recommended: 4. IMPORTANT Side window zip slider position is very important. Ensure these as positioned as per pie below before foldinQ tent. Repeat both sides.
- Page 12 23ZE ARMADILLO A USER MANUAL Closing & Pack up 5. Retract ladder and secure with strap. Lift shock cords and place around centre of tent ensuring all canvas is tucked inward and not flapping on sides. Lower lid using attached strap. 6.
- Page 13 23ZE ARMADILLO A USER MANUAL Closing & Pack up 6. Once closed, feed hook & loop strap through ring and secure. Attach lower triangular section of over centre latch to baseboard hook and lift handle to lock. IMPORTANT: Armadillo A lid must be closed securely against latch hooks on baseboard. TIP: Over centre latches can be tension adjusted by screwing lower triangular section clockwise or Anti-clockwise.
-
Page 14: Warranty
ARMADILLO A USER MANUAL Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and material defects. The warranty does not... -
Page 15: Mounting Rail Dimensions
ARMADILLO A USER MANUAL Mounting rail dimensions The diagrams and dimensions below will assist in preparing roof racks and roof bars for fitment. Armadillo A2 62.2" 48.8" 35.4" __,--�\ �� 11.8" � � 31.5" 8.66" 8.66" ______.. , y 2"... - Page 16 23ZE ARMADILLO A USER MANUAL Mounting rail dimensions The diagrams and dimensions below will assist in preparing roof racks and roof bars for fitment. Armadillo A3 77.9" 55" 36.6" 11.8" I· • I (r1v 31.5" 11.8" 11.8" 2" l£1 Mounting rail .86"...
- Page 17 23ZERO www.23zero.com 2195 S Presidents Drive Suite B. West Vally City Utah 84120 Info@23zero.com...
